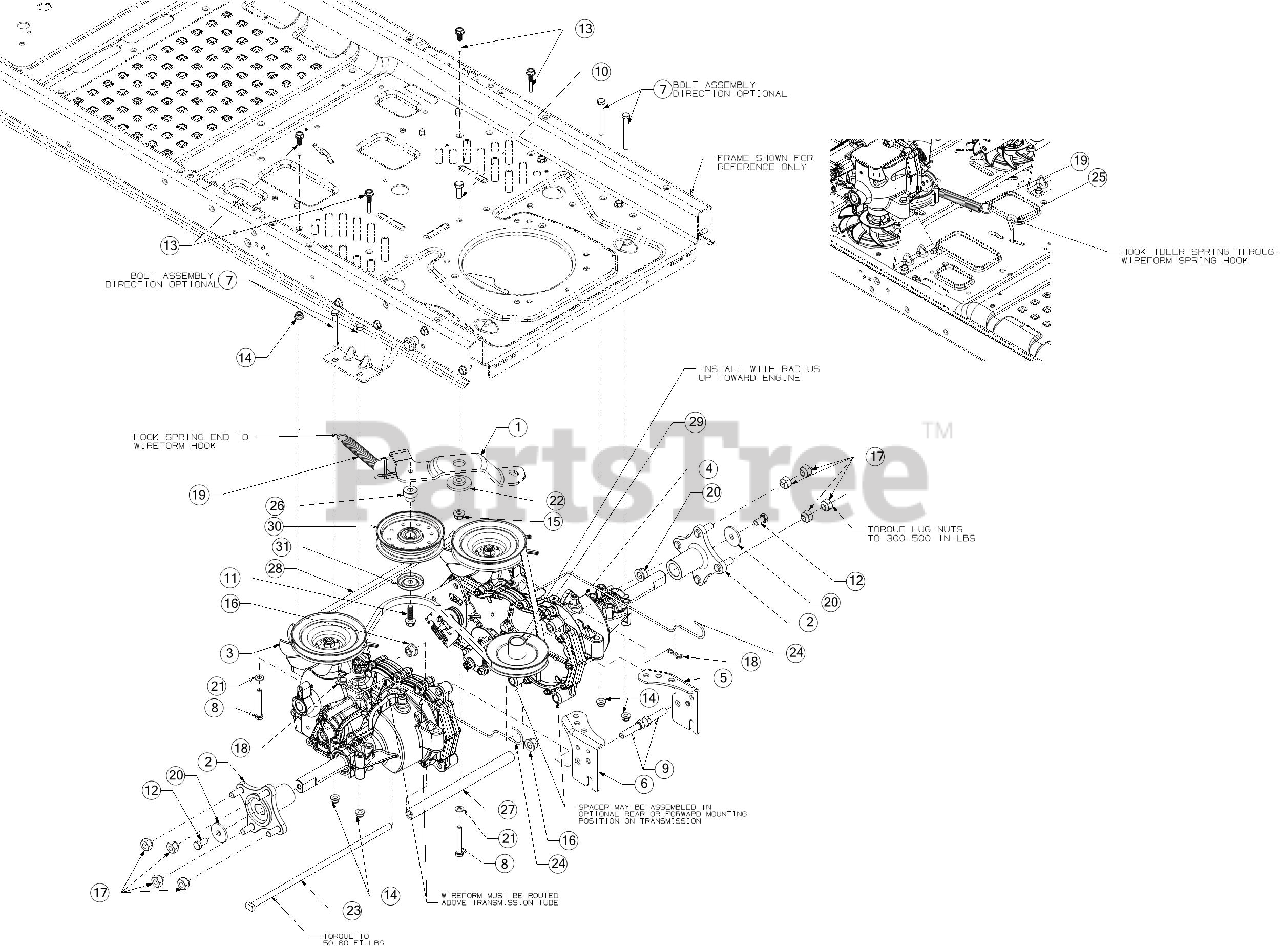

RZT-S50 (17ARCBDQ010) - Cub Cadet 50" RZT Zero-Turn Mower (2016) Drive Parts Diagram

50" RZT Zero-Turn Mower

Drive Parts Diagram

  • Title
1

Cub Cadet 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$42.99

$

In Stock, only 2 left!

0

2

Cub Cadet 710-0852

STUD 7/16-14 X 1.6

Note: (Not Shown)

$6.49

$

In Stock, only 4 left!

0

2

Cub Cadet 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

In Stock, only 1 left!

0

3

Cub Cadet 918-06996

HYDRO TRANSMISSION ASSEMBLY (LH)

$1467.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-06997

HYDRO TRANSMISSION ASSEMBLY (RH)

$1467.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08614A-0637

TRANSMISSION MOUNTING BRACKET (RH)

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08615A-0637

TRANSMISSION MOUNTING BRACKET (LH)

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0176

HEX SCREW 5/16-18 X 2.75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0395

HEX SCREW 5/16-18 X 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-04092

SCREW 7/16-20 X 1.75 GR 5

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0514

SCREW 3/8-16 X 1 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3119

SCREW 3/8-16 X .75 GR 5

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet 711-06112

BELT KEEPER ROD .25 X 1.585

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 5

0

18

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet 732-05388

EXTENSION SPRING .75 DIA X 5.87 RZT/F
(Superseded to 732-05559)

$14.99

$

In Stock, only 1 left!

0

20

Cub Cadet 936-0227

FLAT WASHER .390x1.500x.134
(Superseded to 736-0227)

$

$

Not available

21

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

22

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-04192B

SUPPORT TUBE ROD

$21.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 747-05657A

HYDRO BYPASS ROD
(Superseded to 747-05657B)

$14.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 747-06074

IDLER SPRING HOOK

$23.99

$

In Stock, only 2 left!

0

26

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 750-04561A

SUPPORT TUBE

$26.99

$

In Stock, only 1 left!

0

28

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A X 67

$50.99

$

In Stock, only 2 left!

0

29

Cub Cadet 756-04494A

TRANSMISSION PULLEY
(Superseded to 756-04494C)

$35.99

$

In Stock, Qty 17

0

30

Cub Cadet 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

31

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+
