RZT-S46 (17WFCBDT056) - Cub Cadet 46" RZT Zero-Turn Mower (2013) Operators Platform Parts Diagram

46" RZT Zero-Turn Mower

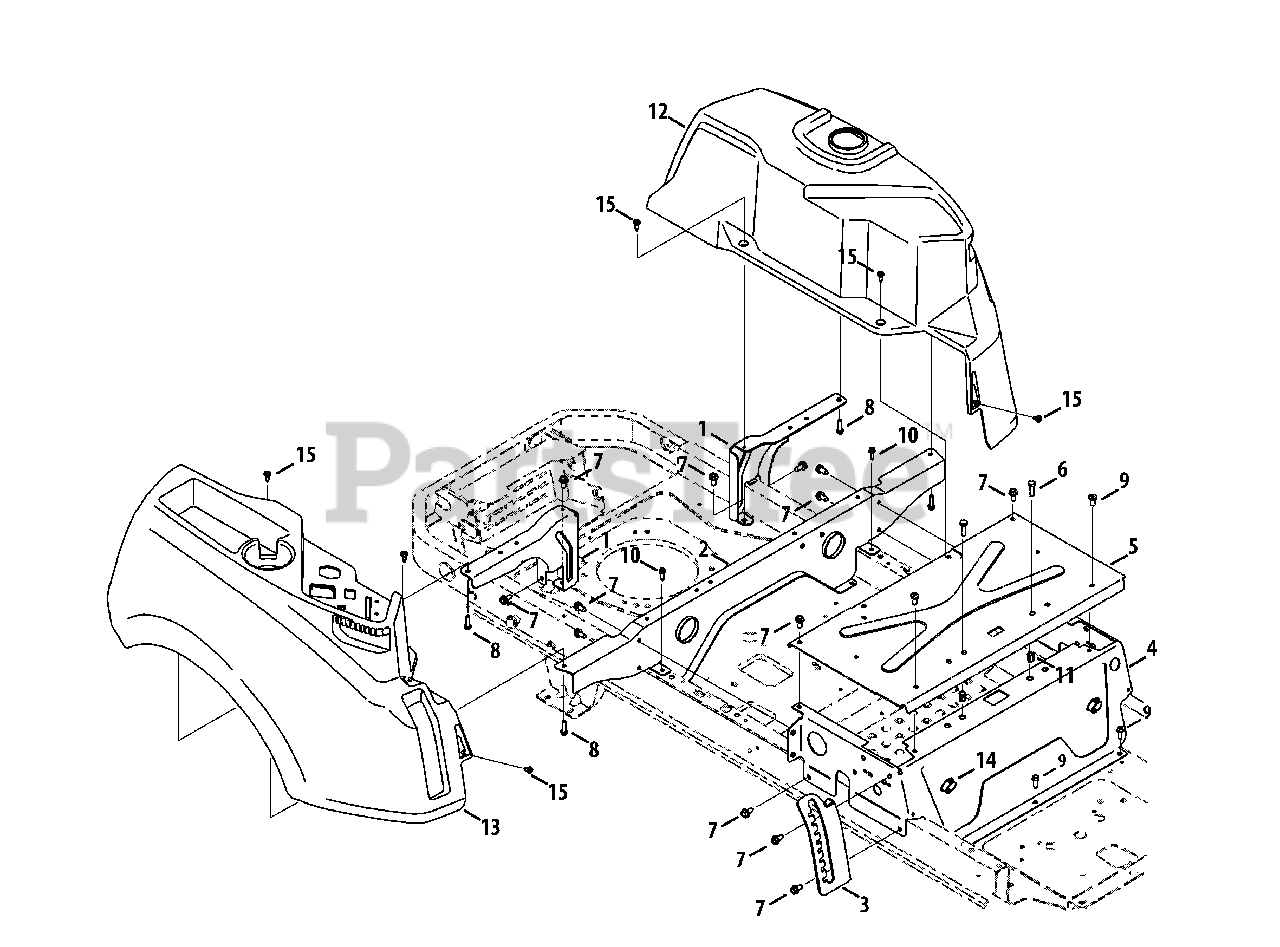

Operators Platform Parts Diagram

  • Title

1

Cub Cadet 703-08720A-4021

Rear Tank Bracket
(Superseded to 703-08720C-5017)

$32.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08722-4021

Rear Seatbox Brace

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08762B

Height Index Bracket
(Superseded to 703-08762C)

$16.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-09175-4021

Seat Frame

$81.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09186-4021

Seatbox Plate
(Superseded to 703-09186J-4021)

$48.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

11

Cub Cadet 728-05012

Nut, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 931-08687A

LJ Console
(Superseded to 931-08687B)

$116.99

$

In Stock, only 1 left!

0

13

Cub Cadet 931-08771A

RH Console
(Superseded to 931-13513)

$99.99

$

In Stock, Qty 5

0

14

Cub Cadet 731-09477

Plastic Plug

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0
