RZT-S46 (17ARCBDN010) - Cub Cadet 46" RZT Zero-Turn Mower (2015) Frame & Electrical Parts Diagram

46" RZT Zero-Turn Mower

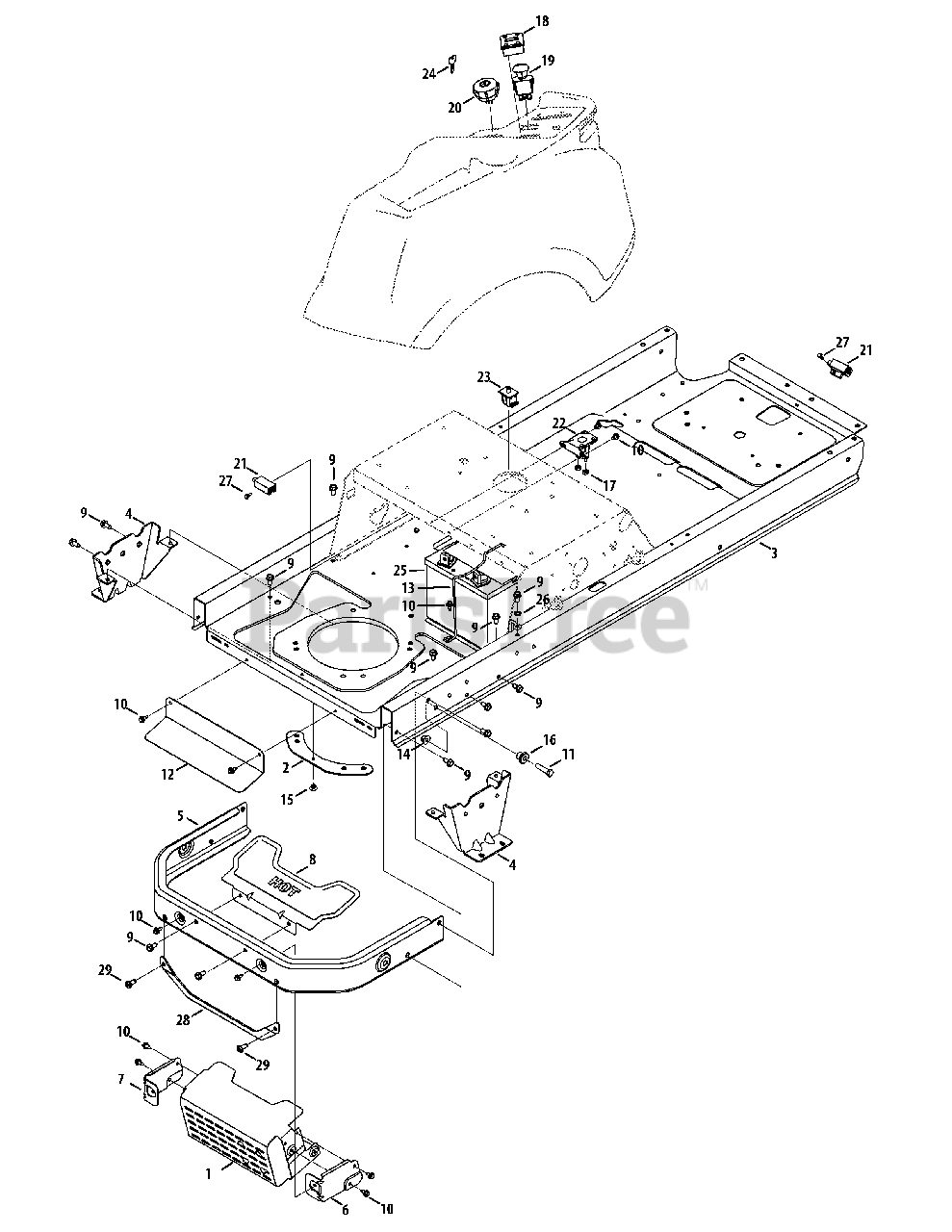

Frame & Electrical Parts Diagram

  • Title

1

Cub Cadet 603-05156A-0637

Muffler Shield Assembly

$94.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-05383B-0637

Retainer Plate

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09578B-0637

Frame Assembly
(Superseded to 703-09578K-0637)

$720.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08555-0637

Transmission Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08558B-4021

Rear Bumper

$51.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08671A-0637

Muffler Mounting Shield Bracket, RH
(Superseded to 703-08671B-0637)

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08695-0637

Muffler Mounting Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09083-0637

Muffler Shield

$31.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 703-09195

Lower Heat Shield

$18.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 747-05685-0637

Battery Rod

$18.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-04072A

Clip, .250 Dia. x .500 LG

$3.99

$

In Stock, Qty 13

0

16

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 925-06221

Hour Meter, Bluetooth

$207.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 925-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 6

0

20

Cub Cadet 725-06102A

Key Switch
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 20+

0

21

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 8

0

22

Cub Cadet 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

23

Cub Cadet 925-05013

Seat Switch

$31.99

$

In Stock, only 3 left!

0

24

Cub Cadet 625-05000

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

25

Cub Cadet 925-1707D

Battery

$

$

Not available

26

Cub Cadet 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

28

Cub Cadet 703-09884-4021

Rear Muffler Shield Bracket
(Superseded to 703-09884-0637)

$26.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-06096

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 925-06074A

Harness Assembly
(Superseded to 925-06074B)

Note: (Not shown)

$201.99

$

Usually ships in 3-6 days

0
