RZT-S46 (17AFCBDT056) - Cub Cadet 46" RZT Zero-Turn Mower (2013) Mower Deck Parts Diagram

46" RZT Zero-Turn Mower

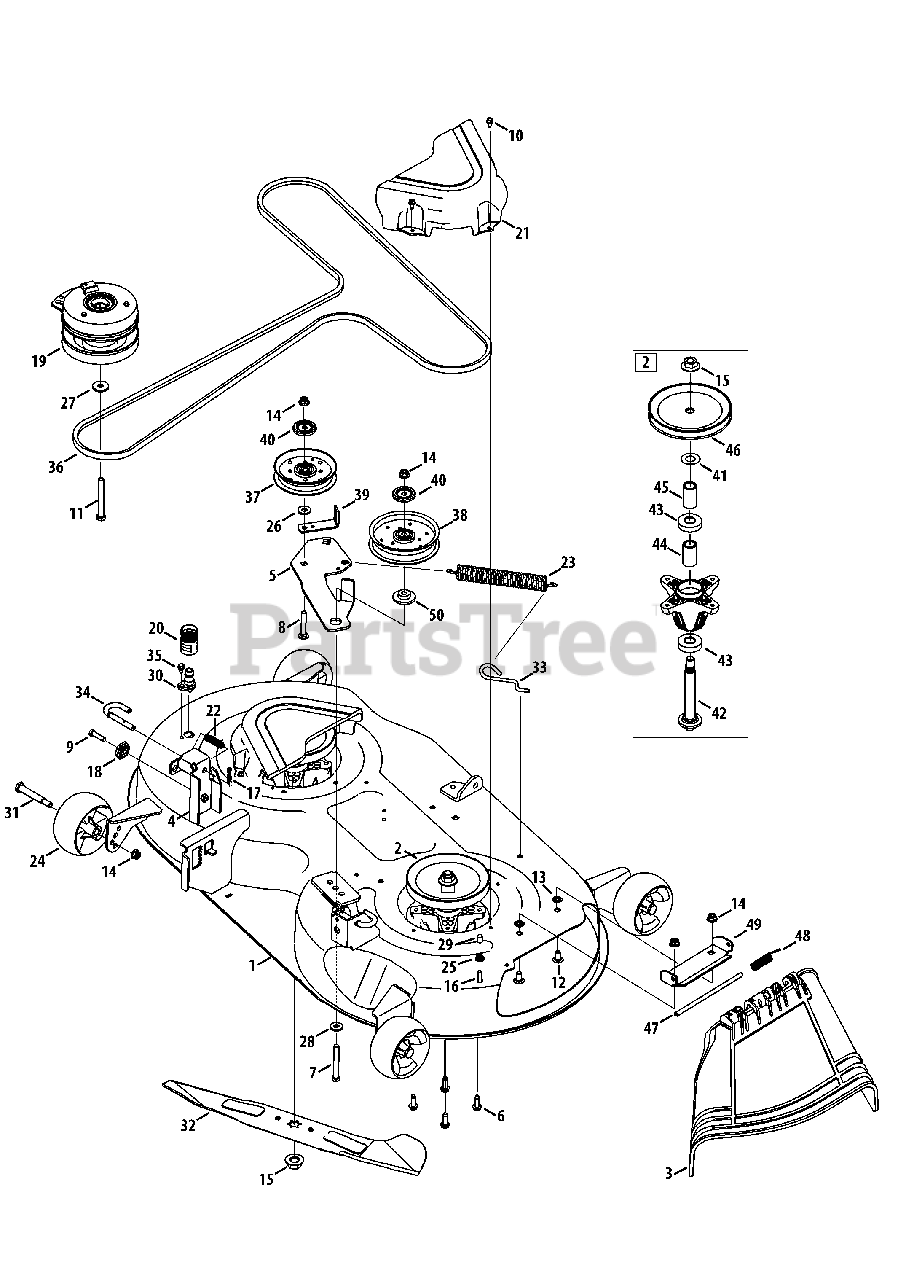

Mower Deck Parts Diagram

  • Title

$896.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-05078

Spindle Assembly
(Superseded to 918-05078A)

$155.99

$

In Stock, only 3 left!

0

3

Cub Cadet 631-04288

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

Cub Cadet 683-05031-4021

Deck Lift Bracket

$

$

Not available

5

$28.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3085

Hex Cap Screw, 3/8-16 x 3.50

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05376

Carriage Screw, 3/8-16 x 1.75

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

10

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3157A

Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

18

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

19

Cub Cadet 917-05122

Electric PTO Clutch
(Superseded to 917-05122A)

$515.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

21

Cub Cadet 731-08698

Belt Cover
(Superseded to 731-08698B)

$21.99

$

In Stock, only 2 left!

0

22

Cub Cadet 732-04652

Compression Spring, .535 x 1.751

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 732-04927

Extension Spring, 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

24

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

28

Cub Cadet 736-3052

Flat Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

Cub Cadet 942-04244A

Blade, 2 in 1, 23.25
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

34

Cub Cadet 747-06082

Deck Hanger Rod

$10.99

$

In Stock, Qty 7

0

35

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

$69.99

$

In Stock, only 1 left!

0

37

Cub Cadet 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

38

Cub Cadet 756-04511

Idler Pulley, 5.00 Dia.
(Superseded to 756-04511B)

$53.99

$

In Stock, Qty 20+

0

39

Cub Cadet 783-06368A-0637

Bracket Belt Guard

$21.99

$

In Stock, Qty 20+

0

40

Cub Cadet 783-07236

Pulley Cap

$5.49

$

In Stock, only 3 left!

0

41

Cub Cadet 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 938-1128

Spindle Shaft

$46.99

$

In Stock, Qty 13

0

43

Cub Cadet 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

44

Cub Cadet 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

45

Cub Cadet 750-1343

Spacer, .8 x 1.1 x 2.26

$6.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-04356

Deck Pulley

$37.99

$

In Stock, only 1 left!

0

47

$8.99

$

In Stock, Qty 7

0

48

Cub Cadet 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

49

Cub Cadet 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

50

Cub Cadet 738-05013A

Shoulder Spacer

$6.49

$

In Stock, Qty 9

0
