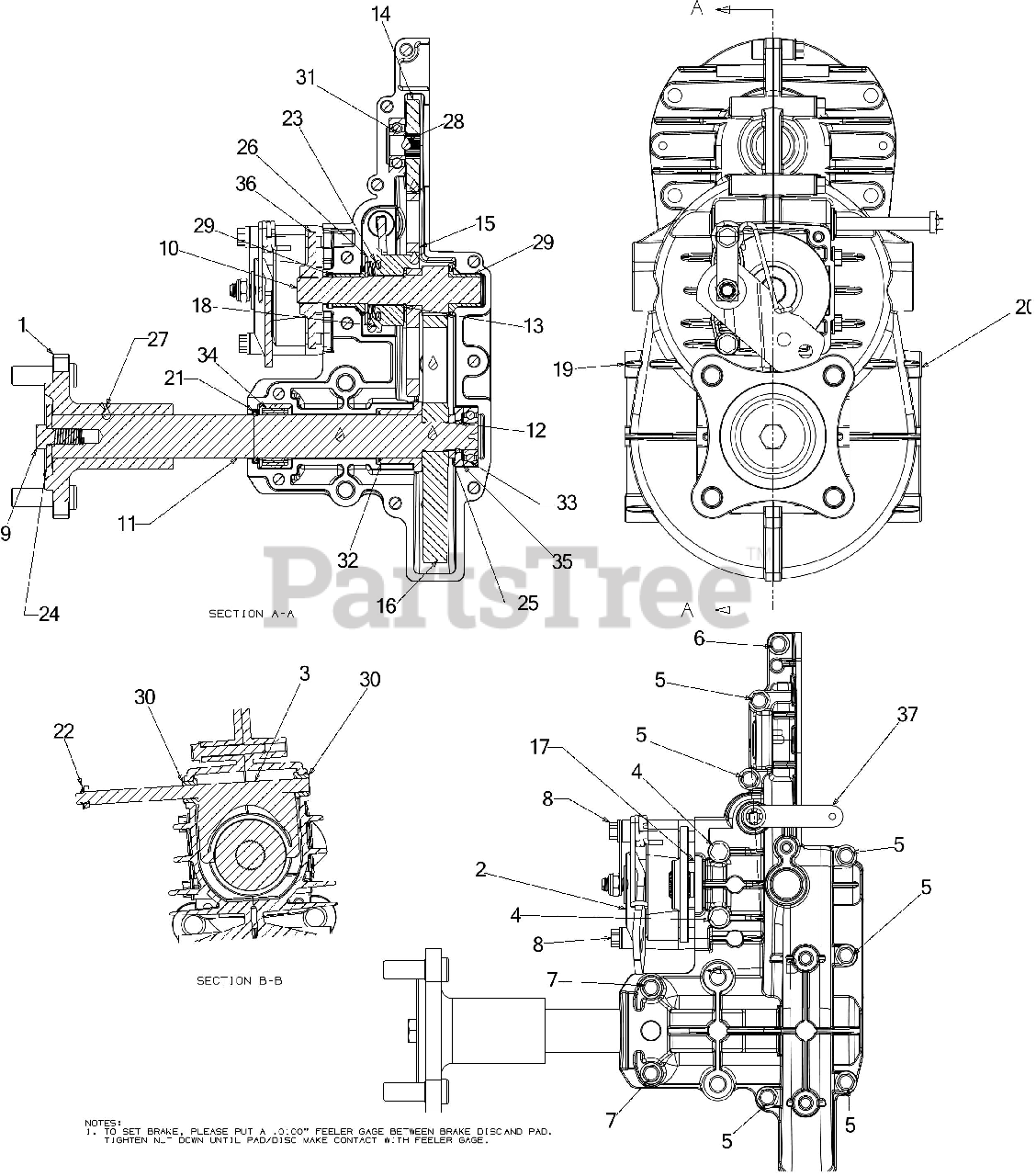

  • Title

Cub Cadet 918-05081

TRANSMISSION ASSEMBLY (LH)

Note: (Complete Unit, Includes Parts Listed Below)

$636.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

Note: (Not Shown)

$6.49

$

In Stock, only 4 left!

0

1

Cub Cadet 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 917-0678

BRAKE PUCK

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 717-0772B

ACTUATING ARM

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 718-0150

ANTI ROTATION BRACKET

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-0371

FLAT WASHER

Note: (Not Shown)

$4.49

$

In Stock, only 3 left!

0

2

Cub Cadet 912-0273

NUT

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 917-0678

BRAKE PUCK

Note: (Not Shown)

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 917-0682

PUCK PLATE

Note: (Not Shown)

$9.99

$

In Stock, Qty 9

0

2

Cub Cadet 932-0743

TORSION SPRING

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 941-0343

ACTUATING PIN
(Superseded to 741-0343)

Note: (Not Shown)

$

$

Not available

2

Cub Cadet 961-0006

BRAKE ASSEMBLY (LH)

$46.99

$

In Stock, only 1 left!

0

2

Cub Cadet 961-0198A

BRAKE YOKE
(Superseded to 961-0198B)

Note: (Not Shown)

$25.99

$

In Stock, only 1 left!

0

3

Cub Cadet 707-04806

NEUTRAL DROP ACTUATOR

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04523

SCREW 1/4-20 x 2

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0778

SCREW 1/4-20 x 1.50"

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet 710-0788

SCREW 1/4-20 x 1.00

$7.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

8

Cub Cadet 710-1206

SCREW 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

9

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 911-05689

OUTPUT SHAFT 11T

$63.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-06114

AXLE SHAFT

$

$

Not available

12

Cub Cadet 916-0131

SNAP RING

$7.49

$

In Stock, only 1 left!

0

13

Cub Cadet 716-04056

RETAINING RING

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-04295

SPUR GEAR:22T

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 717-04296

SPUR GEAR:53T:INPUT

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-04297

SPUR GEAR 61T

$73.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 718-04166

U-TURN CLUTCH COLLAR

$16.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 919-04331A

AXLE HOUSING

$54.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 919-04333A

AXLE HOUSING

$54.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 721-04609

AXLE SEAL 1.0X1.25X.125

$

$

Not available

22

Cub Cadet 726-04062

PUSH NUT:1/4 x 17/32

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04366

SPRING-1.00 x 1.375 X.400

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 936-0227

FLAT WASHER .390x1.500x.134
(Superseded to 736-0227)

$

$

Not available

25

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, only 1 left!

0

26

Cub Cadet 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, only 2 left!

0

27

n/a

ANTI-SIEZE (NOT SERVICEABLE)

$

$

Not available

28

n/a

GREASE (NOT SERVICEABLE)

$

$

Not available

29

Cub Cadet 941-0336

FLANGE BEARING

$11.99

$

In Stock, only 4 left!

0

30

Cub Cadet 741-04170

SLOTTED FLANGE BEARING

$2.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 741-04182

SEALED BALL BEARING

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-0476A

FLANGE BEARING

$9.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 941-05021

BALL BEARING

$9.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 941-05028

NEEDLE BEARING

$

$

Not available

35

Cub Cadet 941-05032

BEARING

$8.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 761-0202

BRAKE DISC

$15.99

$

In Stock, only 1 left!

0

37

Cub Cadet 783-05276

LEVER PLATE

$6.49

$

Usually ships in 3-6 days

0
