RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2016) Electrical Drive Parts Diagram

42" RZT Zero-Turn Mower, Electric

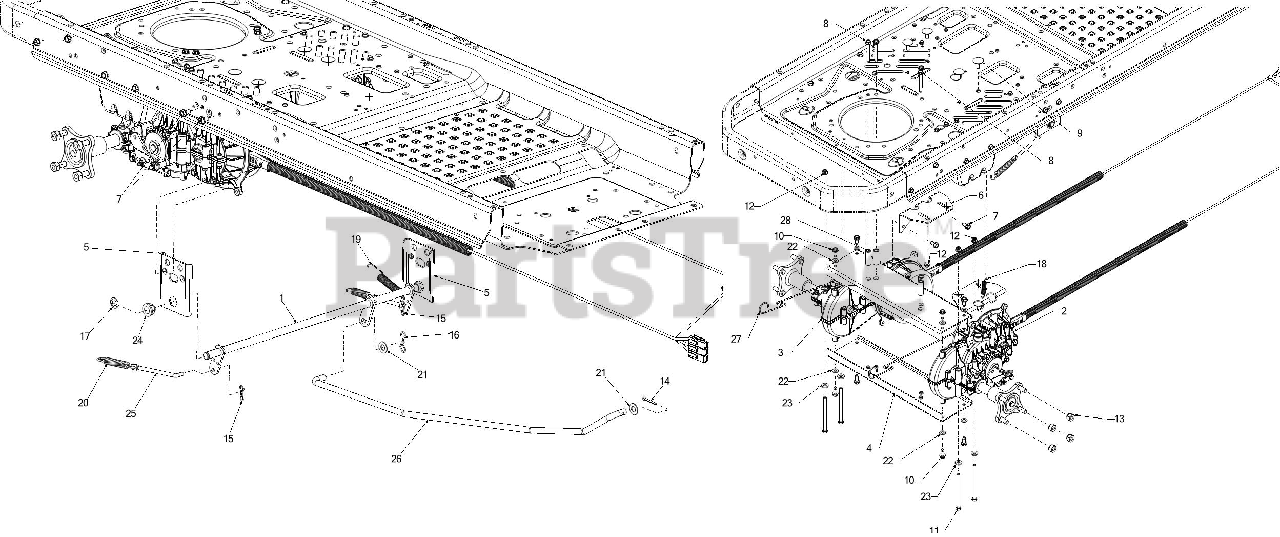

Electrical Drive Parts Diagram

  • Title

1

Cub Cadet 611-04234

BRAKE SHAFT ASSEMBLY

$47.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-05080

TRANSMISSION ASSEMBLY (RH)

Note: (See Transmission (RH) Page)

$636.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-05081

TRANSMISSION ASSEMBLY (LH)

Note: (See Transmission (RH) Page)

$636.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08706-0637

AXLE MOUTING BRACKET

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09726-4021

BRAKE SHAFT BRACKET

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09755-0637

MOTOR TORQ BRACKET

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05378

SCREW-5/16-18 x 2.5

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05478

SCREW 5/16-18 x 1.00

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1260A

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3195

SCREW 5/16-18 x 4.5 GR5

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 6

0

14

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 716-0106A

E-RING

$5.49

$

In Stock, only 2 left!

0

18

Cub Cadet 932-04262

EXTENSION SPRING

$9.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04587

EXTENSION SPRING .63 x 4.95

$7.49

$

In Stock, Qty 12

0

20

Cub Cadet 732-0716D

EXTENSION SPRING

$13.99

$

In Stock, only 1 left!

0

21

Cub Cadet 936-0272

FLAT WASHER .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

23

Cub Cadet 936-3008

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 941-0225

FLANGE BEARING

$7.49

$

In Stock, Qty 20+

0

25

Cub Cadet 747-05687

DROP AXLE BRAKE ROD

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-05688

FRONT BRAKE ROD

$45.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 747-05699

DROP AXLE DUMP ROD

$8.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 750-05632

SPACER .345X.625X1.798 E

$5.99

$

Usually ships in 3-6 days

0
