RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2016) Deck Lift Parts Diagram

42" RZT Zero-Turn Mower, Electric

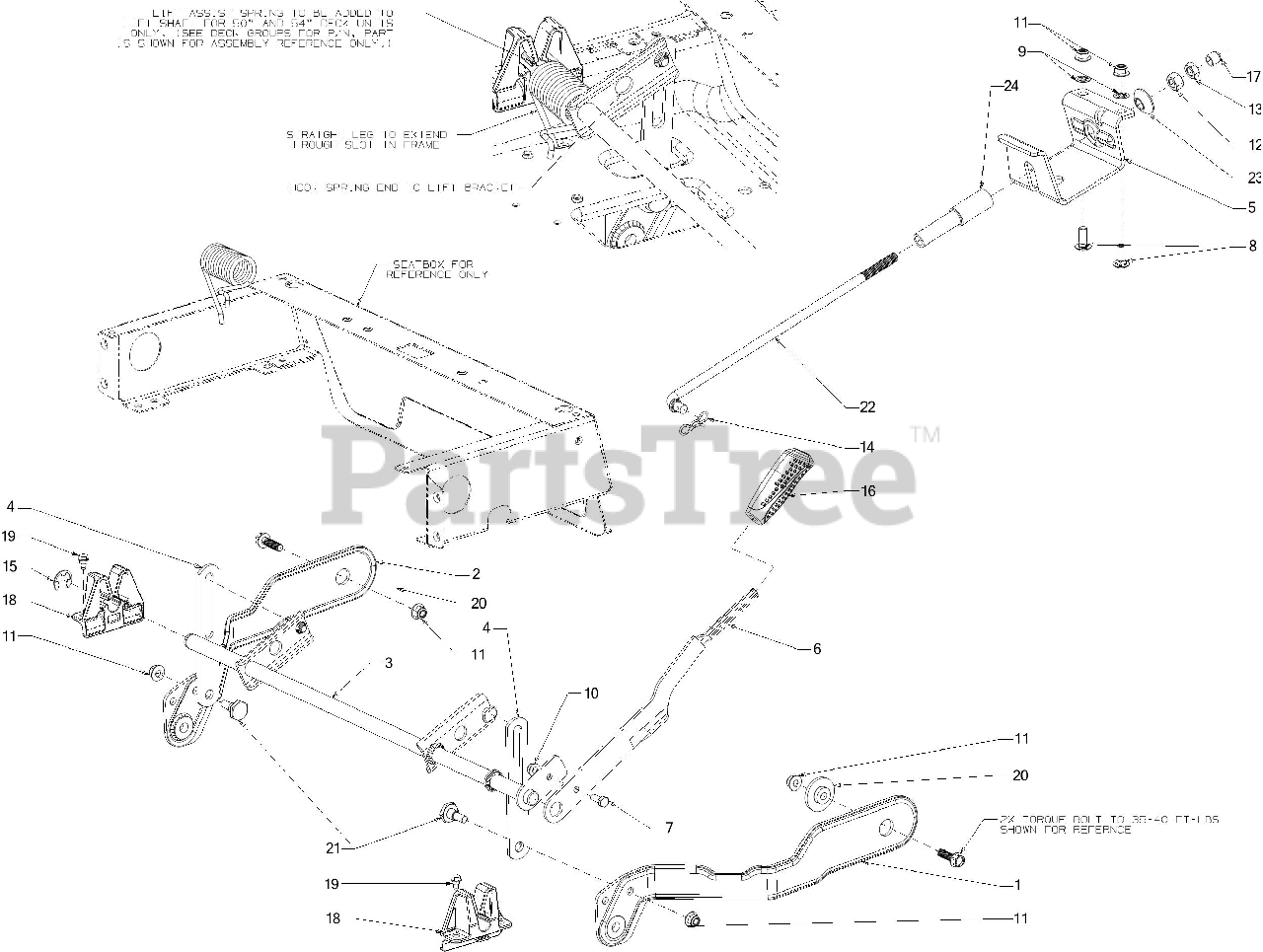

Deck Lift Parts Diagram

  • Title
1

Cub Cadet 603-05107B-0637

DECK LIFT PLATE ASSEMBLY (RH)

$95.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-05108B-0637

DECK LIFT PLATE ASSEMBLY (LH)

$95.99

$

In Stock, only 1 left!

0

2

Cub Cadet 703-08592-0637

DECK LIFT PLATE (RH)
(Superseded to 603-05107B-0637)

Note: (Not Shown)

$95.99

$

In Stock, only 1 left!

0

3

Cub Cadet 736-04624

FLAT WASHER .75 x 1.13 x .10

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 903-05138

DECK SHAFT ASSEMBLY

$97.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08591A-4021

LIFT LINK PLATE
(Superseded to 703-08591A-0637)

$20.99

$

In Stock, only 4 left!

0

5

Cub Cadet 703-08644-0637

ROD SUPPORT BRACKET
(Superseded to 703-08644A-0637)

$18.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-09621

DECK LIFT HANDLE
(Superseded to 703Z09621A)

$14.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

9

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-05046

HEX NUT NYLOK 1/2-13

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3048

HEX NUT
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

15

Cub Cadet 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

$18.99

$

In Stock, only 1 left!

0

17

Cub Cadet 726-05009

LIFT ROD END CAP

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-08782

DECK LIFT BRACKET

$8.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 738-04278

SHOULDER SCREW 1/4-20X.50 19"PSH

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 738-05029

SHOULDER SPACER -S

$9.99

$

In Stock, only 2 left!

0

21

Cub Cadet 938-0507B

SHOULDER SCREW
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 747-05552C

DECK FRONT LIFT ROD

$31.99

$

In Stock, only 2 left!

0

23

Cub Cadet 748-04069

LIFT PIVOT CUP
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

24

Cub Cadet 750-05658

SLEEVE .55 ID x 4.50 LG

$6.99

$

In Stock, Qty 10

0
