RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Operators Platform-Upper Parts Diagram

42" RZT Zero-Turn Mower, Electric

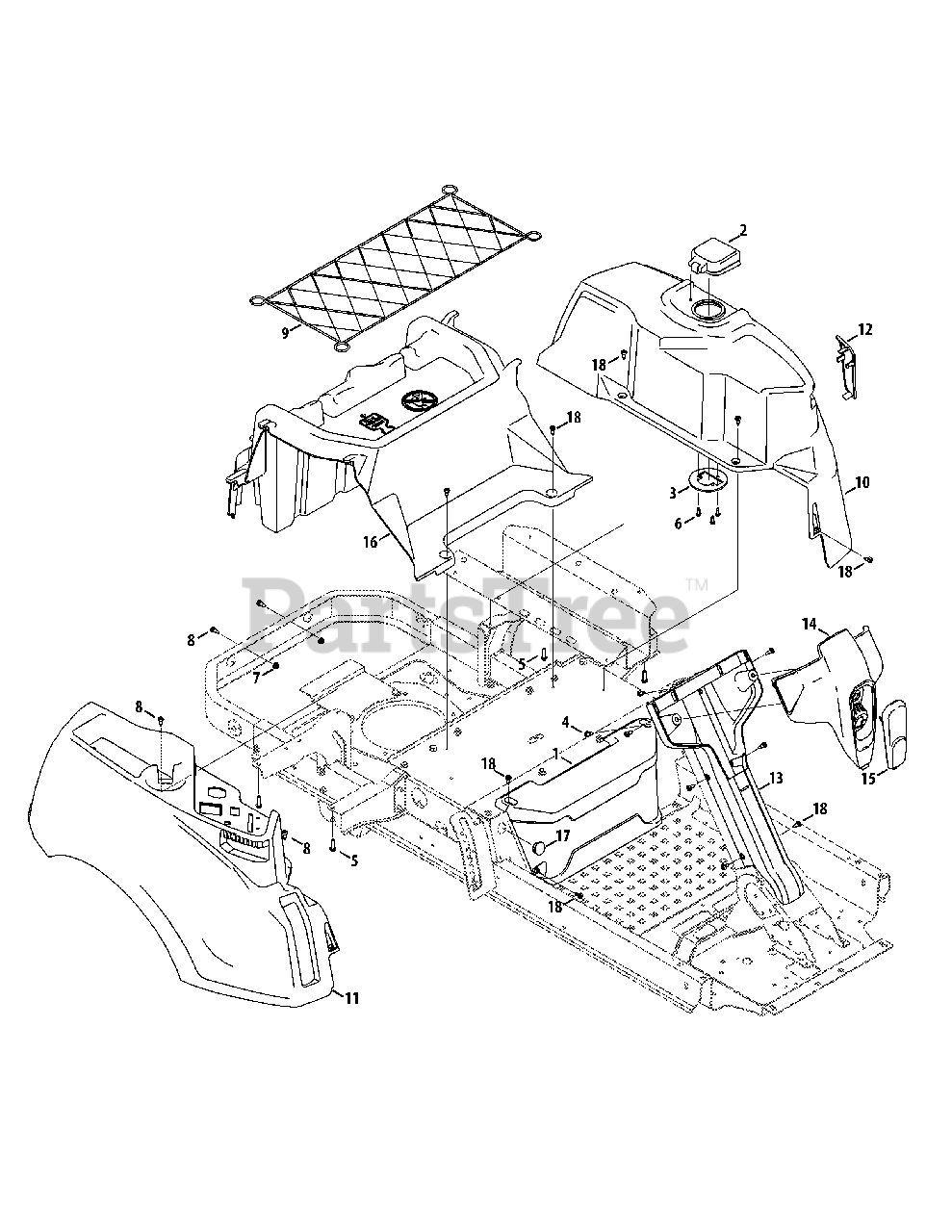

Operators Platform-Upper Parts Diagram

  • Title

1

Cub Cadet 903-05036

Battery Cover, Front

$43.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 925-04187

Charge Port Plug Assembly

$171.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08909

Charge Port Mounting Plate

$17.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04065

Screw, 1/4-10 x .625

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-1823

Screw, #12-16 x .625

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 727-04402

Cargo Retainer

$74.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 931-10107

Console, LH
(Superseded to 931-10107A)

$116.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 931-08771A

Console, RH
(Superseded to 931-13513)

$99.99

$

In Stock, Qty 5

0

12

Cub Cadet 731-08877

Pod Plug

$9.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-08893

Column Cover

$39.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-08894

Control Module Cover

$45.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-08895

Cover

$20.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-08900

Battery Cover

$137.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-09477

Plastic Plug

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0
