RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Operators Platform-Lower Parts Diagram

42" RZT Zero-Turn Mower, Electric

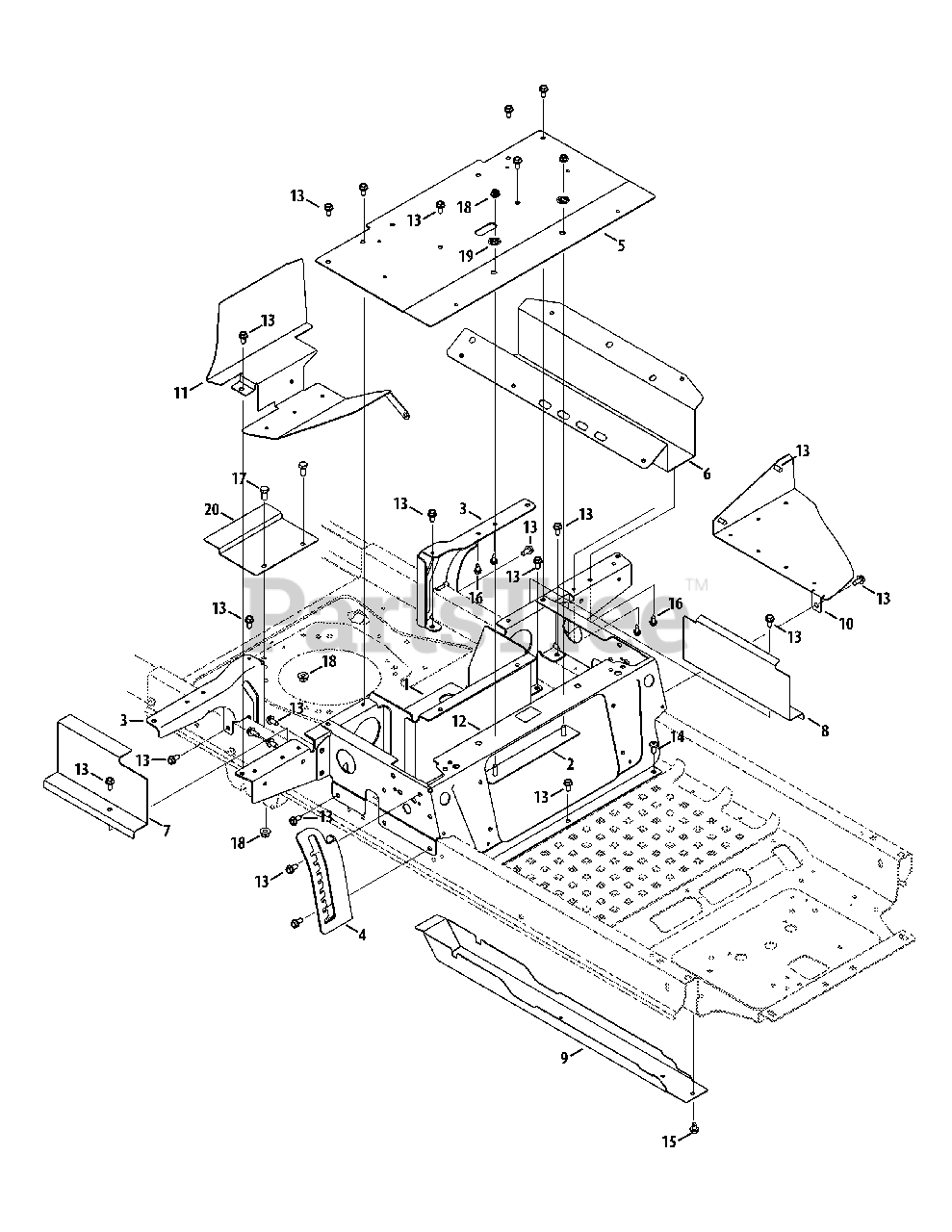

Operators Platform-Lower Parts Diagram

  • Title

1

Cub Cadet 603-05159-4021

Seatbox Brace, Rear

$442.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05030-4021

Seat Bolt Weldment

$19.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08720A-4021

Rear Tank Bracket
(Superseded to 703-08720C-5017)

$32.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

5

Cub Cadet 703-08823-4021

Seatbox, Top

$64.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08832-0637

Control Panel Mounting Plate

$127.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09121-4021

Shield Bracket, RH

$34.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09122-4021

Shield Bracket, LH

$39.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09129-4021

Shield Bracket, Main Harness

$42.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-09131-0637

Shield Bracket, Control

$39.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-09132A-0637

Shield Bracket, RH Pod

$65.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 603-05158-4021

Seat Frame

$81.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

15

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

16

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 726-04040

Push Nut, 5/16

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 783-07375-4021

Support Bracket

$22.99

$

Usually ships in 3-6 days

0
