RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Front Axle Parts Diagram

42" RZT Zero-Turn Mower, Electric

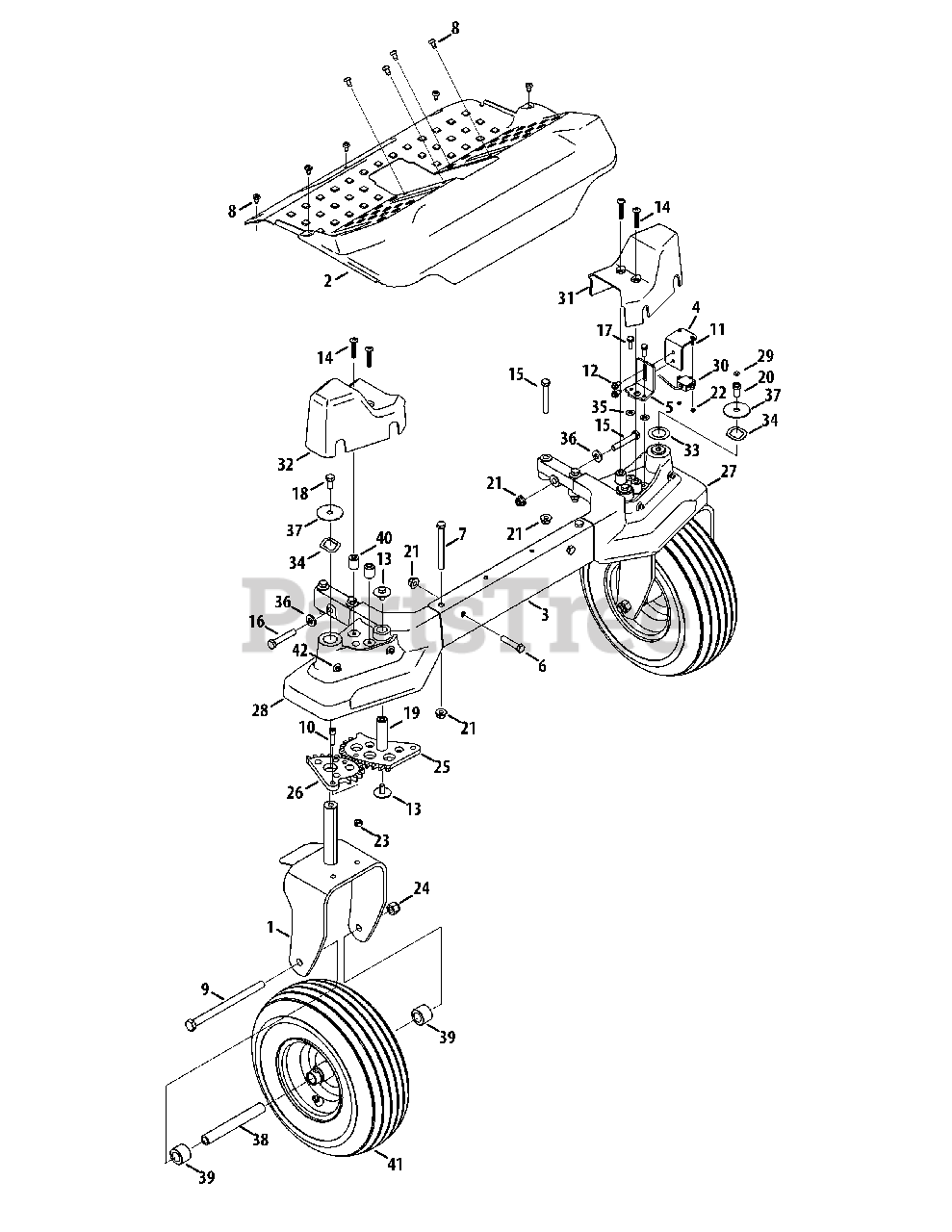

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-04961A-0637

Caster Wheel Bracket

$152.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08642A-4021

Floor Board
(Superseded to 703-08642B-4021)

$148.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08663-0637

Front Axle

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09067

Steering Sensor Mounting Bracket

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09068

Sensor Adjustment Mounting Brkt.

$16.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0411

Hex Cap Screw, 3/8-16 x 4.0

$8.49

$

In Stock, Qty 17

0

8

Cub Cadet 710-04483

Self Tapping Screw, 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04652

Bolt, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet 710-05398

Socket Head Screw, 5/16-18 x 1.00

$3.49

$

In Stock, only 1 left!

0

11

Cub Cadet 710-05437

Screw, #5-40 x .625

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-06041

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 710-06066

Screw, 1/4-20 x 1.50

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

16

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16, 2.25

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x 0.75

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 711-05742

Pivot Gear Steering Shaft

$26.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-06007

Screw

$8.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04330

Hex Lock Nut, #5-40

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 912-3009

Hex Lock Nut, 5/16-18
(Superseded to 712-3009)

$

$

Not available

24

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

25

Cub Cadet 717-04952

12-Tooth Variable gear

$53.99

$

In Stock, only 1 left!

0

26

Cub Cadet 717-04953

13-Tooth Variable gear

$40.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 719-05007

Pivot Axle, LH

$357.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 719-05025

Pivot Axle, RH

$345.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 924-04153

Magnet-Rotary Sens

$10.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 925-05449

Sensor-Rotary

$

$

Not available

31

Cub Cadet 731-09095

Axle Cover, LH

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-09229

Axle Cover, RH

$14.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 936-0424

Flat Washer, 1.006 x 1.56 x .020

$6.99

$

In Stock, only 3 left!

0

34

Cub Cadet 936-0447

Wave Washer, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0463

Flat Washer, .25 x .63 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

37

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

38

Cub Cadet 750-04775A

Spacer, .51 ID x .75 OD x 5.825

$28.99

$

In Stock, Qty 20+

0

39

Cub Cadet 750-04792

Hub, .76 x 1.23 x .92 LG

$7.99

$

In Stock, Qty 20+

0

40

Cub Cadet 750-06016

Shoulder Spacer, .28 x .75 x .837

$11.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 634-04711-0931

Wheel Assembly, 13 x 5-6
(Superseded to 634-04711A-0936)

$174.99

$

In Stock, only 2 left!

0

42

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0
