RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Electrical Parts Diagram

42" RZT Zero-Turn Mower, Electric

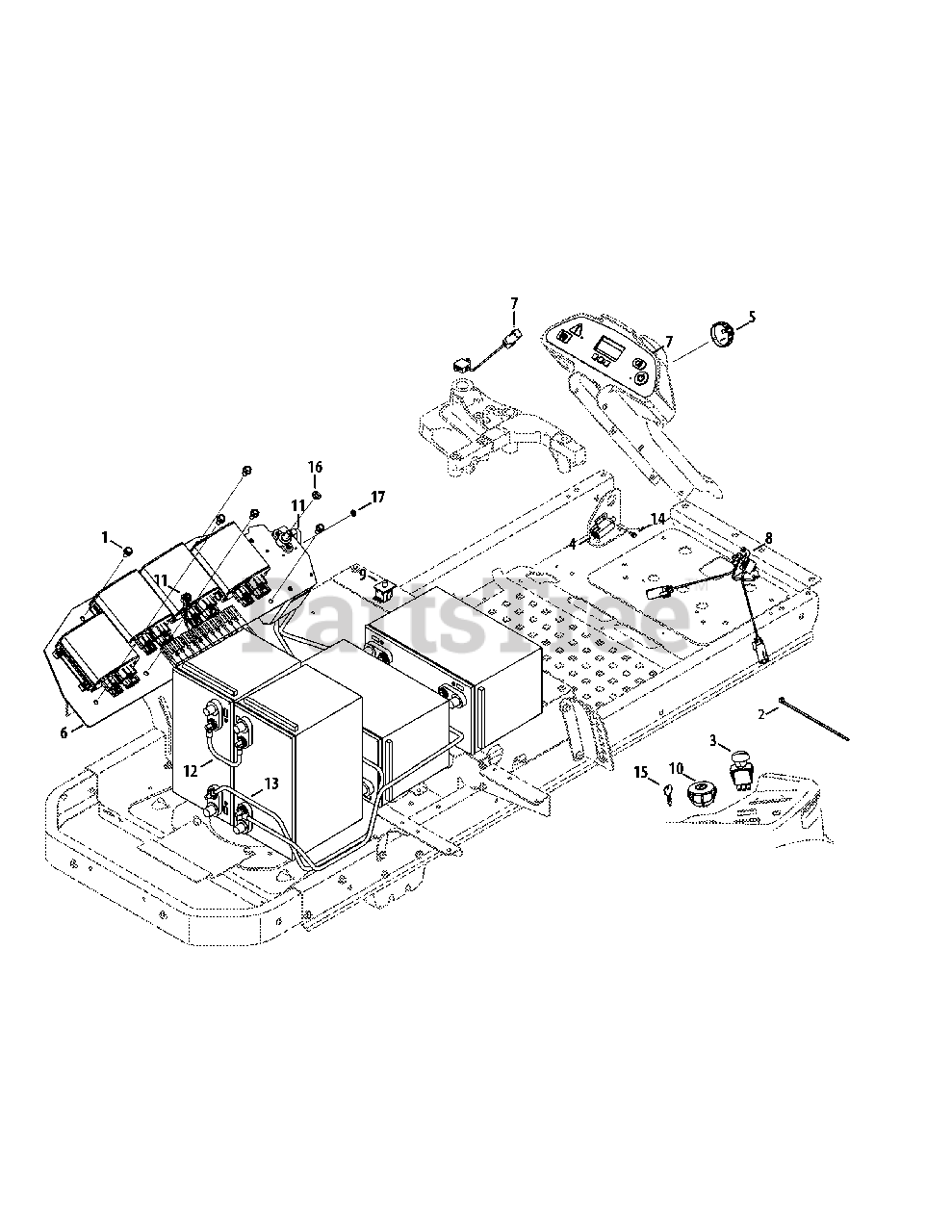

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

3

Cub Cadet 925-04175

Switch, Electric PTO, Yellow Knob
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

4

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

5

Cub Cadet 925-06095

LED Headlight Socket
(Superseded to 925-06095A)

$52.99

$

In Stock, only 1 left!

0

6

Cub Cadet 925-05448

Controller Assembly

$2332.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 925-05454

Control Module Assembly

$542.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 925-05459

Throttle Sensor

$201.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-05472

Seat Switch

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 925-05476

Key Switch

$46.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 925-05488

Electric Battery Harness, 48V

$357.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-05491

Electric Battery Harness, 24V

$37.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 925-06003

Electric Battery Harness, 12V, 36V

$106.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

15

Cub Cadet 625-05000

Key, Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

16

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

Cub Cadet 925-05441

Harness Assembly

$371.99

$

Usually ships in 3-6 days

0
