RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Drive System Parts Diagram

42" RZT Zero-Turn Mower, Electric

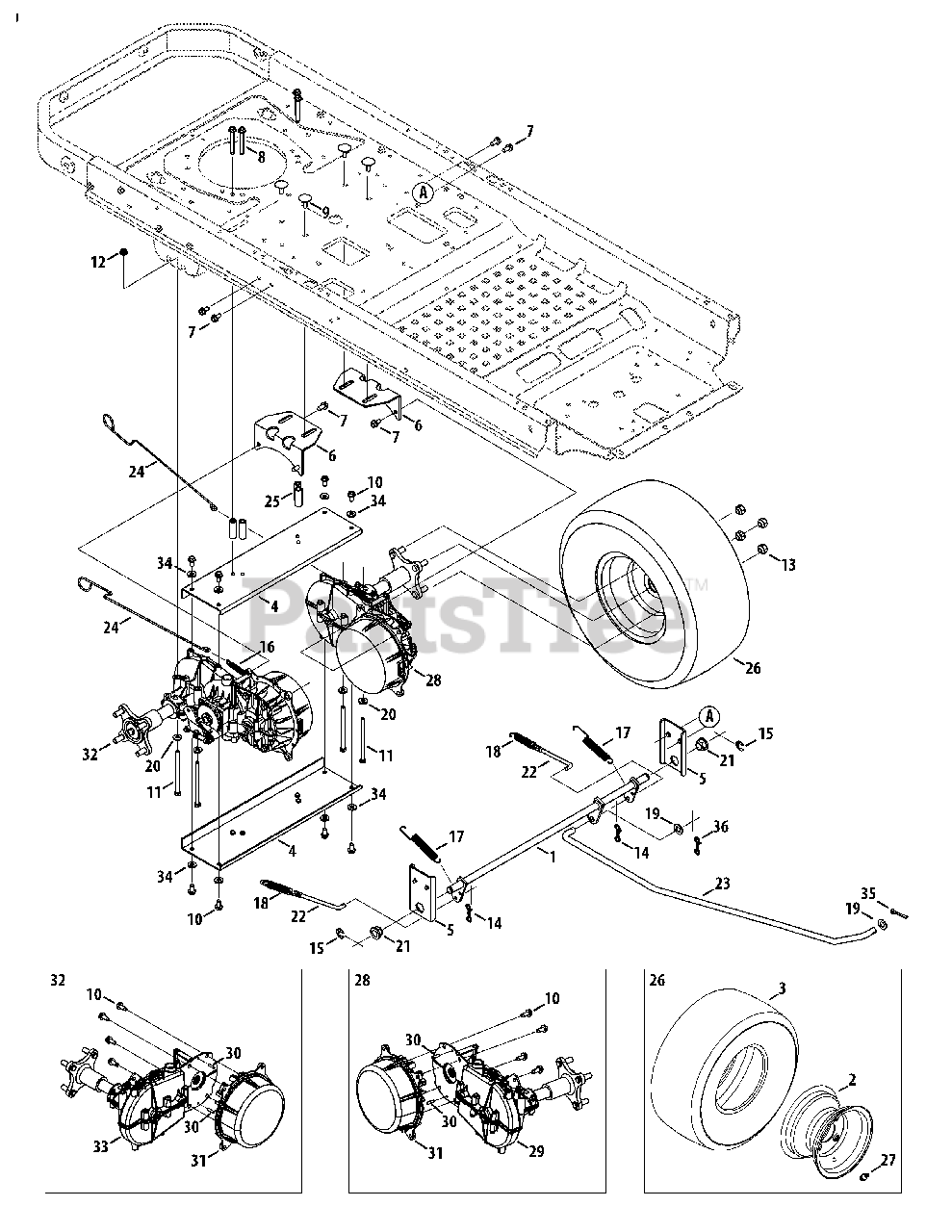

Drive System Parts Diagram

  • Title

1

Cub Cadet 611-04234

Shift Assembly

$47.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04173-0499

Rim Only

$88.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 734-04246-0901

Tire Only, 18 x 8.5-8
(Superseded to 734-04246-0906)

$85.99

$

In Stock, only 2 left!

0

4

Cub Cadet 703-08706-0637

Axle Support Bracket

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09726

Shift Assembly Mounting Bracket

Note: Same for LH & RH, Oval hole

Variations

Cub Cadet 703-09726-4021

BRACKET-BRAKE SHAFT - CUB YELLOW 2 (4021)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08752-4021

Shift Assembly Mounting Bracket

Note: Separate LH RH, Round hole

$15.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09755-0637

Transmission Mounting Bracket

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-05378

Hex Washer Screw, 5/16-18 x 2.50

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-05478

Screw, 5/16-18 x 1.00

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1260A

Hex Washer Head Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3195

Hex Cap Screw 5/16-18 x 4.50

$7.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

14

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

Cub Cadet 716-0106A

E-Ring, .625

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet 932-04262

Extension Spring, .429OD x 2.515

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-04587

Extension Spring, .63 DIA x 4.95 LG

$7.49

$

In Stock, Qty 12

0

18

Cub Cadet 732-0716D

Extension Spring, .59 OD x 4.00 LG

$13.99

$

In Stock, only 1 left!

0

19

Cub Cadet 936-0272

Flat Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 19

0

22

Cub Cadet 747-05687

Brake Rod

$12.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-05688

Brake Rod

$45.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 747-05699

Dump Rod

$8.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-05632

Spacer, .345 x .625 x 1.798

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 634-04293-0931

Complete Wheel, 18 x 8.5-8 (42" & 46)
(Superseded to 634Z04293-0499)

$132.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 934-0255

Valve Tubeless

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet N/A

Transmission Assembly, Whl Mtr, RH

$

$

Currently unavailable

29

Cub Cadet 918-05080

Tranmission Assembly, RH

$636.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 915-0221

Dowel Pin, 3/16 x 3/4

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 924-04147

Electric Motor, 48V

$975.99

$

Usually ships in 3-6 days

0

32

Cub Cadet N/A

Transmission Assembly, Whl Mtr, LH

$

$

Currently unavailable

33

Cub Cadet 918-05081

Tranmission Assembly, LH

$636.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

35

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 714-05005

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 7

0
