RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2013) Transmission Parts Diagram

42" RZT Zero-Turn Mower, Electric

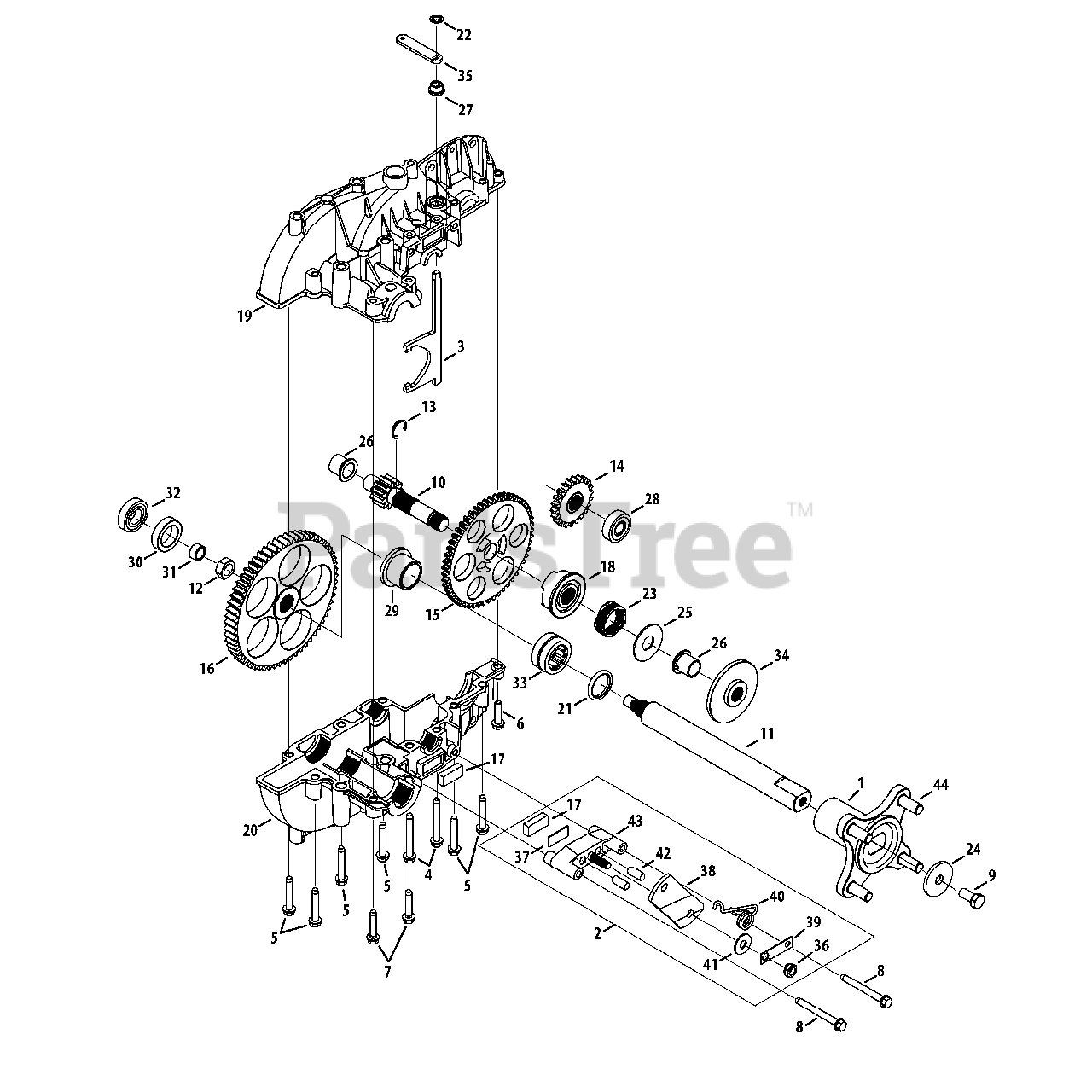

Transmission Parts Diagram

  • Title
1

Cub Cadet 918-04317

Wheel Hub Assembly

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 961-0001

Brake Ass’y, Yoke, RH

$57.99

$

In Stock, only 1 left!

0

2

Cub Cadet 961-0006

Brake Ass’y, Yoke, LH

$46.99

$

In Stock, only 1 left!

0

3

Cub Cadet 707-04806

Neutral Actuator

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04523

Screw, 1/4-20 x 2.00

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet 710-0788

Hex Washer Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-0809

Hex Washer Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

8

Cub Cadet 710-1206

Hex Washer Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

9

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 911-05689

Electric Output Shaft, 11T

$63.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-05717

Axle Shaft

$

$

Not available

12

Cub Cadet 712-3059

Jamlock Nut, 1/2-20

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-04056

Retainer Ring, 7MM

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 717-04295

Spur Gear, 22T

$10.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 717-04296

Spur Gear, 53T

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-04297

Spur Gear, 61T

$73.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 917-0678

Brake Pad

$7.49

$

In Stock, Qty 5

0

18

Cub Cadet 718-04166

Clutch Collor, U-Turn

$16.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 919-04331A

Axle Housing

$54.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 919-04333A

Axle Housing

$54.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 721-04609

Seal, 1.00 x 1.25 x .125

$

$

Not available

22

Cub Cadet 726-04062

Push Nut, 1/4 x 17/32

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04366

Spring, 1.00 x 1.375 x .400

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

25

Cub Cadet 736-3088

Flat Washer, 1.595 x .635 x .062

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 941-0336

Flange Bearing, 5/8 x 3/4 x 3/4

$11.99

$

In Stock, only 4 left!

0

27

Cub Cadet 741-04170

Flange Slotted Bearing

$2.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 741-04182

Ball Bearing

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 741-0476A

Flange Bearing, 1.004 x 1.25

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 941-05019

Thrust Bearing

$

$

Not available

31

Cub Cadet 741-05020

Sleeve Bearing

$

$

Not available

32

Cub Cadet 941-05021

Ball Bearing, .625 x 1.375 x 11/32

$9.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 941-05028

Bearing, 1.00 x 1.50 x .750

$

$

Not available

34

Cub Cadet 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

35

Cub Cadet 783-05276

Lever Plate

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 912-0273

Hex Lock Nut, 5/16-24

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 917-0682

Puck Plate

$9.99

$

In Stock, Qty 9

0

38

Cub Cadet 717-0700

Arm, Brake Actuator - RH Brake

$14.99

$

In Stock, only 1 left!

0

38

Cub Cadet 717-0772B

Arm, Brake Actuator - LH Brake

$12.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 718-0150

Anti-Rotation Brkt.

$4.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 932-0742

Torsion Spring, .75 OD x 3 Coils, RH

$4.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 932-0743

Torsion Spring, .75 OD x 3 Coils, LH

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

42

Cub Cadet 941-0343

Brake Actuating Pin
(Superseded to 741-0343)

$

$

Not available

43

Cub Cadet 961-0198A

Brake Yoke
(Superseded to 961-0198B)

$25.99

$

In Stock, only 1 left!

0

44

Cub Cadet 710-0852

Stud, rib Neck, 7/16-14 x 1.6

$6.49

$

In Stock, only 4 left!

0

Cub Cadet 918-05080

Transmission Assembly, RH

Note: (not shown)

$636.99

$

Usually ships in 3-6 days

0

Cub Cadet 918-05081

Tranmission Assembly, LH

Note: (not shown)

$636.99

$

Usually ships in 3-6 days

0
