RZT-S42 (17WFCBDS056) - Cub Cadet 42" RZT Zero-Turn Mower (2013) Steering Column & Pedal Controls Parts Diagram

42" RZT Zero-Turn Mower

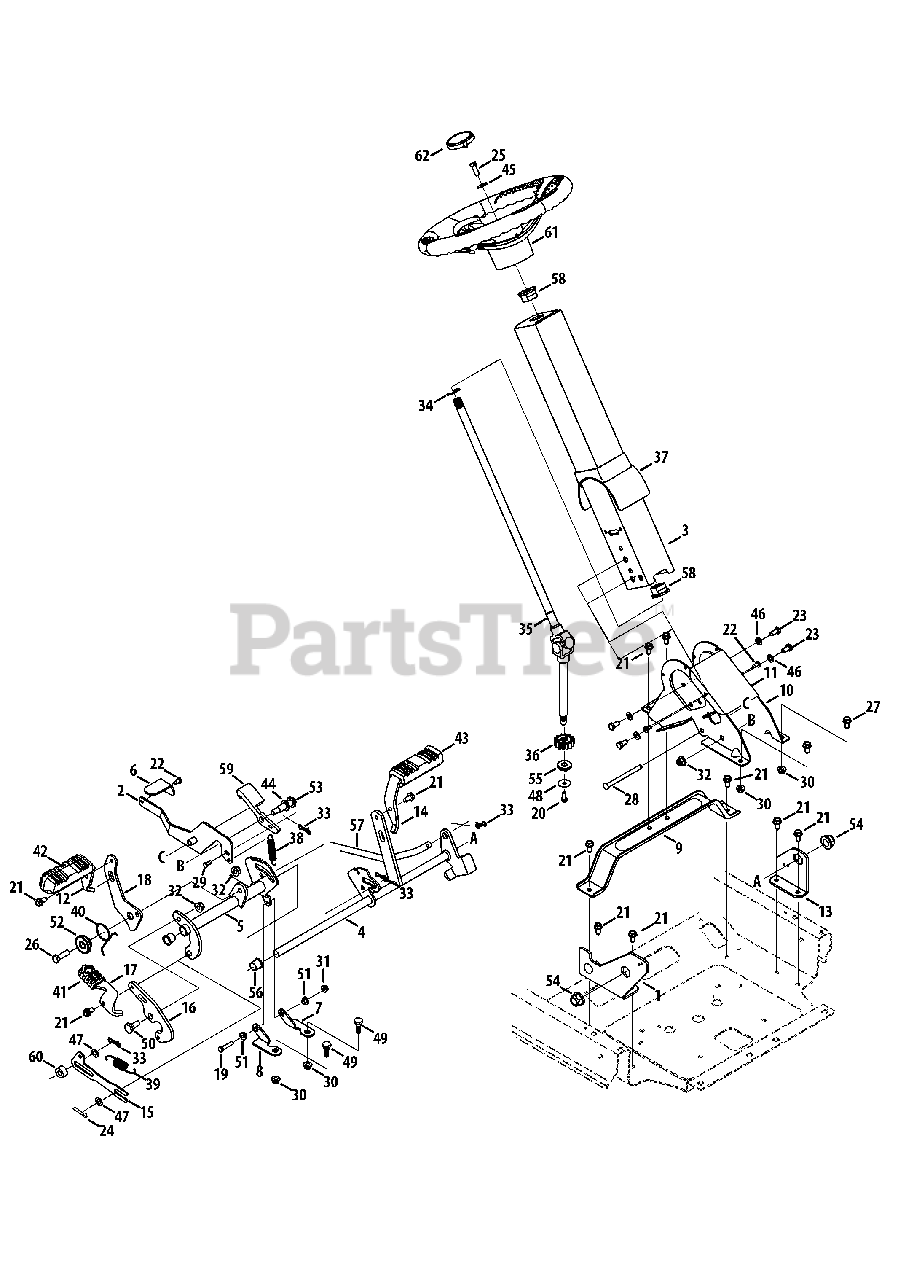

Steering Column & Pedal Controls Parts Diagram

  • Title
1

Cub Cadet 603-04931A-0637

Support Bracket Assembly, RH

$42.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05040-0637

Brake Pedal Assembly

$46.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04938-0637

Steering Column Assembly
(Superseded to 603-04938A-0637)

$187.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 647-04269

Brake Pedal Assembly
(Superseded to 947-05042A)

$98.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 647-04270A

Drive Pedal Assembly
(Superseded to 947-04270C)

$82.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09147-0637

Tilt Steering Pedal

$12.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08604-0637

Speed Bracket, LH
(Superseded to 703-08604A-0637)

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08606-0637

Speed Bracket, RH
(Superseded to 703-08606A-0637)

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08620A-4021

Steering Support Bracket

$34.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08621A-0637

Lower Steering Wheel Column
(Superseded to 703-08621B-0637)

$88.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08622-0637

Lower Column Cover

$7.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08646A-0637

Drive Pedal
(Superseded to 703-08646B-0637)

$24.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-08656-0637

Support Bracket, LH

$29.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-08675-0637

Brake Pedal
(Superseded to 703-08675A-0637)

$40.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-08678A

Return to Neutral Link
(Superseded to 703-08678B)

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-08690

Reverse Pedal Bracket

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-08694A-0637

Reverse Pedal
(Superseded to 703-08694B-0637)

$21.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 703-08754A-0637

Forward pedal Bracket
(Superseded to 903-10338A)

$17.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0106

Hex Head Screw, 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

20

Cub Cadet 710-0433

Hex Head Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

23

Cub Cadet 710-0538

Hex Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 9

0

24

Cub Cadet 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

25

Cub Cadet 710-1245B

Hex Screw, 5/16-24 x.875

$8.49

$

In Stock, only 1 left!

0

26

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 711-05068A

Clevis Pin, 5/16 x 4.135

$7.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-05670

Clevis Pin, .224 Dia. x .625

$5.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

34

Cub Cadet 916-0231

E-Ring, .750
(Superseded to 716-0231)

$

$

Not available

35

Cub Cadet 717-04954

Steering Shaft

$254.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 717-04960

14-Tooth Spur Gear

$13.99

$

In Stock, only 1 left!

0

37

Cub Cadet 731-07358B

Column Cover
(Superseded to 731-07358C)

$22.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 732-04580

Extension Spring, .500 Dia. x 2.733 LG

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 732-04748

Extension Spring, .70 OD x 3.035 LG

$4.49

$

In Stock, only 1 left!

0

40

Cub Cadet 732-04949

Torsion Spring, 1.00 ID x .22

$5.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 735-04117

Reverse Pedal Pad

$6.49

$

In Stock, only 3 left!

0

42

Cub Cadet 735-04118A

Forward Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 735-04136

Brake Pedal Pad

$15.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 936-0192

Flat Washer, .535 x .930 x .090

$4.49

$

In Stock, Qty 18

0

45

Cub Cadet 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .064

$6.99

$

In Stock, only 3 left!

0

47

Cub Cadet 936-0314

Thrust Washer, .375 x .700 x .030
(Superseded to 736-0314)

$

$

Not available

48

Cub Cadet 736-3092

Flat Washer, .265 x 1.00 x .030

$3.99

$

In Stock, Qty 9

0

49

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 938-0380

Shoulder Bolt, 3/8-16 x .500 x .270
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

51

Cub Cadet 738-04483

Shoulder Spacer, .375 x .625 x .20

$3.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 738-04552A

Shoulder Spacer, 1.50 x .38 x .38
(Superseded to 738-04552B)

$7.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 738-0929

Shoulder Screw, 3/8-16 x .496 x 1.445

$7.99

$

In Stock, only 2 left!

0

54

Cub Cadet 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

55

Cub Cadet 741-04543

Hex Flange Bearing, 7/16

$5.99

$

In Stock, Qty 5

0

56

Cub Cadet 741-0495

Flange Bearing, .63 ID x .695 OD x .06

$4.99

$

In Stock, Qty 20+

0

57

Cub Cadet 747-05654A

Front Brake Rod

$42.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 948-0209

Flange Bearing, .63 ID x 1.50

$22.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 750-05635

Spacer, .385 ID x .875 OD x .458

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 631-04008A

Steering Wheel Assembly
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

62

Cub Cadet 731-04039

Steering Wheel Cover

$8.49

$

In Stock, only 1 left!

0
