RZT-S42 (17WF2BDS056) - Cub Cadet 42" RZT Zero-Turn Mower (2012) Operator's Platform Parts Diagram

42" RZT Zero-Turn Mower

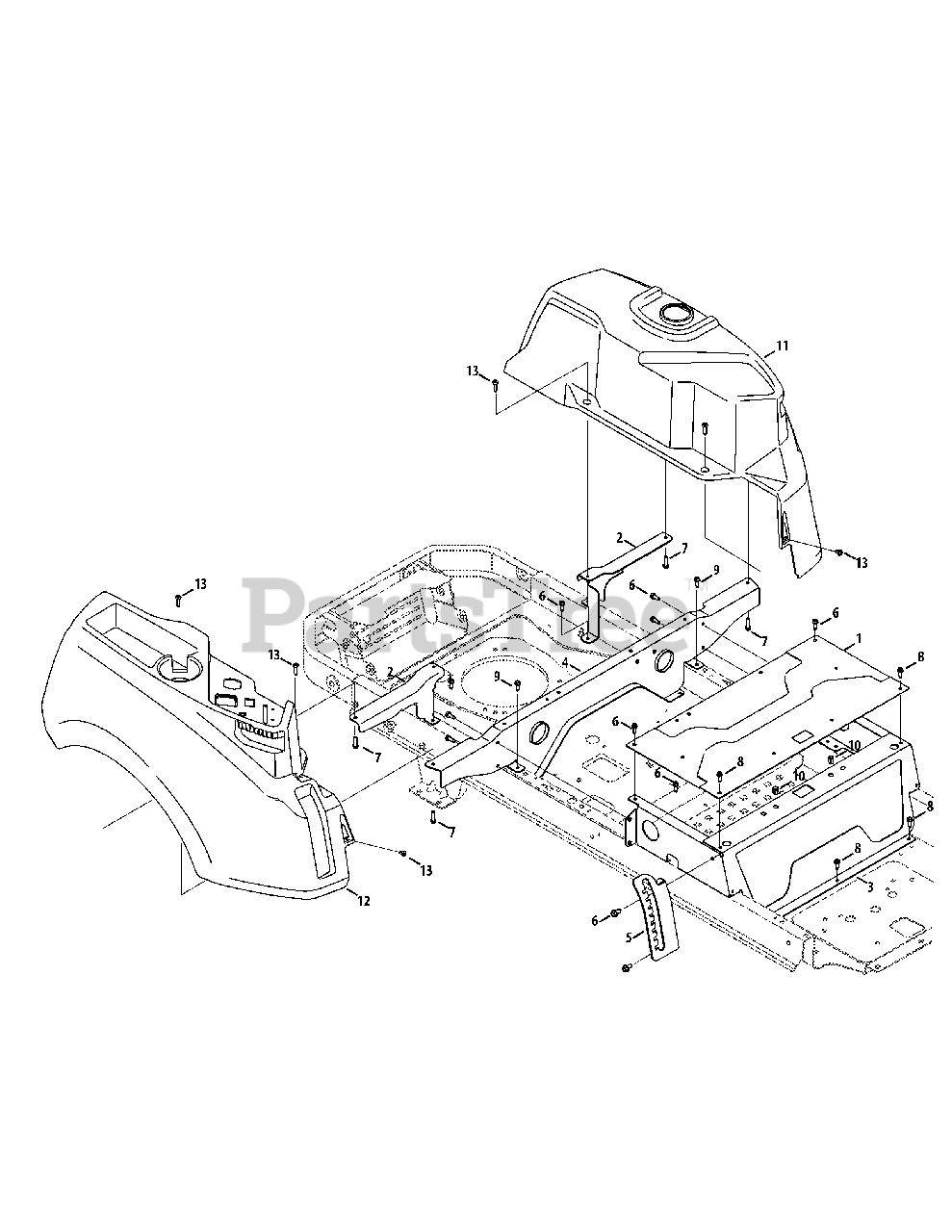

Operator's Platform Parts Diagram

  • Title

1

Cub Cadet 703-08718-4021

Seatbox Plate

$

$

Not available

2

Cub Cadet 703-08720-4021

Rear Tank Bracket
(Superseded to 703-08720C-5017)

$32.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08721-4021

Seat Frame

$

$

Not available

4

Cub Cadet 703-08722-4021

Rear Seatbox Brace

$49.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08762

Height Index Bracket
(Superseded to 703-08762C)

$16.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 931-08687

LJ Console
(Superseded to 931-08687B)

$116.99

$

In Stock, only 1 left!

0

12

Cub Cadet 931-08771

RH Console
(Superseded to 931-13513)

$99.99

$

In Stock, Qty 5

0

13

Cub Cadet 738-04549

Shoulder Screw, 1/4-20
(Superseded to 738-04549A)

$7.49

$

In Stock, only 2 left!

0
