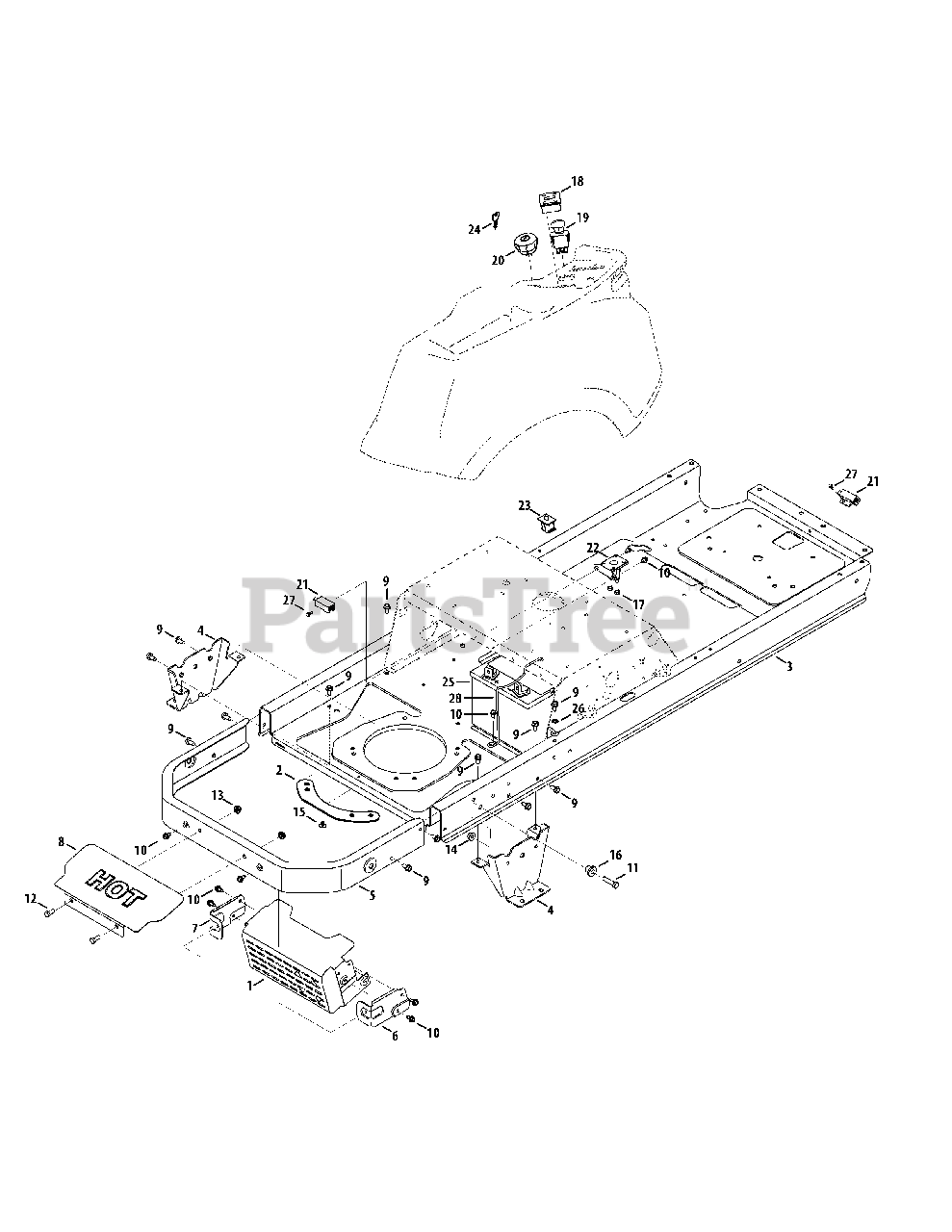

RZT-S42 (17WF2BDS056) - Cub Cadet 42" RZT Zero-Turn Mower (2012) Frame & Electrical Parts Diagram

42" RZT Zero-Turn Mower

Frame & Electrical Parts Diagram

  • Title

1

Cub Cadet 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-05383B-0637

Retainer Plate

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08547-4021

Frame Assembly
(Superseded to 703-08884B-4021)

$642.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08555-0637

Transmission Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08558-4021

Rear Bumper
(Superseded to 703-08558B-4021)

$51.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08671-0637

Muffler Mounting Shield Bracket, RH
(Superseded to 703-08671B-0637)

$8.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08695-0637

Muffler Mounting Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08791-0637

Muffler Shield

$

$

Not available

9

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-04072A

Clip, .250 Dia. x .500 LG

$3.99

$

In Stock, Qty 13

0

16

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x .70

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 925-04036C

Hour Meter/Service Minder
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 925-04175

Electric PTO Switch
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

20

Cub Cadet 925-04228

Key Switch

$39.99

$

In Stock, Qty 20+

0

21

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

22

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

23

Cub Cadet 925-05013

Seat Switch

$31.99

$

In Stock, only 1 left!

0

24

Cub Cadet 925-2054A

Universal Key Switch
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

25

Cub Cadet 925-1707D

Battery

$

$

Not available

26

Cub Cadet 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

28

Cub Cadet 747-05685

Battery Rod

Variations

Cub Cadet 747-05685-0637

Battery Retainer - POWDER BLACK (0637)

$18.99

$

In Stock, only 1 left!

0

$18.99

$

In Stock, only 1 left!

0

Cub Cadet 925-05371

Harness Assembly

Note: Not shown

$198.99

$

In Stock, only 1 left!

0

Cub Cadet 725-05505

Wire, Ground Jumper

Note: Not shown

$17.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0599

Screw

Note: Not shown

$4.49

$

In Stock, Qty 20+

0
