RZT-S42 (17WF2BDS010) - Cub Cadet 42" RZT Zero-Turn Mower (2012) Deck Lift Parts Diagram

42" RZT Zero-Turn Mower

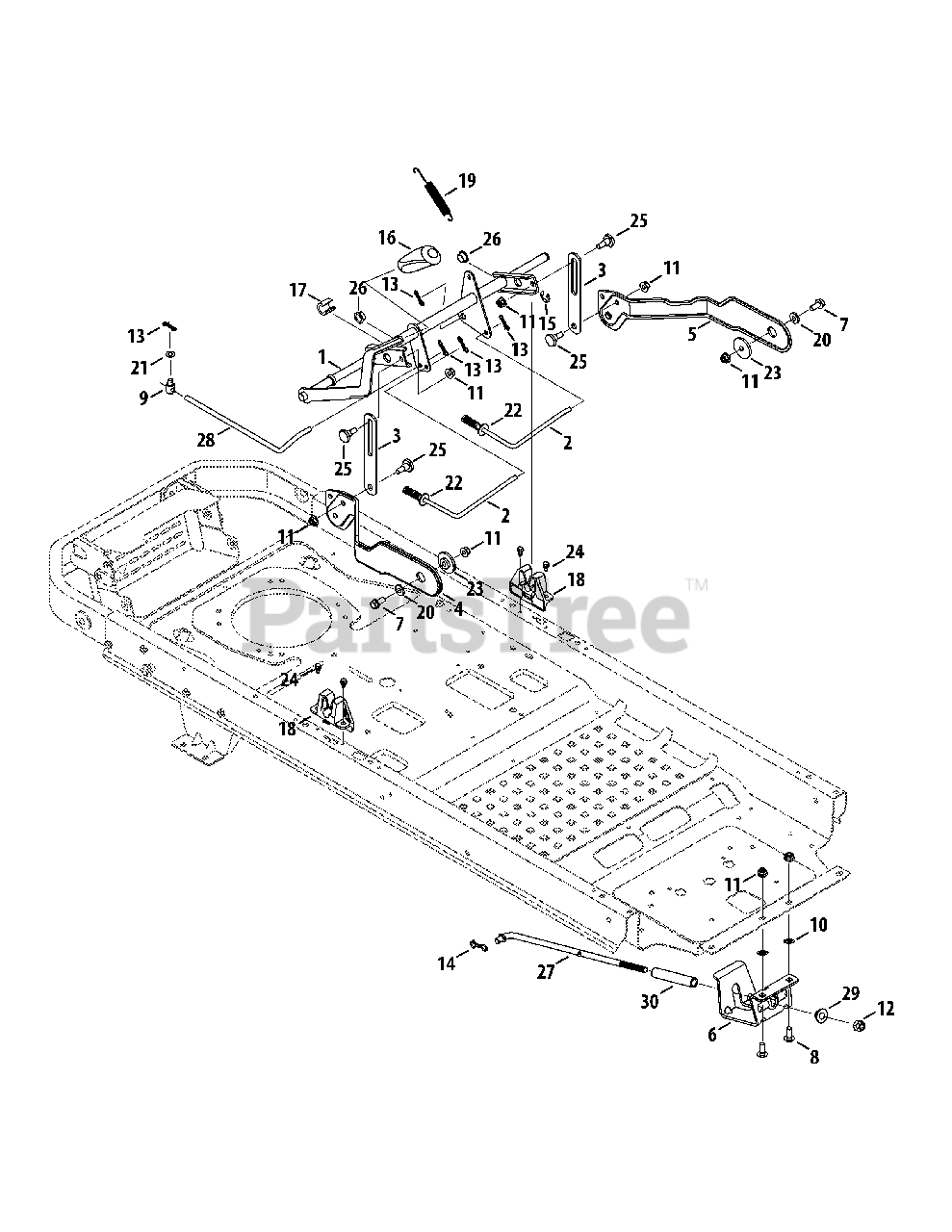

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 603-04907

Deck Lift Shift Assembly
(Superseded to 759-05057)

$127.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 647-04267

Brake Rod Assembly, w/spring

$30.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08591-4021

Lift Link Plate
(Superseded to 703-08591A-0637)

$20.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-08592-4021

Deck Lift Plate, RH

$

$

Currently unavailable

5

Cub Cadet 703-08593-4021

Deck Lift Plate, LH

$

$

Currently unavailable

6

Cub Cadet 703-08644-0637

Rod Support Mounting Bracket
(Superseded to 703-08644A-0637)

$18.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

10

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04243

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 916-0231

E-Type Ring, .750
(Superseded to 716-0231)

$

$

Not available

16

Cub Cadet 720-04139B

Grip, .50 ID

$18.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-05297

Spacer, .76 ID x .750 LG

$9.99

$

In Stock, only 2 left!

0

18

Cub Cadet 731-08782

Deck Lift Bracket

$8.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04587

Extension Spring, .63 Dia. x 4.95 LG

$7.49

$

In Stock, Qty 12

0

20

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 936-0314

Washer, .375 x .700 x .030
(Superseded to 736-0314)

$

$

Not available

22

Cub Cadet 736-3078

Flat Washer, .344 x 1.00 x .063

$4.49

$

In Stock, only 3 left!

0

23

Cub Cadet 738-04162A

Shoulder Spacer, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

24

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 7

0

25

Cub Cadet 938-0507B

Shoulder Screw, .500 Dia. x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 741-3084

Flange Bearing, .751 x 1.125 x .375

$5.49

$

In Stock, only 2 left!

0

27

Cub Cadet 747-05552

Deck Lift Rod
(Superseded to 747-05552C)

$31.99

$

In Stock, only 2 left!

0

28

Cub Cadet 747-05592

Brake Rod
(Superseded to 747-05592B)

$22.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 748-04069

Deck Lift pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

30

Cub Cadet 750-05658

Nylon Sleeve, .55 ID x 4.50 LG

$6.99

$

In Stock, Qty 10

0
