RZT-L54 KH (17ARCACA010) - Cub Cadet 54" RZT Zero-Turn Mower, Kohler (2014) Deck Lift Parts Diagram

54" RZT Zero-Turn Mower, Kohler

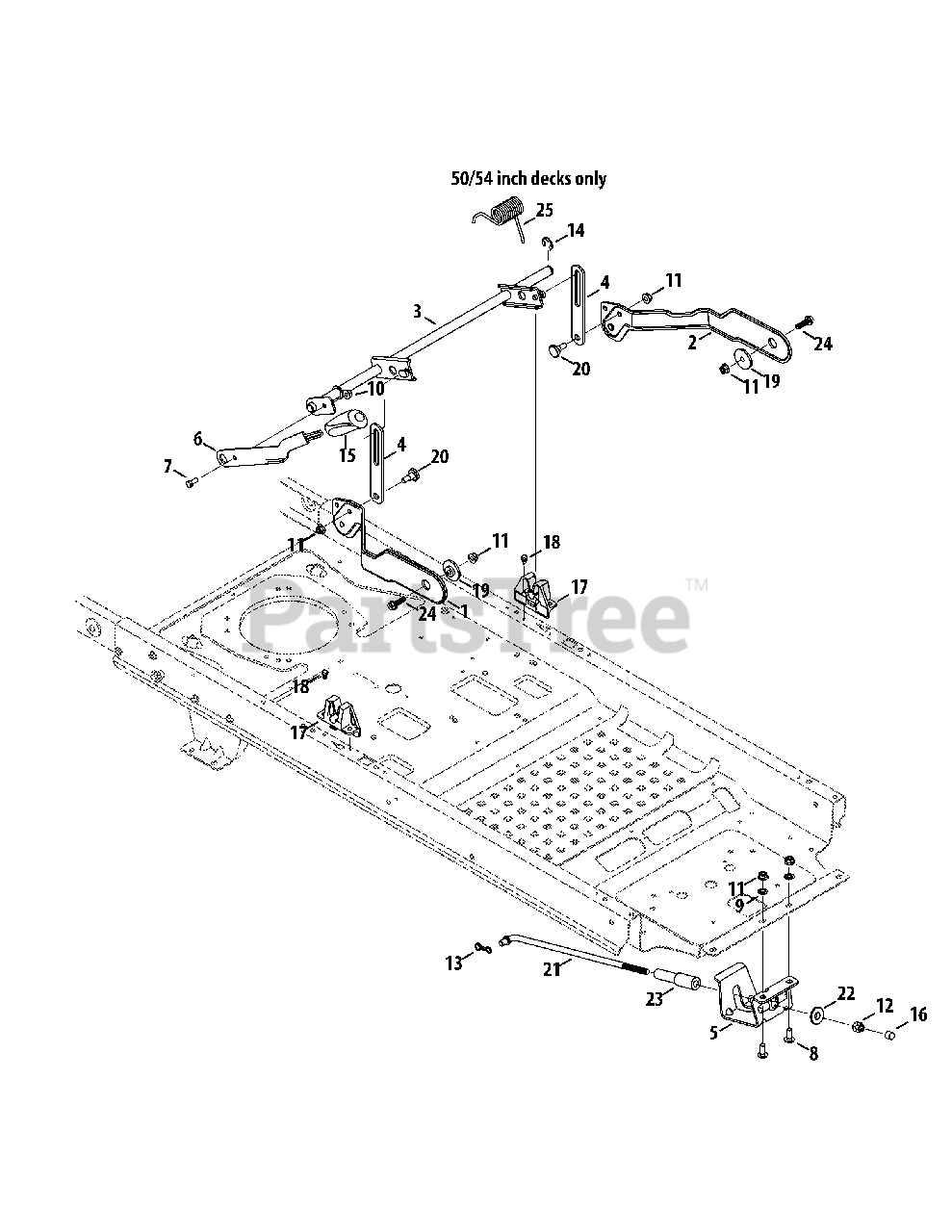

Deck Lift Parts Diagram

  • Title
1

Cub Cadet 603-05107A-0637

Deck Lift Plate, RH
(Superseded to 603-05107B-0637)

$95.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-05108A-0637

Deck Lift Plate, LH
(Superseded to 603-05108B-0637)

$95.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-05138

Deck Lift Shift Assembly
(Superseded to 903-05138)

$97.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08591A-4021

Lift Link Plate
(Superseded to 703-08591A-0637)

$20.99

$

In Stock, only 4 left!

0

5

Cub Cadet 703-08644-0637

Rod Support Mounting Bracket
(Superseded to 703-08644A-0637)

$18.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-09621

Deck Lift Handle
(Superseded to 703Z09621A)

$14.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-05005

Bow-Tie Cotter Pin

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet 916-0231

E-Type Ring, .750
(Superseded to 716-0231)

$

$

Not available

15

Cub Cadet 720-04139B

Grip, .50 ID

$18.99

$

In Stock, only 1 left!

0

16

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-08782

Deck Lift Bracket

$8.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 738-05029

Shoulder Spacer, .854 x .232

$9.99

$

In Stock, only 2 left!

0

20

Cub Cadet 938-0507B

Shoulder Screw, .500 Dia. x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet 747-05552B

Deck Lift Rod
(Superseded to 747-05552C)

$31.99

$

In Stock, only 2 left!

0

22

Cub Cadet 748-04069

Deck Lift pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 17

0

23

Cub Cadet 750-05658

Nylon Sleeve, .55 ID x 4.50 LG

$6.99

$

In Stock, Qty 10

0

24

Cub Cadet 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

25

Cub Cadet 732-04947A

Torsion Spring, 1.323 ID x 2.83 LG

$18.99

$

Usually ships in 3-6 days

0
