RZT-L50 KH (17ARCACP056) - Cub Cadet 50" RZT Zero-Turn Mower, Kohler (2014) Operators Platform Parts Diagram

50" RZT Zero-Turn Mower, Kohler

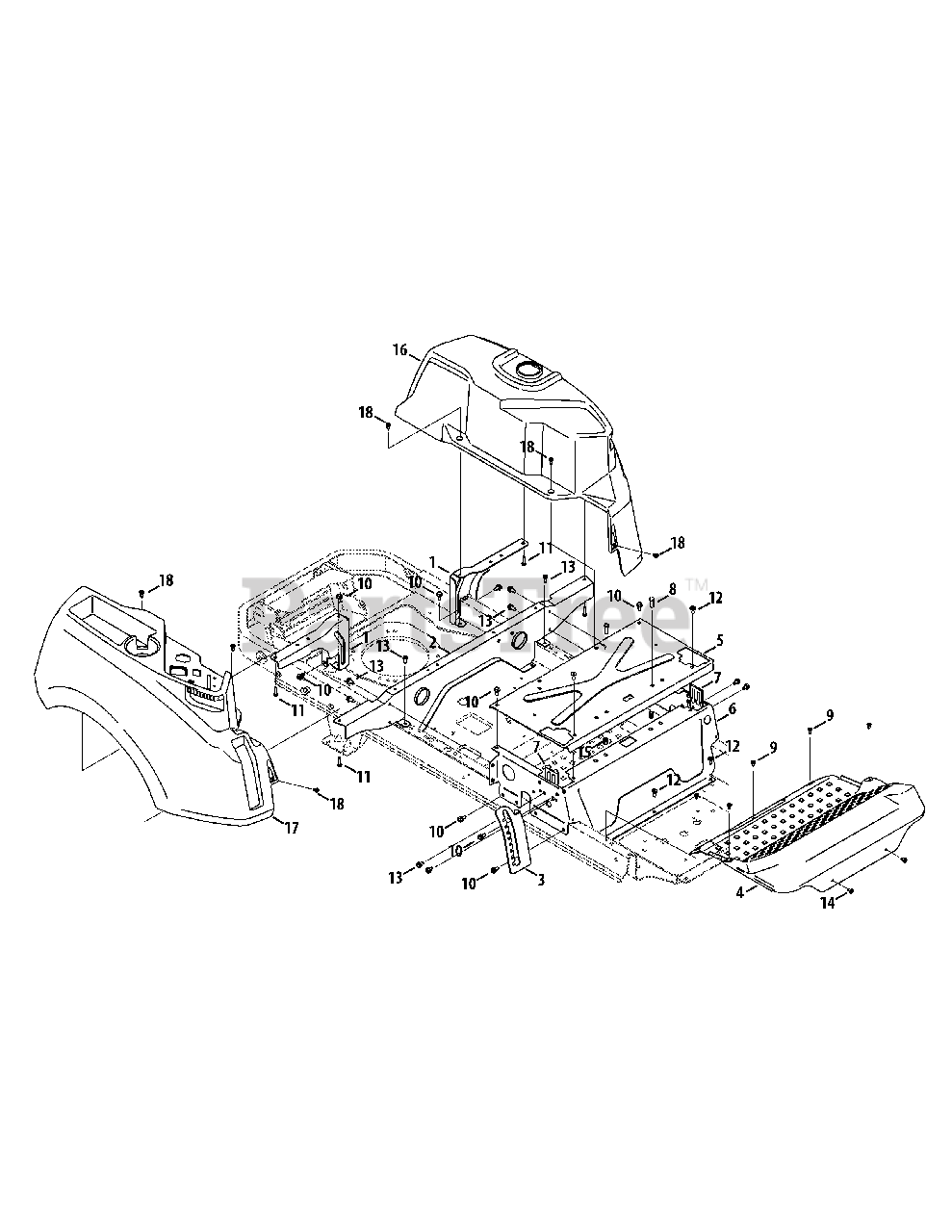

Operators Platform Parts Diagram

  • Title

1

Cub Cadet 703-08720A-4021

Rear Tank Bracket
(Superseded to 703-08720C-5017)

$32.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09332A-4021

Rear Seatbox Brace
(Superseded to 703-11179-5017)

$54.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-08902A-4021

Floor Board

$167.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09045B-4021

Seatbox Plate
(Superseded to 703-09045J-4021)

$45.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09320-4021

Seat Frame
(Superseded to 703-09320F-4021)

$94.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04483

Self Tapping Screw, 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

13

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 710-1611B

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 728-05012

Nut, 5/16-18

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-08687A

LH Console
(Superseded to 931-08687B)

$116.99

$

In Stock, only 1 left!

0

17

Cub Cadet 931-08771A

RH Console
(Superseded to 931-13513)

$99.99

$

In Stock, Qty 5

0

18

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0
