RZT-L50 KH (17ARCACP010) - Cub Cadet 50" RZT Zero-Turn Mower, Kohler (2014) Front Axle Parts Diagram

50" RZT Zero-Turn Mower, Kohler

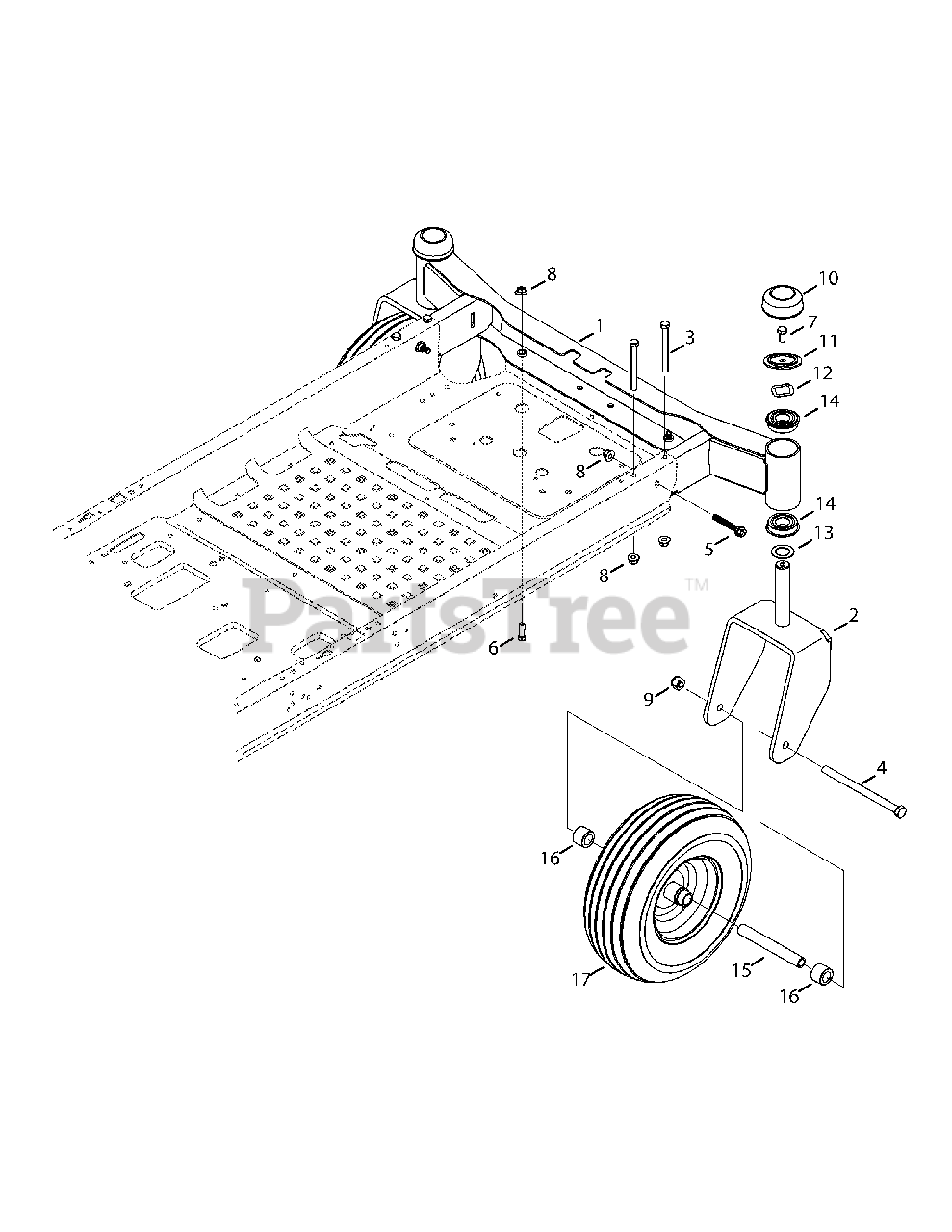

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-05135-0637

Front Axle

$445.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05058B-0637

Caster Wheel Bracket
(Superseded to 603-05058C-0637)

$118.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04652

Hex Cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

10

Cub Cadet 731-09347

Cap

$5.99

$

In Stock, Qty 8

0

11

Cub Cadet 738-05091

Shoulder Spacer, 2.50 x .200

$8.49

$

In Stock, only 3 left!

0

12

Cub Cadet 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.99

$

In Stock, Qty 15

0

13

Cub Cadet 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 941-05022A

Ball Bearing

$20.99

$

In Stock, only 2 left!

0

15

Cub Cadet 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

16

Cub Cadet 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 634-04711-0931

Wheel Assembly, 13 x 5 x 6 Carlisle
(Superseded to 634-04711A-0936)

$174.99

$

In Stock, only 2 left!

0

17

Cub Cadet 634-04711-0936

Wheel Assembly, 13 x 5 x 6 Deli
(Superseded to 634-04711A-0936)

$174.99

$

In Stock, only 2 left!

0

17

Cub Cadet 734-04255A-0901

Tire, Grooved, 13 x 5-6, CARLISLE
(Superseded to 734-04255A-0906)

Note: (not shown)

$82.99

$

In Stock, only 4 left!

0

17

Cub Cadet 734-04255A-0906

Tire, Grooved, 13 x 5-6, DELI

Note: (not shown)

$82.99

$

In Stock, only 4 left!

0

17

Cub Cadet 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 737-3034

Grease -#251 EP, Tube

Note: (not shown)

$

$

Not available
