RZT-L46 KH (17ARCACN010) - Cub Cadet 46" RZT Zero-Turn Mower, Kohler (2015) Operators Platform Parts Diagram

46" RZT Zero-Turn Mower, Kohler

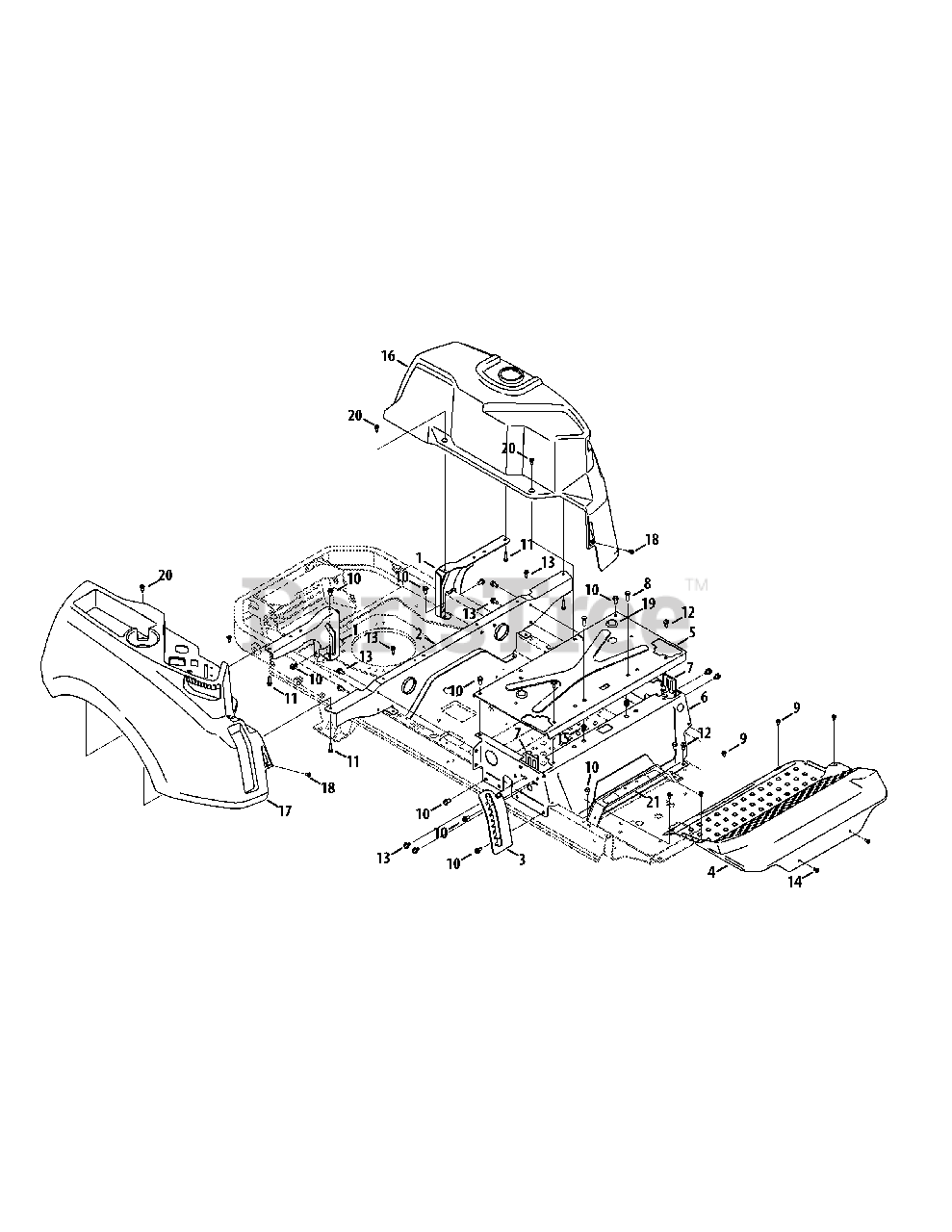

Operators Platform Parts Diagram

  • Title
1

Cub Cadet 703-08720A-4021

Rear Tank Bracket
(Superseded to 703-08720C-5017)

$32.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09332A-0637

Rear Seatbox Brace
(Superseded to 703-11179)

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

4

Cub Cadet 603-05094A-0637

Floor Board, Fab

$167.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09045D-0637

Seatbox Plate
(Superseded to 703-09045J-0637)

$45.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09320-0637

Seat Frame
(Superseded to 703-09320F-0637)

$94.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09211A-0637

Lapbar Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

9

Cub Cadet 710-04483

Self Tapping Screw, 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

13

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 9

0

14

Cub Cadet 710-1611B

Screw, Self-Tapping, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 728-04068

Nut, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-10107

LH Console
(Superseded to 931-10107A)

$116.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 931-09459

RH Console

$116.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.49

$

In Stock, only 2 left!

0

19

Cub Cadet 726-3045A

Button Plug

$4.99

$

In Stock, Qty 6

0

20

Cub Cadet 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet 703-08620A-0637

Steering Support Bracket

$34.99

$

Usually ships in 3-6 days

0
