RZT-L46 (17AICACT010) - Cub Cadet 46" RZT Zero-Turn Mower (2014) Engine Accessories (Kawasaki) Parts Diagram

46" RZT Zero-Turn Mower

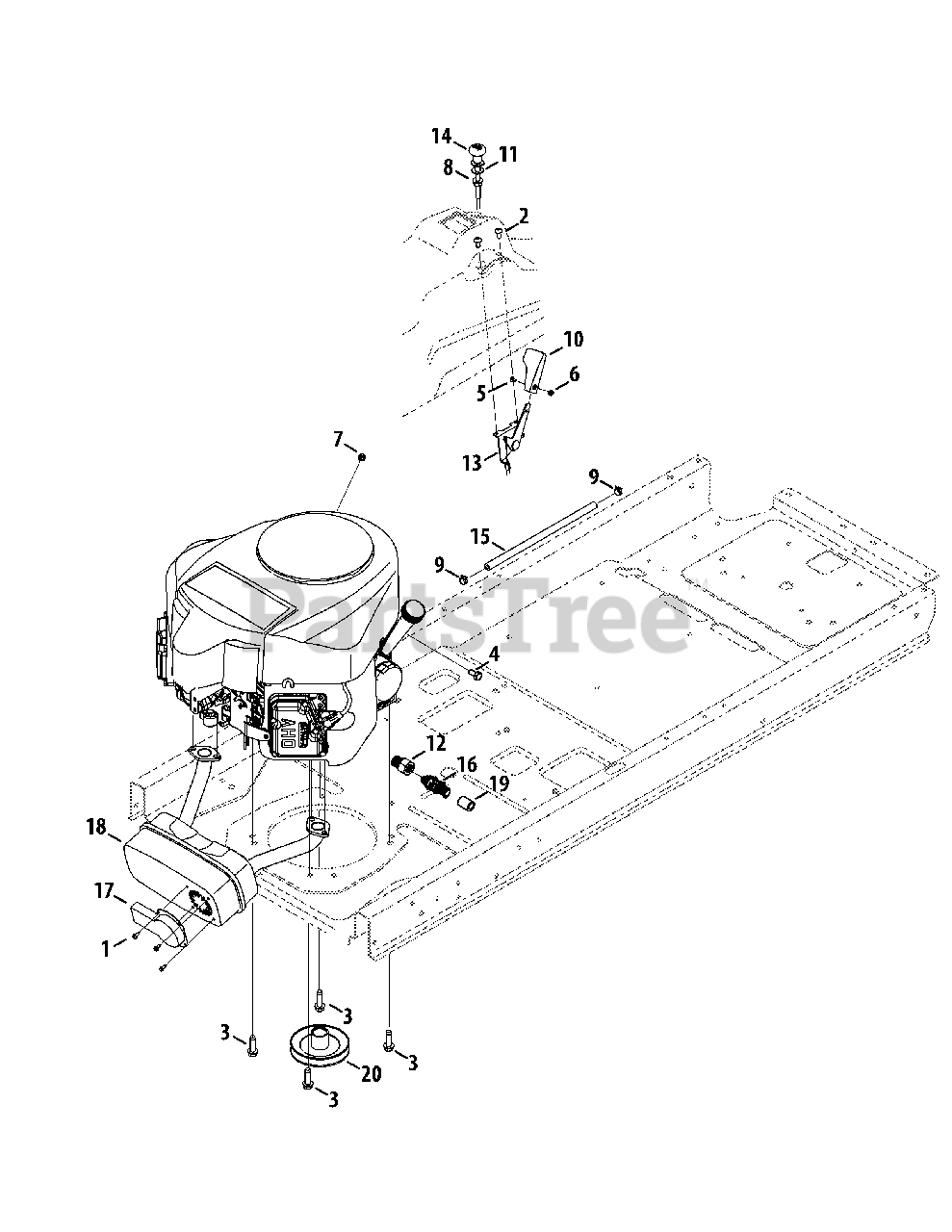

Engine Accessories (Kawasaki) Parts Diagram

  • Title

1

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 710-05070

Screw, 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

3

Cub Cadet 710-1315

Tap Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 710-1376

Hex Screw, M8-1.25 x 16

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3217

Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

6

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 726-0205

Hose Clamp, .490 Dia.

$3.99

$

In Stock, Qty 18

0

10

Cub Cadet 731-09637

Throttle Control Knob

$8.49

$

In Stock, only 4 left!

0

11

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 737-04138

Oil Drain

$25.99

$

In Stock, only 3 left!

0

13

Cub Cadet 946-05131

Throttle Cable
(Superseded to 946-05131A)

$43.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 946-1085A

Choke Cable

$30.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-10349-28

Fuel Hose, 1/4

$41.99

$

In Stock, only 1 left!

0

16

Cub Cadet 951-10517A

Oil Drain

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 751-11053A

Deflector, Muffler, Long
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

18

Cub Cadet 751-11471A

Muffler, Kawasaki Twin
(Superseded to 951-11471F)

$150.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

20

Cub Cadet 756-04494

Engine Pulley
(Superseded to 756-04494C)

$35.99

$

In Stock, Qty 17

0
