RZT-L42 KH (17CRCACS009) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2018) Drive Parts Diagram

42" RZT Zero-Turn Mower, Kohler

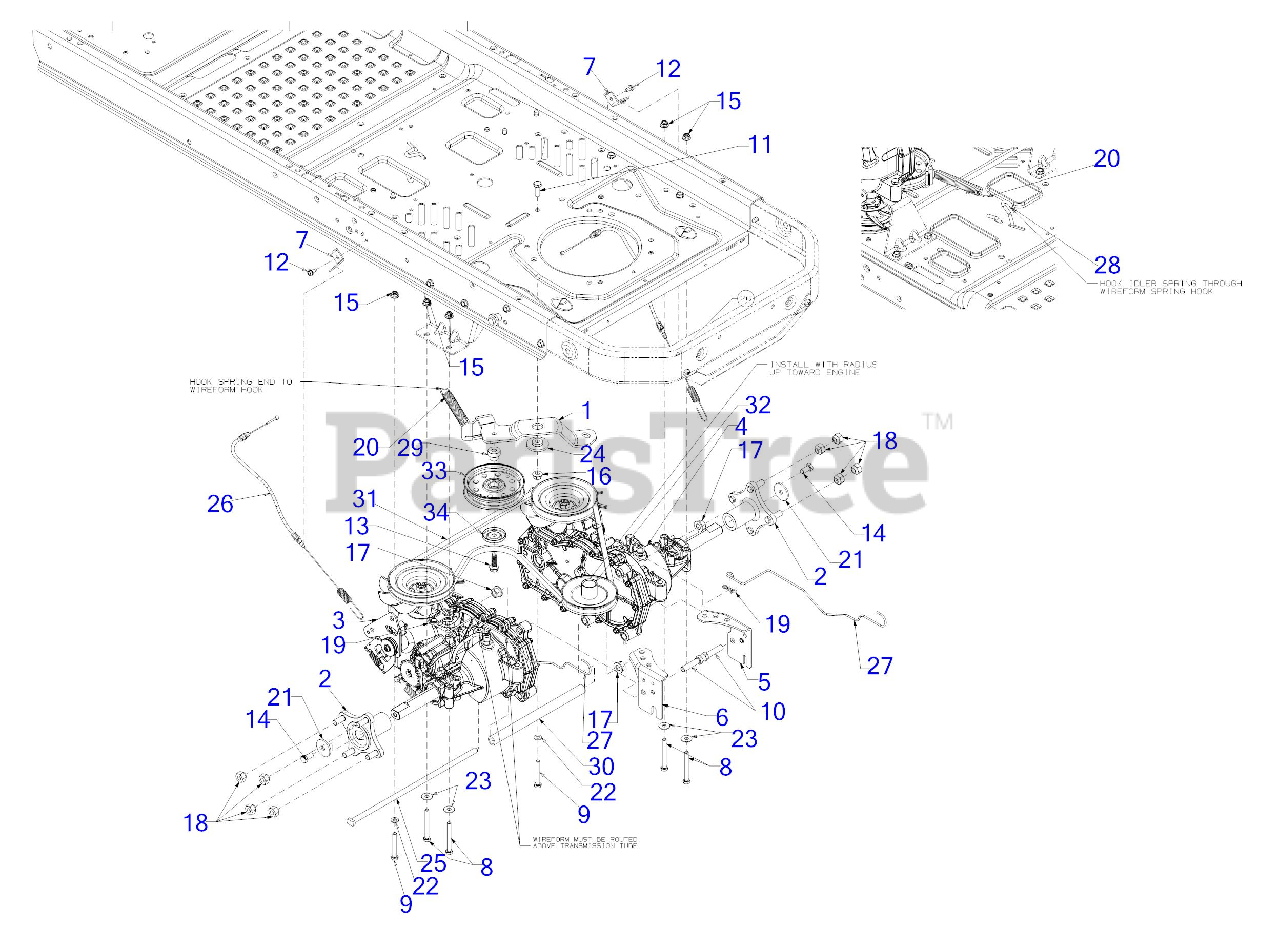

Drive Parts Diagram

  • Title

1

Cub Cadet 903-05256

IDLER BRACKET ASSEMBLY
(Superseded to 603Z05256)

$42.99

$

In Stock, only 2 left!

0

2

Cub Cadet 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-05128A

HYDRO TRANSMISSION ASSEMBLY (LH)
(Superseded to 918-05128B)

Note: (See Separate Breakdown)

$1467.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-05129A

HYDRO TRANSMISSION ASSEMBLY (RH)
(Superseded to 918-05129B)

Note: (See Separate Breakdown)

$1467.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08614A-0637

TRANSMISSION MOUNTING BRACKET (RH)

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08615A-0637

TRANSMISSION MOUNTING BRACKET (LH)

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09220

BRAKE CABLE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09220-0637

Brake Cable Bracket - POWDER BLACK (0637)

$4.49

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-04092

SCREW 7/16-20 x 1.75 GR 5

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 5

0

19

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 732-05559

EXTENSION SPRING .75 DIA x 5.87

$14.99

$

In Stock, only 1 left!

0

21

Cub Cadet 936-0227

FLAT WASHER .390x1.500x.134
(Superseded to 736-0227)

$

$

Not available

22

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

23

Cub Cadet 736-0371

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

25

Cub Cadet 738-04192B

SUPPORT TUBE ROD

$21.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 946-05008

PARK BRAK CABLE

$35.99

$

In Stock, Qty 7

0

27

Cub Cadet 747-05657B

HYDRO BYPASS ROD

$14.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 747-06074A

IDLER SPRING HOOK
(Superseded to 747-06074)

$23.99

$

In Stock, only 2 left!

0

29

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 750-04561A

SUPPORT TUBE

$26.99

$

In Stock, only 1 left!

0

31

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, only 4 left!

0

32

Cub Cadet 756-04494B

TRANSMISSION DRIVE PULLEY
(Superseded to 756-04494C)

$35.99

$

In Stock, Qty 17

0

33

Cub Cadet 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

34

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+
