RZT-L42 KH (17BRCACS010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2015) Front Axle 42-Inch Parts Diagram

42" RZT Zero-Turn Mower, Kohler

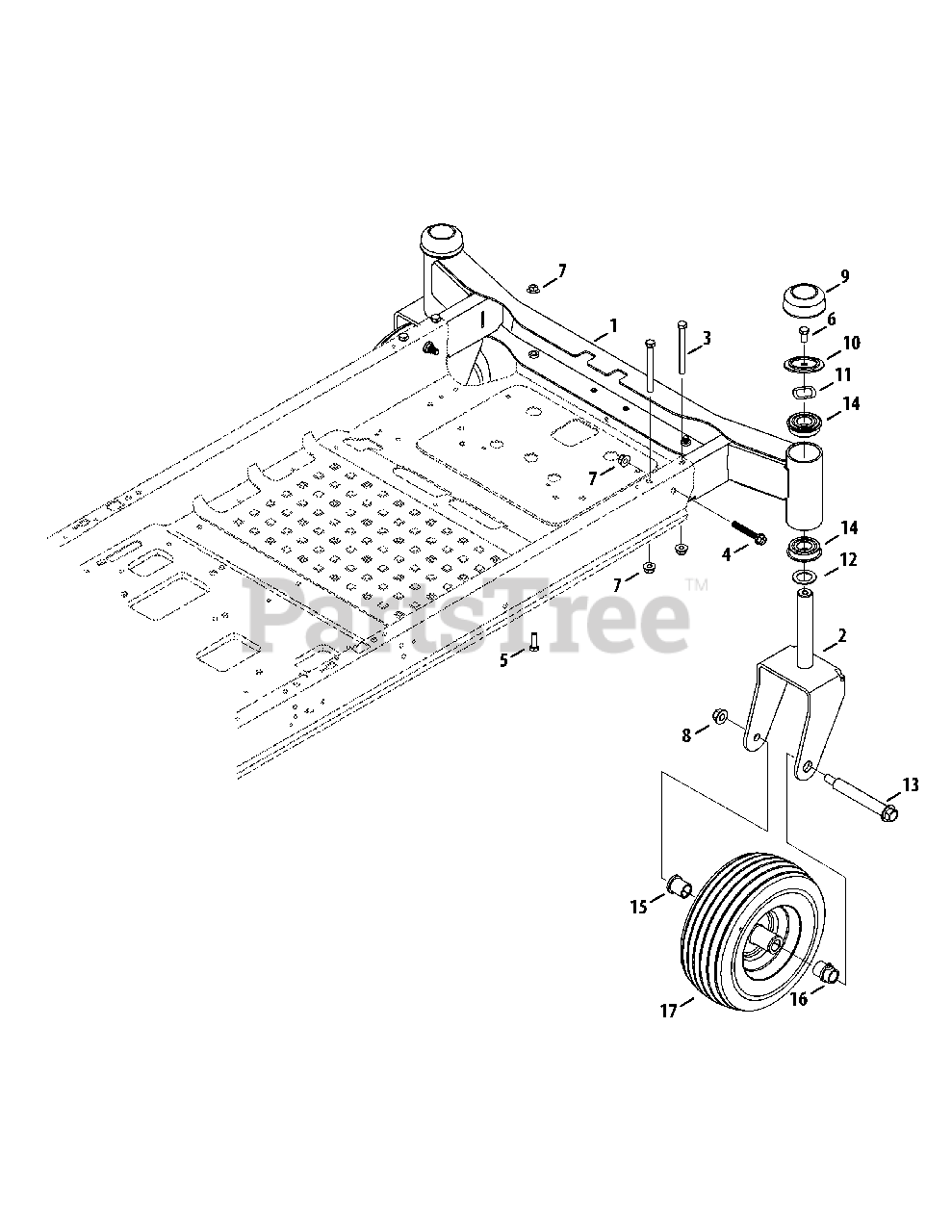

Front Axle 42-Inch Parts Diagram

  • Title

1

Cub Cadet 603-05134-0637

Front Axle

$469.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05057C-0637

Caster Wheel Bracket
(Superseded to 603-05057D-0637)

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 18

0

8

Cub Cadet 712-04150

Flange Lock Nut, 1/2-13

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-09347

Cap

$5.99

$

In Stock, Qty 5

0

10

Cub Cadet 738-05091

Shoulder Spacer, 2.50 x .200

$8.49

$

In Stock, only 2 left!

0

11

Cub Cadet 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.99

$

In Stock, Qty 19

0

12

Cub Cadet 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 738-04182B

Shoulder Screw, 1/2-13

$26.99

$

In Stock, Qty 20+

0

14

Cub Cadet 941-05022A

Ball Bearing

$20.99

$

In Stock, only 1 left!

0

15

Cub Cadet 741-0516B

Flange Bearing, .76 x 1.0 x 1.2

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet 741-0990B

Flange Bearing, .76 ID w/Lube Ftg.

$10.99

$

In Stock, Qty 20+

0

17

Cub Cadet 634-04212B

Wheel Assembly, 11.0 x 4.0 x 5.0
(Superseded to 634-04212C)

$103.99

$

In Stock, Qty 6

0
