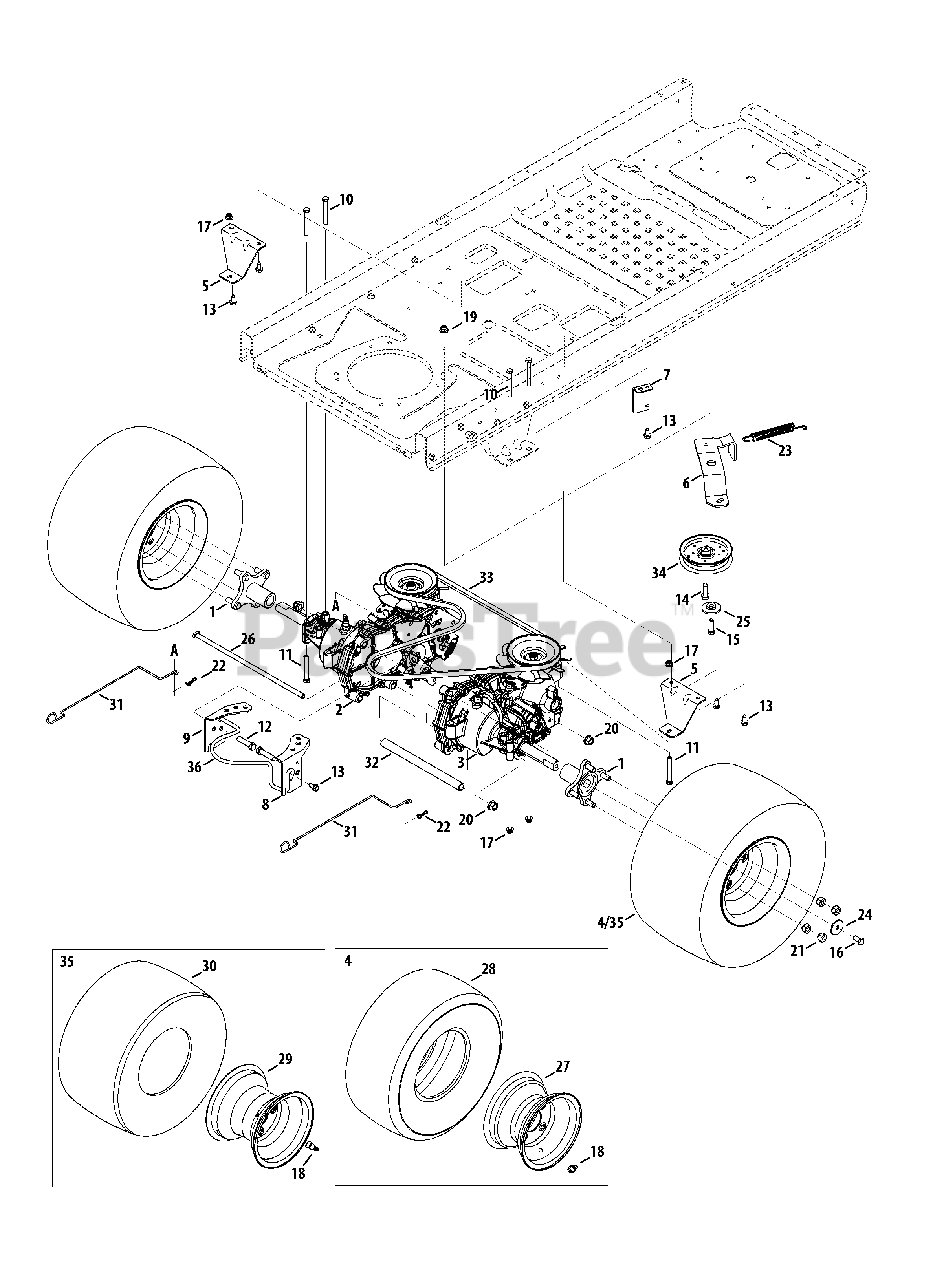

RZT-L42 (17WFCACS009) - Cub Cadet 42" RZT Zero-Turn Mower (2013) Drive System Parts Diagram

42" RZT Zero-Turn Mower

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-04317

Wheel Hub Assembly

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-05128

Transmission Assembly, LH
(Superseded to 918-05128B)

$1467.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-05129

Transmission Assembly, RH
(Superseded to 918-05129B)

$1467.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-04293-0931

Complete Wheel, 18 x 8.5-8 (42-Inch & 46)
(Superseded to 634Z04293-0499)

$132.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08570-0637

Transmission Mounting Bracket

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08605

Idler Bracket
(Superseded to 603Z05256)

$42.99

$

In Stock, only 3 left!

0

7

Cub Cadet 703-08613-0637

Spring Mounting Bracket
(Superseded to 703-08613A-0637)

$5.49

$

In Stock, Qty 6

0

8

Cub Cadet 703-08614A-0637

Transmission Bracket

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08615A-0637

Transmission Bracket

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0176

Hex Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0395

Hex Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-04092

Hex Screw, 7/16-20 x 1.75

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$4.49

$

In Stock, only 3 left!

0

15

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 934-0255

Valve Tubeless

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

22

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

23

Cub Cadet 732-04229

Extension Spring, .75 Dia. x 6.02

$20.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 936-0227

Flat Washer, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

25

Cub Cadet 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

26

Cub Cadet 738-04423

Rod, .405 Dia. x 14.0 LG

$

$

Not available

27

Cub Cadet 603-04173-0499

Rim Only

$88.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 734-04246-0901

Tire Only, 18 x 8.5-8
(Superseded to 734-04246-0906)

$85.99

$

In Stock, only 2 left!

0

29

Cub Cadet n/a

Rim Only, (50-Inch & 54-Inch)

Note: Not used on this model

$

$

Currently unavailable

30

Cub Cadet n/a

Tire Only, 18 x 9.5-8 (50-Inch & 54-Inch)

Note: Not used on this model

$

$

Currently unavailable

31

Cub Cadet 747-05657

Bypass Rod
(Superseded to 747-05657B)

$14.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-04561

Tube, .51 ID x .75 OD x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

33

Cub Cadet 954-04317

Belt, A-Type x 67.0
(Superseded to 954-04317A)

$50.99

$

In Stock, Qty 7

0

34

Cub Cadet 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

35

Cub Cadet n/a

Complete Wheel, 18 x 9.5-8 (50-Inch & 54-Inch)

Note: Not used on this model

$

$

Currently unavailable

36

Cub Cadet 747-06037

Engine Keeper Rod (42-Inch)

$6.49

$

Usually ships in 3-6 days

0
