RZT-L42 (17ARCACS010) - Cub Cadet 42" RZT Zero-Turn Mower (2014) Mower Deck 42-Inch Parts Diagram

42" RZT Zero-Turn Mower

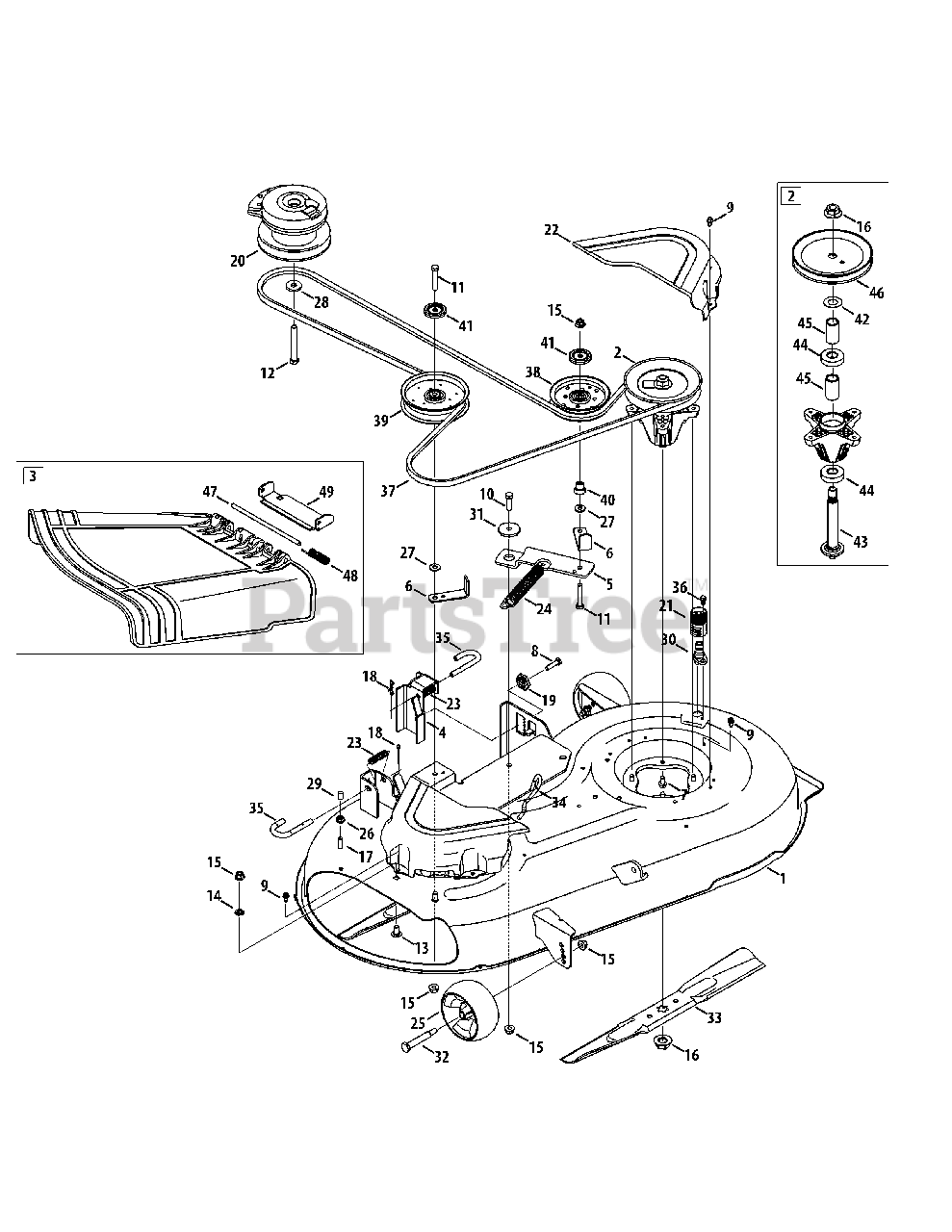

Mower Deck 42-Inch Parts Diagram

  • Title
1

Cub Cadet 903-05125-4021

42" Deck
(Superseded to 753-11266-0637)

$767.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04822A

Spindle Assembly
(Superseded to 918-04822B)

$121.99

$

In Stock, only 1 left!

0

3

Cub Cadet 631-05191

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

Cub Cadet 683-05124-4021

Deck Lift Bracket
(Superseded to 683-05124-0637)

$44.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08336C-0637

Pivot Idler Bracket
(Superseded to 703-08336E)

$31.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-09583-0637

Bracket Belt Guard

$13.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

9

Cub Cadet 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

11

Cub Cadet 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3157A

Screw, 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

18

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

20

Cub Cadet 917-05121

Electric PTO Clutch

$477.99

$

In Stock, only 2 left!

0

21

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

22

Cub Cadet 731-08698

Belt Cover
(Superseded to 731-08698B)

$21.99

$

In Stock, only 3 left!

0

23

Cub Cadet 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 732-04960

Extension Spring, .94 Dia. x 7.57

$14.99

$

In Stock, only 3 left!

0

25

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

In Stock, Qty 10

0

28

Cub Cadet 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

29

Cub Cadet 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

32

Cub Cadet 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

33

Cub Cadet 942-04312

Blade, 2 in 1, 21.23
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

34

Cub Cadet 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

35

Cub Cadet 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 2 left!

0

36

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

$50.99

$

In Stock, only 3 left!

0

38

Cub Cadet 756-05042

Idler Pulley, 4.25 Dia.

$31.99

$

In Stock, Qty 20+

0

39

Cub Cadet 756-04511B

Idler Pulley, 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

40

Cub Cadet 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

42

Cub Cadet 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

44

Cub Cadet 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

45

Cub Cadet 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

46

Cub Cadet 956-1227

Deck Pulley

$26.99

$

In Stock, only 4 left!

0

47

$8.99

$

In Stock, Qty 8

0

48

Cub Cadet 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 9

0

49

Cub Cadet 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0
