RZT 54 x (967671101-00) - RedMax 54" Zero-Turn Riding Mower (2017-11) MOWER DECK / CUTTING DECK Parts Diagram

54" Zero-Turn Riding Mower

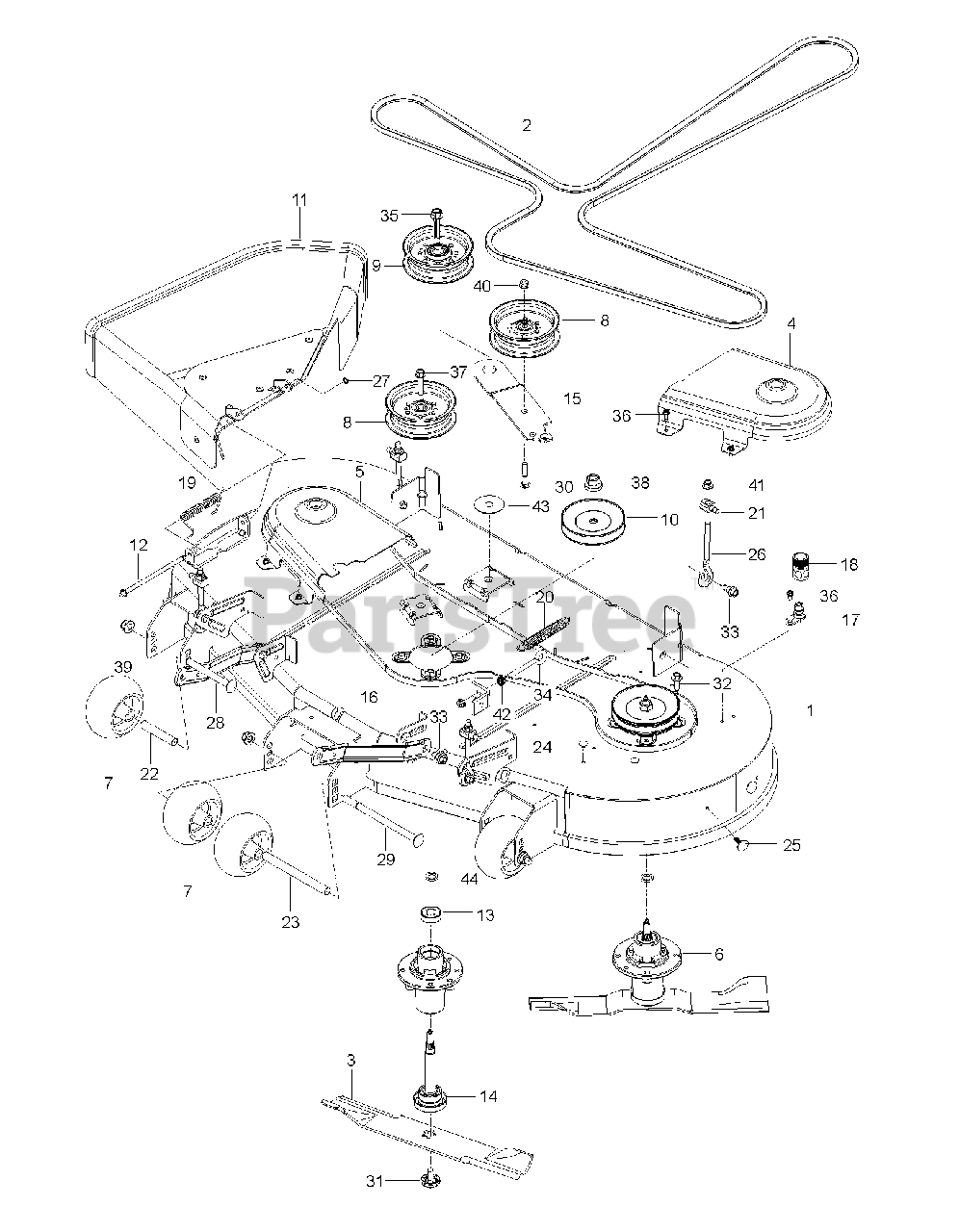

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

RedMax 582773205

DECK.54W/SFTY.DCLS.CC.BLACK428

$1941.99

$

Usually ships in 3-10 days

0

2

RedMax 582236501

BELT CLEARCUT 54, MZ DECK DRIV

$79.99

$

Usually ships in 3-10 days

0

3

RedMax 582062501

BLADE CC54 PZ STYLE HIGH LIFT,
(Superseded to 582062502)

$34.99

$

In Stock, only 3 left!

0

4

RedMax 590304405

Mandrel Cover, 54" Clearcut, LH

$24.99

$

Usually ships in 3-10 days

0

5

RedMax 590304205

Mandrel Cover, 54" Clearcut RH B

$26.99

$

Usually ships in 3-10 days

0

6

RedMax 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, only 4 left!

0

7

RedMax 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

8

RedMax 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

9

RedMax 532197380

RB PULLEY.IDLER.4.50/HUB SPEC
(Superseded to 532196104)

$43.99

$

In Stock, Qty 10

0

10

RedMax 532175708

PULLEY.MANDREL.CRD 107CM.DOM.

$17.99

$

Usually ships in 3-10 days

0

11

RedMax 590632204

DEFLECTOR ASSY 54 CLEARCUT RES

$79.99

$

Usually ships in 3-10 days

0

12

RedMax 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

13

RedMax 532110485

BEARING

$13.99

$

In Stock, Qty 6

0

14

RedMax 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$28.99

$

In Stock, Qty 13

0

15

RedMax 582219602

ARM IDLER ARM, CLEARCUT 54 BLA

$5.99

$

Usually ships in 3-10 days

0

16

RedMax 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

17

RedMax 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

18

RedMax 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

19

RedMax 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 8

0

20

RedMax 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 1 left!

0

21

RedMax 532176205

TRUNNION

$7.99

$

In Stock, Qty 10

0

22

RedMax 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$6.99

$

In Stock, Qty 20+

0

23

RedMax 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

24

RedMax 589813301

PLUG CHRISTMAS TREE

$3.49

$

In Stock, only 4 left!

0

25

RedMax 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

26

RedMax 588783301

LINK.ADJUSTABLE

$11.99

$

Usually ships in 3-10 days

0

27

RedMax 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD
(Superseded to 510022302)

$6.99

$

In Stock, Qty 9

0

29

RedMax 872140864

RHSNB 1/2-13 X 8 GR5 ZD

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 872110616

BOLT
(Superseded to 596136301)

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

32

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

33

RedMax 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

34

RedMax 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

36

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

37

RedMax 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

38

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

39

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

40

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

RedMax 532400244

NUT.FLANGE.LOCK
(Superseded to 588252901)

$4.99

$

In Stock, Qty 20+

0

42

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

44

RedMax 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0
