RZT 54 x (967671101-00) - RedMax 54" Zero-Turn Riding Mower (2017-11) HYDRAULIC FRAME Parts Diagram

54" Zero-Turn Riding Mower

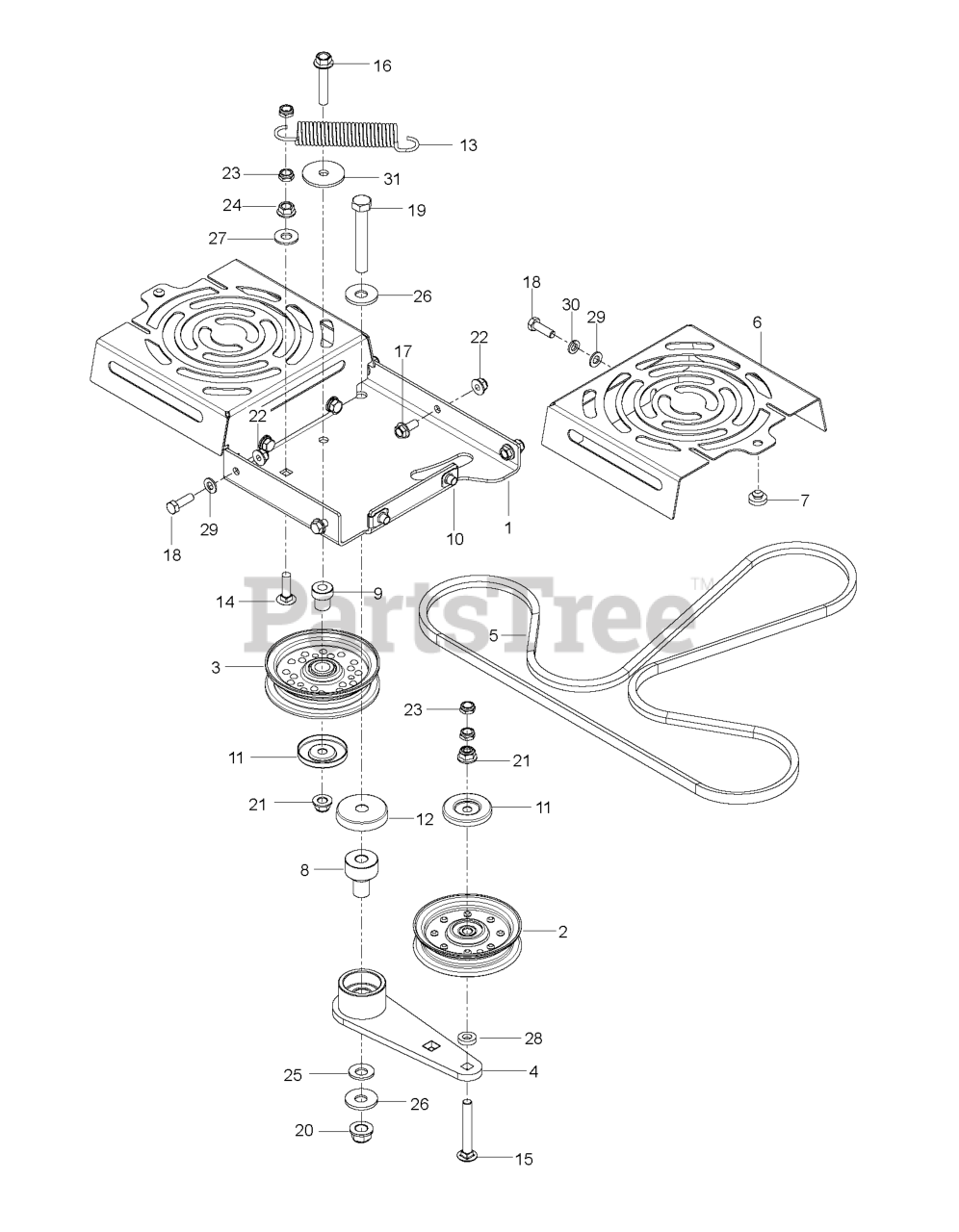

HYDRAULIC FRAME Parts Diagram

  • Title

1

RedMax 586670402

PLATE.PNT.IDLER.SUPPORT.E-DIP

$26.99

$

Usually ships in 3-10 days

0

2

RedMax 539976688

IDLER PULLEY
(Superseded to 596739801)

$34.99

$

In Stock, only 2 left!

0

3

RedMax 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$26.99

$

In Stock, only 1 left!

0

4

RedMax 510041603

ARM, IDLER, STEEL, W/BGS

$56.99

$

Usually ships in 3-10 days

0

5

RedMax 574870901

BELT, HYDRO, 3400

$39.99

$

Usually ships in 3-10 days

0

6

RedMax 584994202

SHIELD FAN BLACK

$13.99

$

Usually ships in 3-10 days

0

7

RedMax 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

8

RedMax 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

9

RedMax 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

10

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

11

RedMax 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, only 2 left!

0

12

RedMax 539114662

SHIELD, DUST
(Superseded to 596394601)

$3.99

$

In Stock, only 3 left!

0

13

RedMax 510254401

SPRING, PUMP
(Superseded to 510254402)

$6.99

$

In Stock, only 1 left!

0

14

RedMax 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 874490632

HHFS 3/8-16 X 2.0 GD 5
(Superseded to 596319401)

$2.49

$

Usually ships in 3-10 days

0

17

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, only 2 left!

0

19

RedMax 874780852

HCS 1/2-13 X 3-1/4 GD 5 ZD

$3.49

$

Usually ships in 3-10 days

0

20

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

21

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

22

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

23

RedMax 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

24

RedMax 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0

27

RedMax 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 7

0

28

RedMax 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 15

0

29

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

30

RedMax 539990187

WASHER 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 539111897

WASHER, 3/8 SPEC
(Superseded to 596917301)

$5.99

$

In Stock, Qty 6

0
