RZT 54 x (967671101-00) - RedMax 54" Zero-Turn Riding Mower (2017-11) DRIVE Parts Diagram

54" Zero-Turn Riding Mower

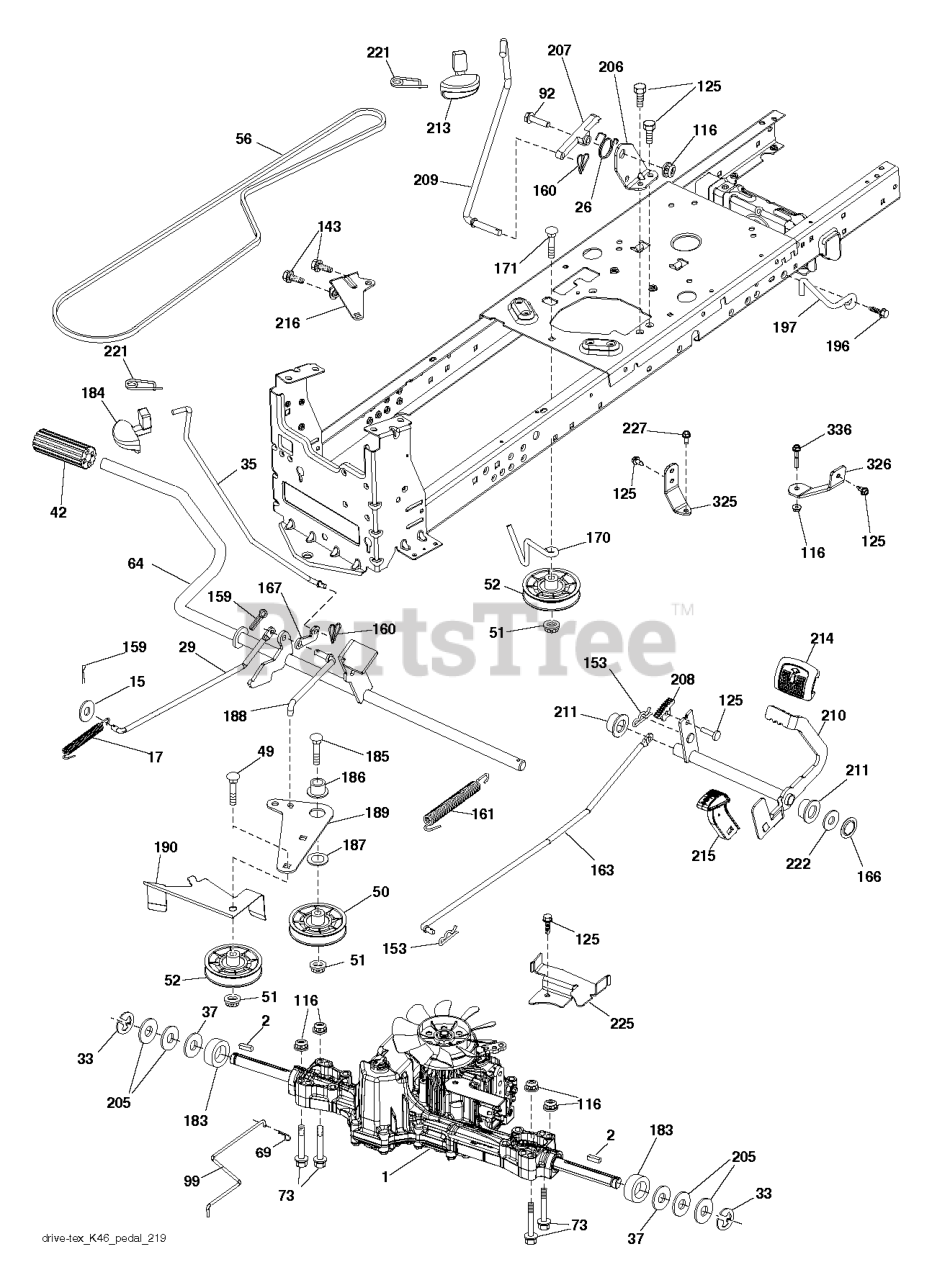

DRIVE Parts Diagram

  • Title
1

RedMax 000000000

Note: TRANSAXLE TUFFTORQ K46BT (532426120)

$

$

Not available

2

RedMax 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

$4.99

$

In Stock, Qty 5

0

17

RedMax 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

26

RedMax 532199679

SPRING.RETURN.CRUISE

$6.49

$

In Stock, only 1 left!

0

29

RedMax 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

RedMax 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 2 left!

0

37

RedMax 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

42

RedMax 532008883

PEDAL COVER

$6.49

$

Usually ships in 3-10 days

0

49

$4.99

$

In Stock, only 1 left!

0

50

RedMax 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

51

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

RedMax 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

$31.99

$

In Stock, Qty 20+

0

64

RedMax 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

69

RedMax 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

In Stock, only 1 left!

0

73

$4.99

$

In Stock, only 3 left!

0

92

$4.99

$

In Stock, only 3 left!

0

99

RedMax 582404501

ARM.PIVOTING.TCRD.GEN2.5.BAGGE

$6.99

$

Usually ships in 3-10 days

0

116

RedMax 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

125

RedMax 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

143

$3.99

$

In Stock, only 2 left!

0

153

RedMax 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

159

$3.99

$

In Stock, only 1 left!

0

160

RedMax 596029401

GSPW Retainers

$4.99

$

In Stock, only 1 left!

0

161

RedMax 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

163

$26.99

$

In Stock, only 1 left!

0

166

RedMax 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

RedMax 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

RedMax 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, only 1 left!

0

171

$3.99

$

Usually ships in 3-10 days

0

183

RedMax 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

184

RedMax 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

$4.99

$

In Stock, Qty 10

0

186

RedMax 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

$5.99

$

In Stock, Qty 12

0

188

RedMax 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

189

RedMax 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$7.99

$

In Stock, Qty 5

0

190

RedMax 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 2 left!

0

196

RedMax 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

$5.99

$

In Stock, only 2 left!

0

205

$4.99

$

In Stock, Qty 20+

0

206

RedMax 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

Usually ships in 3-10 days

0

207

$6.99

$

Usually ships in 3-10 days

0

208

$5.99

$

In Stock, only 4 left!

0

209

$6.99

$

In Stock, only 1 left!

0

210

RedMax 532400980

ROCKER.ASM.PEDAL.CONTR

$37.99

$

In Stock, only 1 left!

0

211

RedMax 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

213

RedMax 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

214

RedMax 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

RedMax 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$20.99

$

In Stock, only 1 left!

0

216

RedMax 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

221

RedMax 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

222

RedMax 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

225

RedMax 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

227

$2.49

$

In Stock, only 2 left!

0

325

RedMax 585668502

BRACKET.TRQ.STP.46.20".TIRE.LH

$

$

Not available

326

RedMax 585670802

BRCKT.PNT.TRQ.STP.46.20TIRE.RH

$

$

Not available

336

$4.99

$

In Stock, only 1 left!

0
