RZT-54 KW (17YI2ACK010) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2012) Front Axle (13 x 5) Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

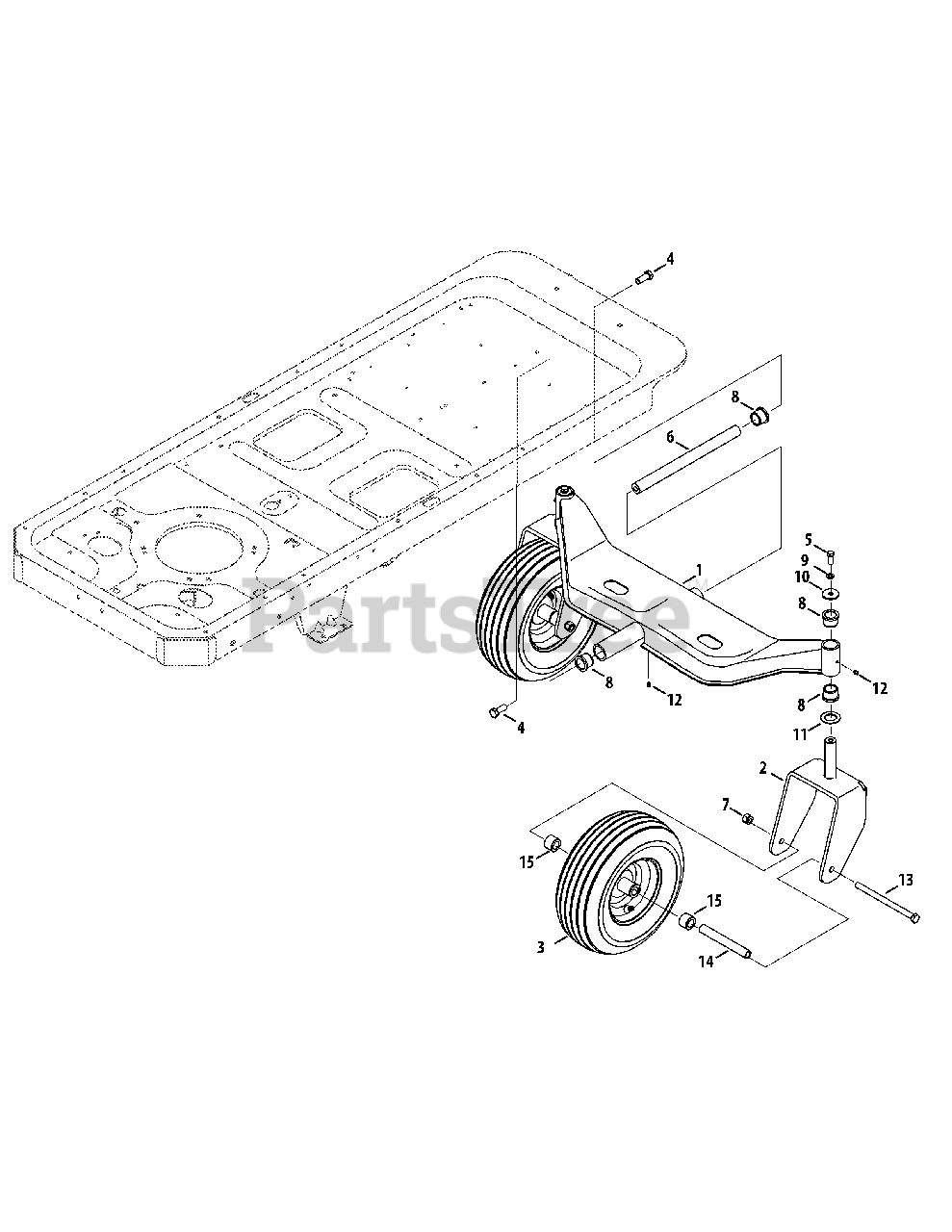

Front Axle (13 x 5) Parts Diagram

  • Title
1

Cub Cadet 603-04385A-4021

Front Pivot Axle

$

$

Not available

2

Cub Cadet 603-04370-4021

Castor Wheel Bracket
(Superseded to 603-04370A-4021)

$120.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 634-04321A-0931

Wheel Assembly, 13 x 5-6
(Superseded to 634-04321A-0936)

Note: (Grooved)

$

$

Not available

3

Cub Cadet 734-04255A-0901

Tire, 13 x 5.0-6 Ribbed/Grooved
(Superseded to 734-04255A-0906)

Note: (not shown)(If the tire being replaced is Grooved, use this tire)

$82.99

$

In Stock, Qty 6

0

3

Cub Cadet 02002105

Tire, 13 x 5.0-6 Smooth

Note: (not shown)If the tire being replaced is Smooth, use this tire)

$151.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

3

Cub Cadet 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

3

Cub Cadet 737-3034

Grease -#251 EP, Tube

Note: (not shown)

$

$

Not available

4

Cub Cadet 710-04186

Hex Lock Screw, 1/2-13 x 1.25

$7.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-04228

Axle Shaft

$77.99

$

In Stock, only 1 left!

0

7

Cub Cadet 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

8

Cub Cadet 731-05500

Flange Bearing, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

11

Cub Cadet 736-0250

Flat Washer, 1.0 x 1.75 x .107

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 937-3000

Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-04652

Bolt, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 750-04775A

Spacer, .51ID x .75OD x 5.825

$28.99

$

In Stock, Qty 20+

0

15

Cub Cadet 750-04792

Hub, .76 x 1.23 x .92 Lg.

$7.99

$

In Stock, Qty 20+

0
