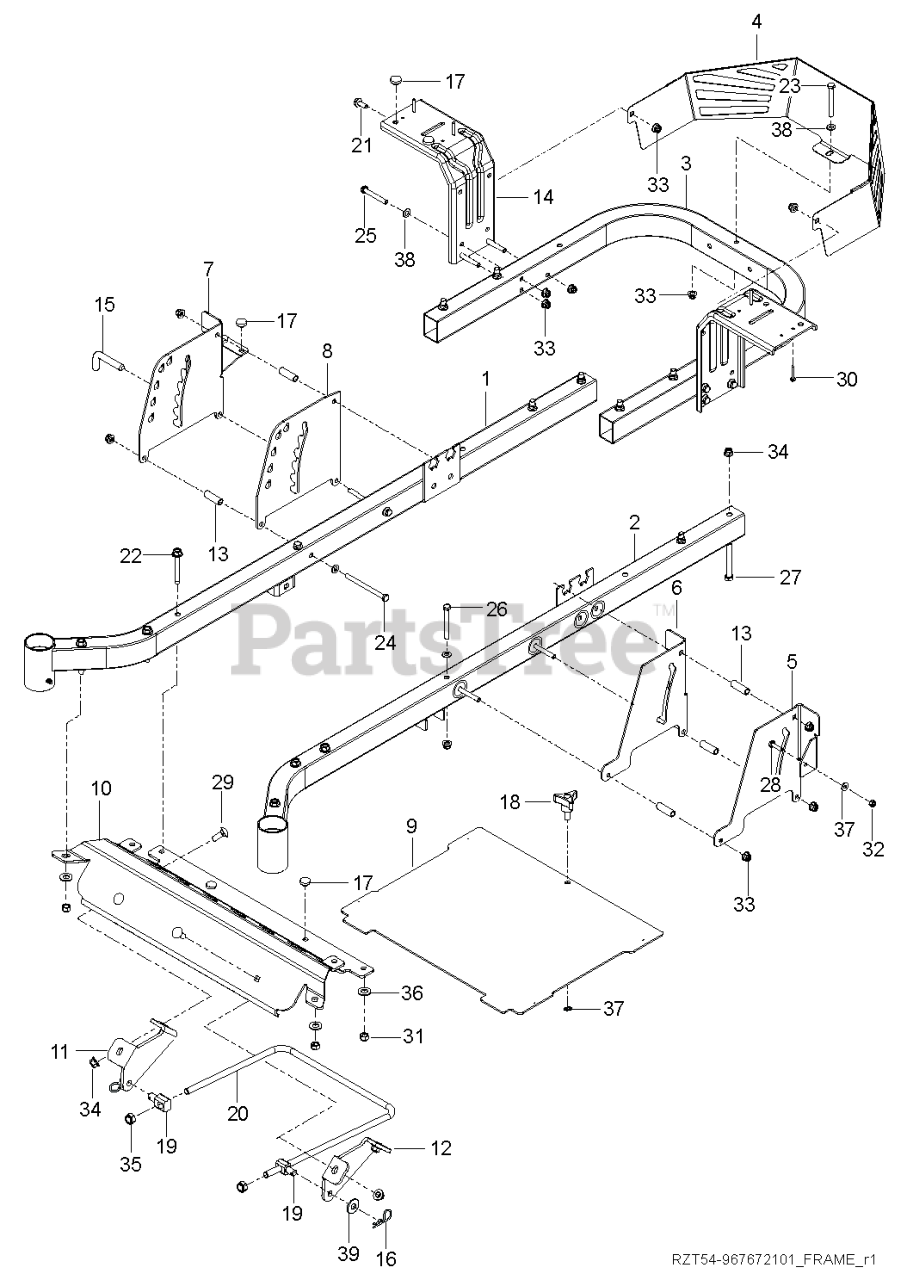

RZT 54 (967672101-00) - RedMax 54" Zero-Turn Riding Mower (2017-10) FRAME Parts Diagram

54" Zero-Turn Riding Mower

FRAME Parts Diagram

  • Title

1

RedMax 589283407

FRAME TUBE RZ MAIN WELDMENT RI

$85.99

$

Usually ships in 3-10 days

0

2

RedMax 589283307

FRAME TUBE RZ MAIN WELDMENT LE

$72.99

$

Usually ships in 3-10 days

0

3

RedMax 586441008

FRAME REAR TUBE SNAPPER RED X6

$56.99

$

Usually ships in 3-10 days

0

4

RedMax 586214416

GUARD HEAT SHIELD,RZ,21IN FRAM

$79.99

$

Usually ships in 3-10 days

0

5

RedMax 510261802

PLATE, OUTER BRAKE, BLACK

$60.99

$

Usually ships in 3-10 days

0

6

RedMax 510206703

PLATE, BRAKE LATCH, BLACK

$48.99

$

Usually ships in 3-10 days

0

7

RedMax 580528002

PLATE.DECK HEIGHT.PNT.431.RZ

$13.99

$

Usually ships in 3-10 days

0

8

RedMax 510240502

PLATE, DECK HEIGHT, BLACK

$21.99

$

Usually ships in 3-10 days

0

9

RedMax 522842909

KIT.PLATE.FLOOR.W/DCL.REDM.672

$74.99

$

Usually ships in 3-10 days

0

10

RedMax 522740709

FOOT REST, MED BLK

$157.99

$

Usually ships in 3-10 days

0

11

RedMax 581222802

MOUNT.STRUT.RH.431

$7.99

$

Usually ships in 3-10 days

0

12

RedMax 581222902

MOUNT.STRUT.LH.431

$7.99

$

Usually ships in 3-10 days

0

13

RedMax 580486101

SPACER.334.ID.5.OD.1.5.L
(Superseded to 580486102)

$4.99

$

In Stock, only 1 left!

0

14

RedMax 580501302

FENDER.SUPPORT.PNT.X431

$37.99

$

Usually ships in 3-10 days

0

15

RedMax 510016503

PIN.DECK.HEIGHT.RZ
(Superseded to 510016504)

$6.49

$

In Stock, only 3 left!

0

16

RedMax 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

18

RedMax 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

19

RedMax 581514301

SWIVEL.TRUNION.LINK.DECK.FRONT

$4.99

$

In Stock, only 1 left!

0

20

RedMax 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

21

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 577117701

HHFS 3/8-16 X 3 GRD 5 ZD
(Superseded to 577117702)

$4.99

$

Usually ships in 3-10 days

0

23

RedMax 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

24

RedMax 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$

$

Not available

26

RedMax 874780544

BOLT HEX
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

27

RedMax 874780648

BOLT.HEX.FIN.3/8-16 X 3.GR5
(Superseded to 596564405)

$3.99

$

In Stock, Qty 10

0

28

RedMax 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

29

RedMax 539110674

SCR #10-12X1-1/2HEX WASH HD ZD

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

31

RedMax 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

32

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

35

RedMax 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 7

0

36

RedMax 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 5

0

37

RedMax 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days
