RZT-54 (17WI2ACK010) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2010) Engine Connection Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

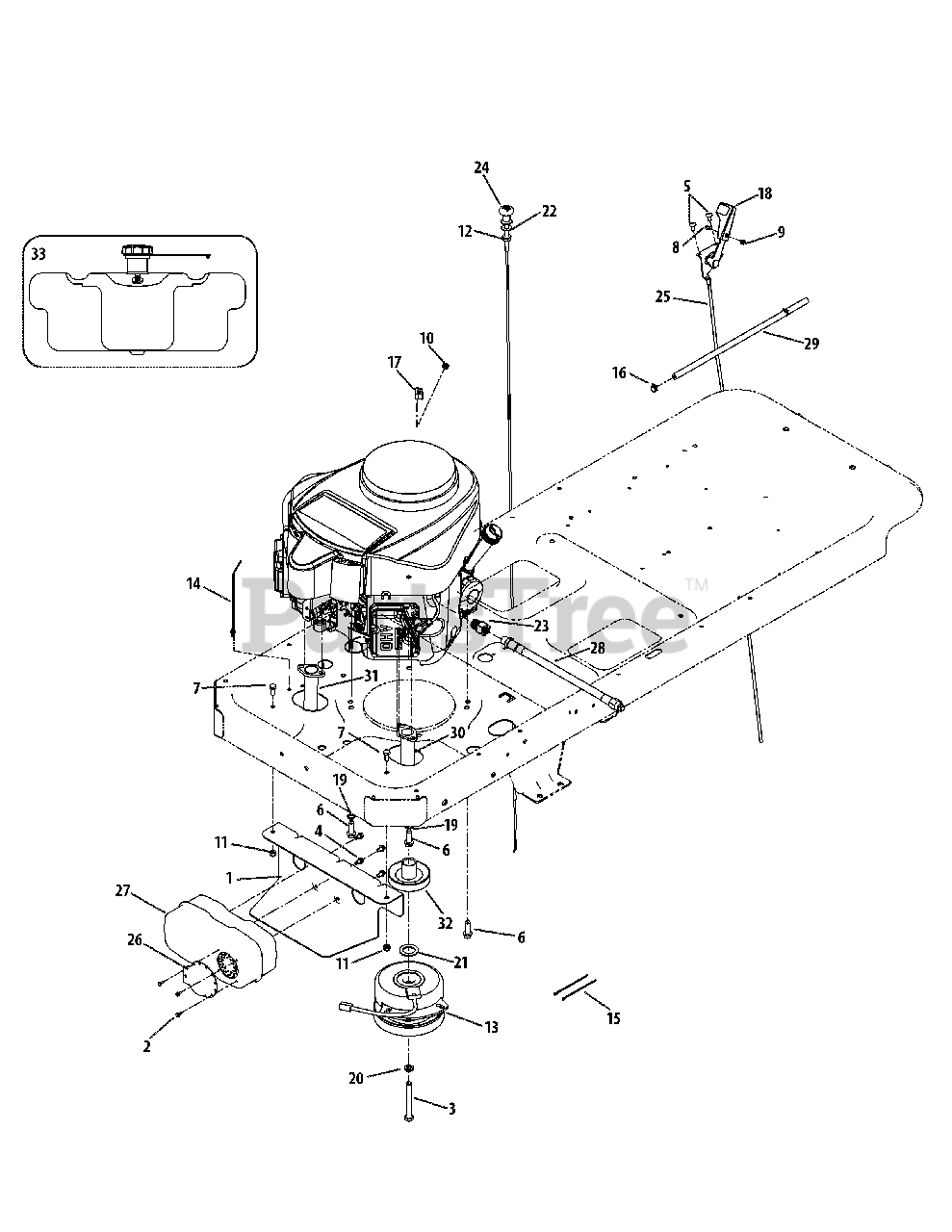

Engine Connection Parts Diagram

  • Title

1

Cub Cadet 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04379A

Hex Cap Lock Screw, 7/16-20 x 3.5

$6.49

$

In Stock, only 3 left!

0

4

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1017

AB Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

6

Cub Cadet 710-04683

Hex Washer Screw, 3/8-16 x 1.25
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

7

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

9

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

10

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

11

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 917-1774C

Electric PTO Clutch
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

14

Cub Cadet 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

21

Cub Cadet 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 737-04138

Hex Fitting

$25.99

$

In Stock, only 3 left!

0

24

Cub Cadet 946-04214

Choke Cable

$47.99

$

In Stock, only 1 left!

0

25

Cub Cadet 946-04581

Throttle Cable

$47.99

$

In Stock, only 3 left!

0

26

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

27

Cub Cadet 751-0616B

Dual Inlet Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

28

Cub Cadet 751-10291

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-10770

RH Exhaust Pipe

$

$

Not available

31

Cub Cadet 751-10771

LH Exhaust Pipe

$58.99

$

In Stock, only 1 left!

0

32

Cub Cadet 756-04376

Electric PTO Engine Pulley

$44.99

$

In Stock, only 1 left!

0

33

Cub Cadet N/A

Fuel Tank Assembly

$

$

Currently unavailable

33

Cub Cadet 751-10692

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

33

Cub Cadet 935-0149

Fuel Tank Bushing

Note: Not shown

$2.99

$

In Stock, Qty 20+

0

33

Cub Cadet 751-10442

Fuel Pick-Up Bushing

Note: Not shown

$32.99

$

In Stock, Qty 20+

0

33

Cub Cadet 751-10703A

Fuel Cap
(Superseded to 951-12428)

Note: Not shown

$43.99

$

In Stock, Qty 15

0
