RZT-54 (17WF2ACK010) - Cub Cadet 54" RZT Zero-Turn Mower, Kohler (2011) Rear Drive & Wheels 54-Inch Parts Diagram

54" RZT Zero-Turn Mower, Kohler

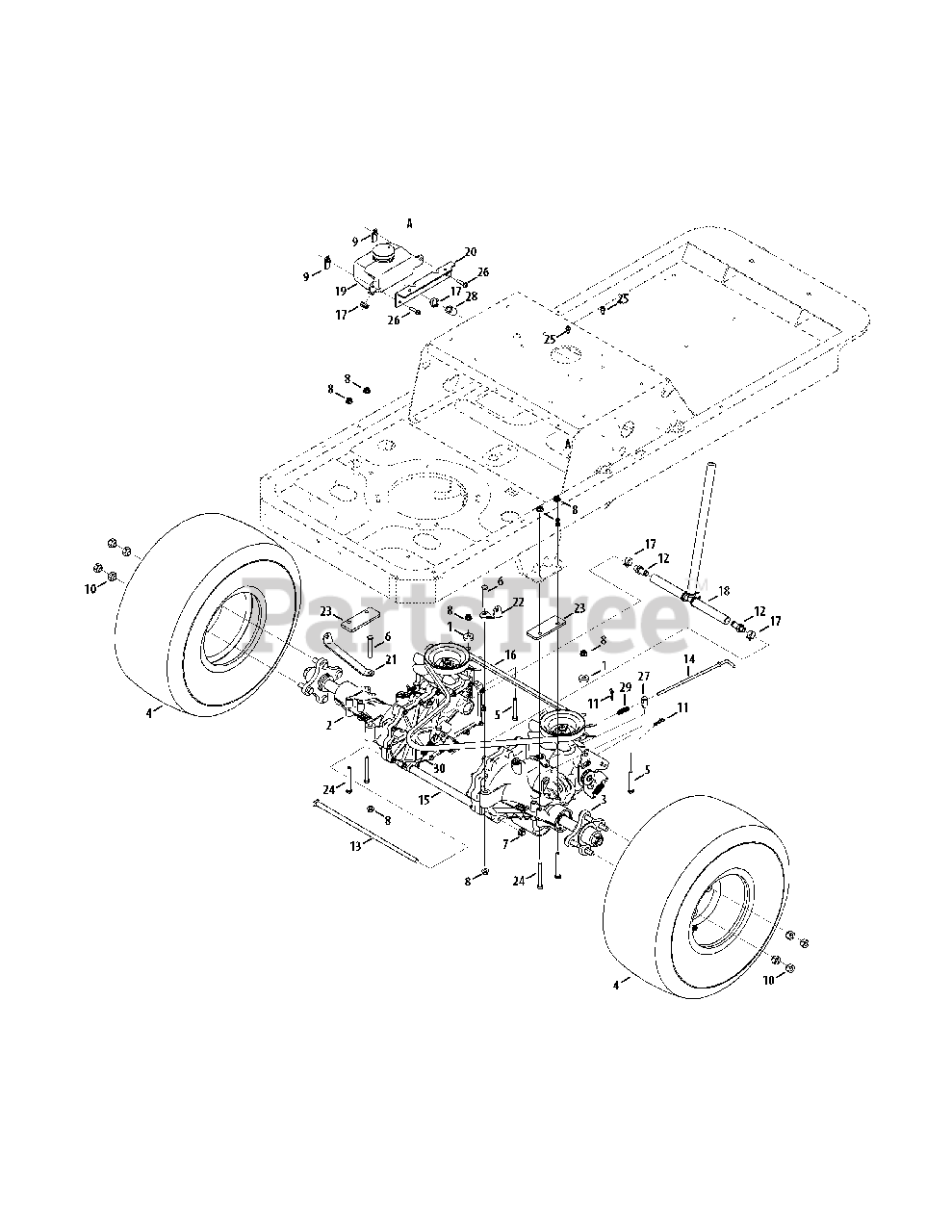

Rear Drive & Wheels 54-Inch Parts Diagram

  • Title

1

Cub Cadet 736-04267

Flat Washer, .35ID x 1.0 OD x .25

$5.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04465

Transmission Assembly, LH
(Superseded to 918-04465A)

$1952.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04464

Transmission Assembly, RH
(Superseded to 918-04464A)

$1689.99

$

Usually ships in 3-6 days

0

4

Cub Cadet N/A

Wheel Assembly, 20 x 10 x 8

$

$

Currently unavailable

4

Cub Cadet 934-0246A-0499

Rim

$134.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 934-0255

Valve

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 734-1873-0901

Tire

$106.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04063

Hex Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04092

Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 1 left!

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 751-10511

Steering Fitting

$21.99

$

In Stock, only 1 left!

0

13

Cub Cadet 738-04251

Rod, .377 Dia. x 14.75 Lg.
(Superseded to 738-04251A)

$14.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 747-04636

Bypass Rod

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 750-04759A

Tube, 7/16 x 3/4 x 11.3

$41.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 954-04043A

V-Belt
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

17

Cub Cadet 02001111

Hose Clamp

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 618-04466

Breather Assembly

$30.99

$

In Stock, only 1 left!

0

19

Cub Cadet 931-04223

Expansion Tank Assembly

$41.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 703-05938A-0637

Expansion Tank Bracket Mount

$

$

Not available

21

Cub Cadet 703-05940-0637

Transmission Brace - LH

$

$

Not available

22

Cub Cadet 703-05941-0637

Transmission Brace - RH

$

$

Not available

23

Cub Cadet 703-05989-0637

Transmission Spacer

$

$

Not available

24

Cub Cadet 710-0189

Screw, 5/16-18 x 3.00

$6.49

$

In Stock, Qty 5

0

25

Cub Cadet 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0788

TT Screw, 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

27

Cub Cadet 711-1530

Ferrule, .325ID x .312OD

$

$

Not available

28

Cub Cadet 731-05785

Cap

$

$

Not available

29

Cub Cadet 732-0335

Compression Spring, .405 x 1.17

$

$

Not available

30

Cub Cadet 732-04434

Extension Spring, .545OD x 4.55 Lg.

$

$

Not available
