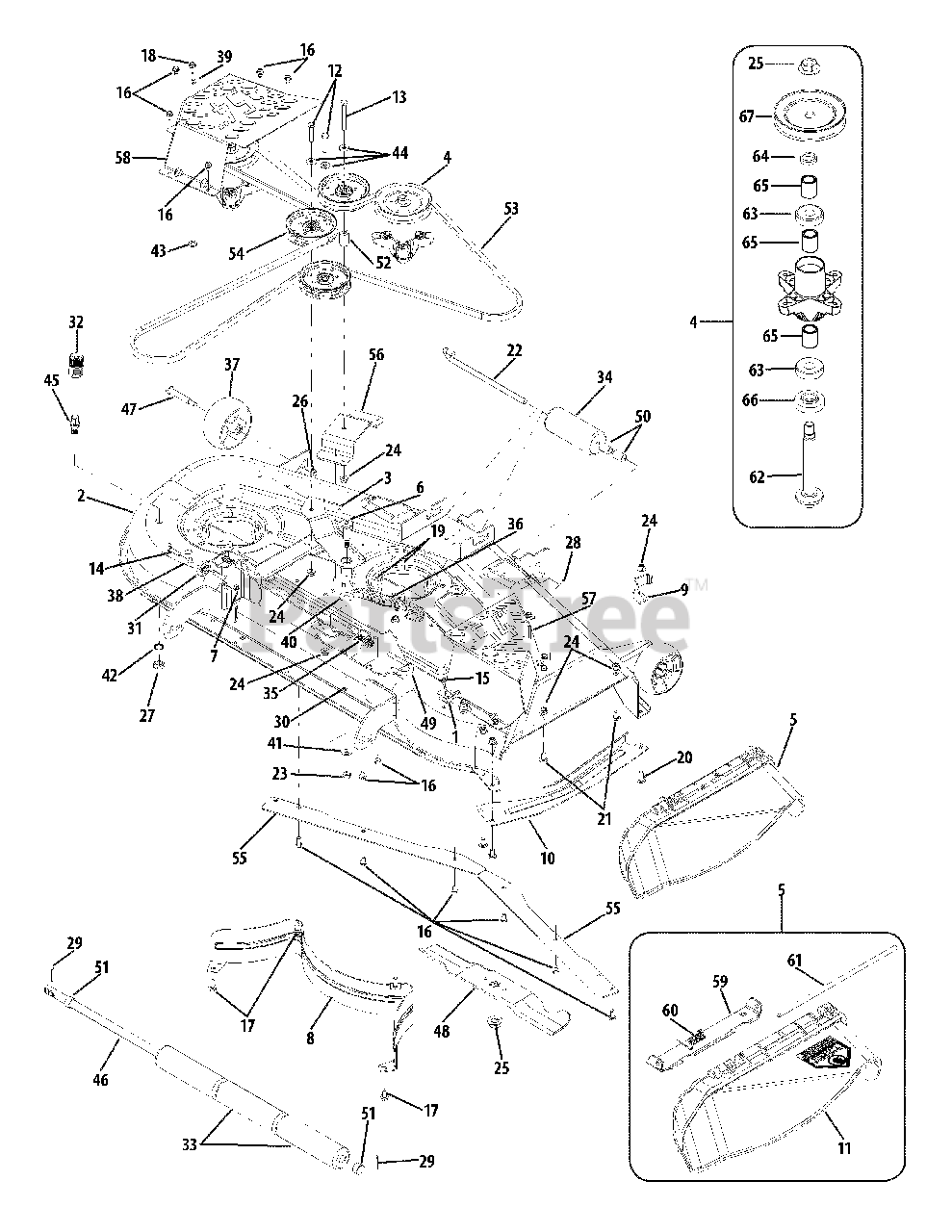

Mower Deck 2008 Parts Diagram

  • Title

1

Cub Cadet 16606

Retainer Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 603-04367A

Deck Housing
(Superseded to 903-04603A)

Variations

Cub Cadet 603-04367A-4021

USE 903-04603A-4021 SHELL-54" - CUB YELLOW 2 (4021)

$884.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04367A-0716

USE 903-04603A-0716 SHELL-54" - CUB YELLOW-99 (0716)

$884.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04367A-0650

USE 903-04603A-0650 SHELL-54" - RED METALLIC (0650)

$

$

Not available

$884.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-04386A

Idler Assembly
(Superseded to 603-04386A-0637)

Variations

Cub Cadet 603-04386A-4021

Idler Assembly-Deck 54" - CUB YELLOW 2 (4021)

$95.99

$

In Stock, Qty 5

0

Cub Cadet 603-04386A-0606

IDLER ASM-DECK 54" - MAJESTIC ORANGE (0606)

$95.99

$

In Stock, Qty 5

0

Cub Cadet 603-04386A-0637

IDLER ASSY-DECK 54" - POWDER BLACK (0637)

$95.99

$

In Stock, Qty 5

0

Cub Cadet 603-04386A-0650

IDLER ASSY-DECK 54" - RED METALLIC (0650)

$95.99

$

In Stock, Qty 5

0

Cub Cadet 603-04386A-0691

IDLER ASM-DECK 54" - BLACK JACK (0691)

$95.99

$

In Stock, Qty 5

0

Cub Cadet 603-04386A-4044

IDLER ASM-DECK 54" - CRAFTSMAN RED (4044)

$95.99

$

In Stock, Qty 5

0

$95.99

$

In Stock, Qty 5

0

4

Cub Cadet 618-04608

Spindle Assembly
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

5

Cub Cadet 631-04070A

Discharge Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

6

Cub Cadet 638-04012A

Shoulder Bolt Assembly

$21.99

$

In Stock, Qty 5

0

7

Cub Cadet 683-0254B

Deck Hanger Bracket

Variations

Cub Cadet 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2093

Rear Inner Baffle
(Superseded to 703-2093C)

Variations

Cub Cadet 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2093-0716

Inner Rear Baffle, Black - CUB YELLOW-99 (0716)

$96.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3279

Stop Bracket

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-3511

Finger Guard
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 703-3511-0637

Finger Guard, Black - POWDER BLACK (0637)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

11

Cub Cadet N/A

Chute Deflector

Note: (Order Ref No. 5)

$

$

Currently unavailable

12

Cub Cadet 710-0347

Hex Cap Screw, 3/8 -16 x 1.75

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0521

Hex Cap Screw, 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

14

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Hex Washer Head Screw, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

17

Cub Cadet 710-0623

Hex Washer Head Screw, 3/8 -16 x .75

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 710-0650

Hex Washer Head Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1260A

Hex Washer Head Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3168

Carriage Screw, 3/8 -16 x 1.0

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3178

Carriage Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 711-1737

Roller Pin, .5 x 10.06

$25.99

$

In Stock, Qty 6

0

23

Cub Cadet 712-0290

Hex Lock Nut,7/16-14

$4.99

$

In Stock, Qty 11

0

24

Cub Cadet 712-04065

Hex Insert Flange Lock Nut,3/8 -16

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0417A

Hex Flange Nut,5/8 -18

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0641

Hex Nut, M16-1.5

$6.49

$

In Stock, Qty 7

0

28

Cub Cadet 714-0111

Cotter Pin, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

29

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 717-1553B

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

32

Cub Cadet 721-04041

Water Nozzle Adapter
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-05825

Deck Roller, 7.895

$36.99

$

In Stock, Qty 5

0

34

Cub Cadet 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

35

Cub Cadet 732-0306A

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

36

Cub Cadet 732-0850

Extension Spring, 1.0 x 6.140
(Superseded to 932-0850)

$24.99

$

In Stock, Qty 5

0

37

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0406

Flat Washer, .442 x 1.39 x .06
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

41

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

42

Cub Cadet 736-0760

Lock Washer

$4.49

$

In Stock, Qty 7

0

43

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

44

Cub Cadet 736-3072

Flat Washer, .38 x .93 x .110

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 737-04003C

Deck Wash Nozzle
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

46

Cub Cadet 738-04260

Shaft, .75 x 26.893

$86.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 738-3056

Shoulder Screw, .5 x 2.5 x 3/8 -16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

48

Cub Cadet 742-0677B

Blade, 18.5
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

49

Cub Cadet 747-1116

Deck Hanger Rod

$12.99

$

In Stock, Qty 6

0

50

Cub Cadet 750-0151

Spacer, .55 x .75 x 1.125
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

51

Cub Cadet 750-0212

Spacer, .82 x 1.0 x.53

$10.99

$

In Stock, Qty 18

0

52

Cub Cadet 750-04597

Spacer, .38 x .9 x 1.313

$

$

Not available

53

Cub Cadet 754-04138A

V-Belt Type B Sec x 143
(Superseded to 954-04138A)

$87.99

$

In Stock, Qty 6

0

54

Cub Cadet 756-04129

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

55

Cub Cadet 783-04690B

Deck Skirt

Variations

Cub Cadet 783-04690B-0637

Deck Skirt, 54" Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 3 left!

0

$36.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 783-04726

Stationary Idler Bracket

Variations

Cub Cadet 783-04726-0637

Idler Pulley Bracket - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04726-4008

Idler Pulley Bracket - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 783-1470A

Belt Cover, RH

Variations

Cub Cadet 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$107.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$86.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 783-1471

Belt Cover, LH
(Superseded to 783-1471A)

Variations

Cub Cadet 783-1471-0606

USE 783-1471A-0606 COVER-SPIN - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0650

USE 783-1471A-0650 COVER-SPIN - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0716

Spindle Cover, LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0665

USE 783-1471A-0665 COVER-SPIN - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0691

USE 783-1471A-0691 COVER-SPIN - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-4008

USE 783-1471A-4008 COVER-SPIN - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-4028

COVER-SPINDLE LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 783-05030

Chute Mounting Bracket

$29.99

$

In Stock, Qty 5

0

60

Cub Cadet 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 9

0

61

Cub Cadet 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

62

Cub Cadet 738-1197

Spindle Shaft, 6.95

$41.99

$

In Stock, Qty 15

0

63

Cub Cadet 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

64

Cub Cadet 748-0160A

Spacer, .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

65

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.32

$4.49

$

In Stock, Qty 7

0

66

Cub Cadet 750-1349A

Spacer, .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

67

Cub Cadet 756-04216

V-Type Pulley, 5.39

$33.99

$

In Stock, only 1 left!

0
