RZT-54 (17AI2ACK256) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2009) Frame & Drive Idler Assembly Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

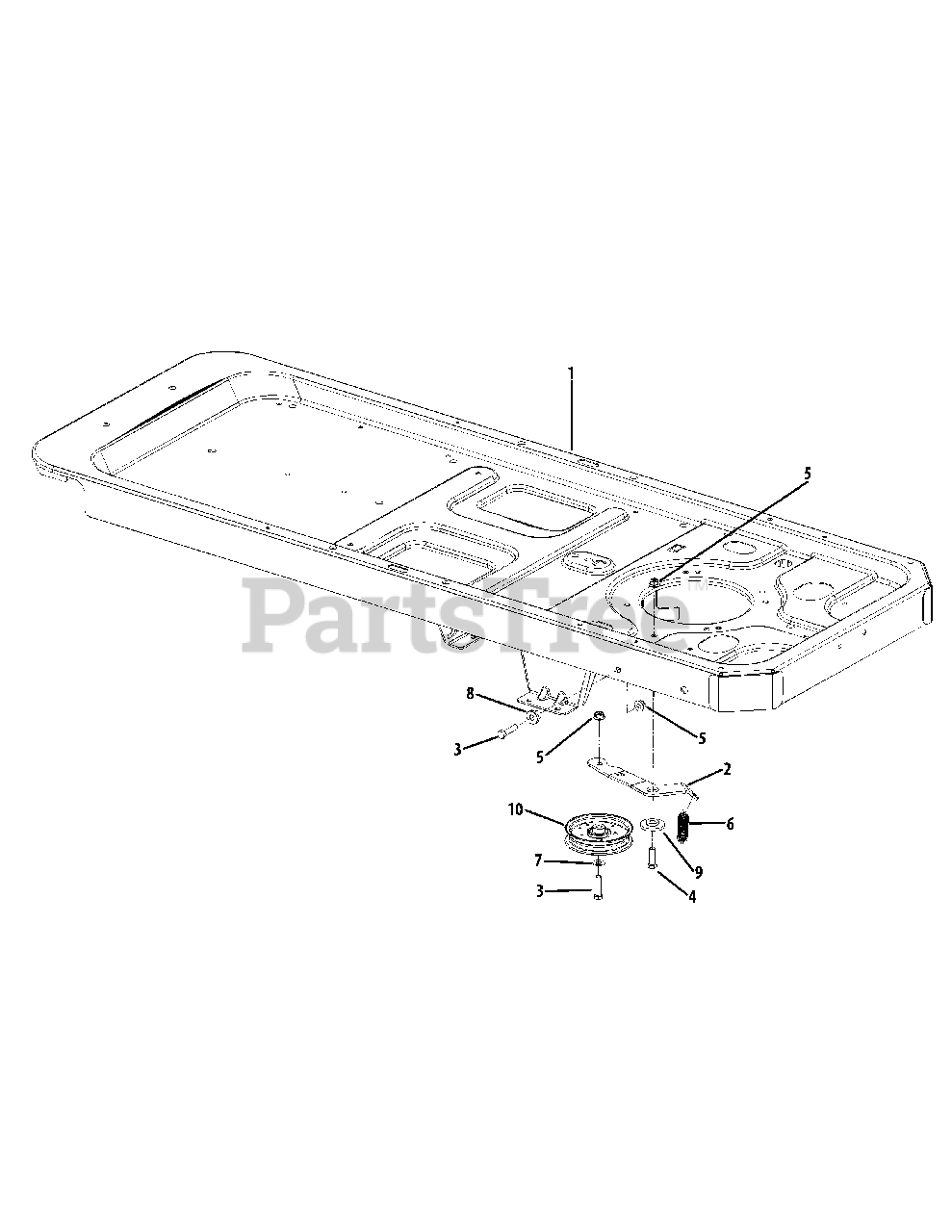

Frame & Drive Idler Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04691-4021

Frame Assembly
(Superseded to 603-04680A-4021)

Note:

$

$

Not available

2

Cub Cadet 703-05829-0637

Drive Idler Arm
(Superseded to 703-05829)

Note:

$42.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.5

Note:

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

Note:

$3.99

$

In Stock, Qty 11

0

5

Cub Cadet 712-04065

Flange Nut, 3/8-16

Note:

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-0626

Extension Spring, .75 x 5.06

Note:

$12.99

$

In Stock, only 1 left!

0

7

Cub Cadet 936-0300

Flat Washer, .408 x .875 x .059
(Superseded to 736-0300)

Note:

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 738-04058

Shoulder Spacer, .39 x 1.0 x .7

Note:

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

Note:

$13.99

$

In Stock, Qty 20+

0

10

Cub Cadet 756-04129

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

Note:

$35.99

$

In Stock, Qty 20+

0

Cub Cadet 603-04290B-0637

PTO Clutch Torque Bracket, Bolt-on

Note: (Not shown)(Use engine mounting hardware)(Replaces welded-on frame PTO bracket)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05845-0637

Anti-rotation Bracket

Note: (Not shown)(Use with Ogura PTO clutch & 603-04290B-0637 PTO bracket)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0
