RZT-54 (17AI2ACK010) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Engine Control Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

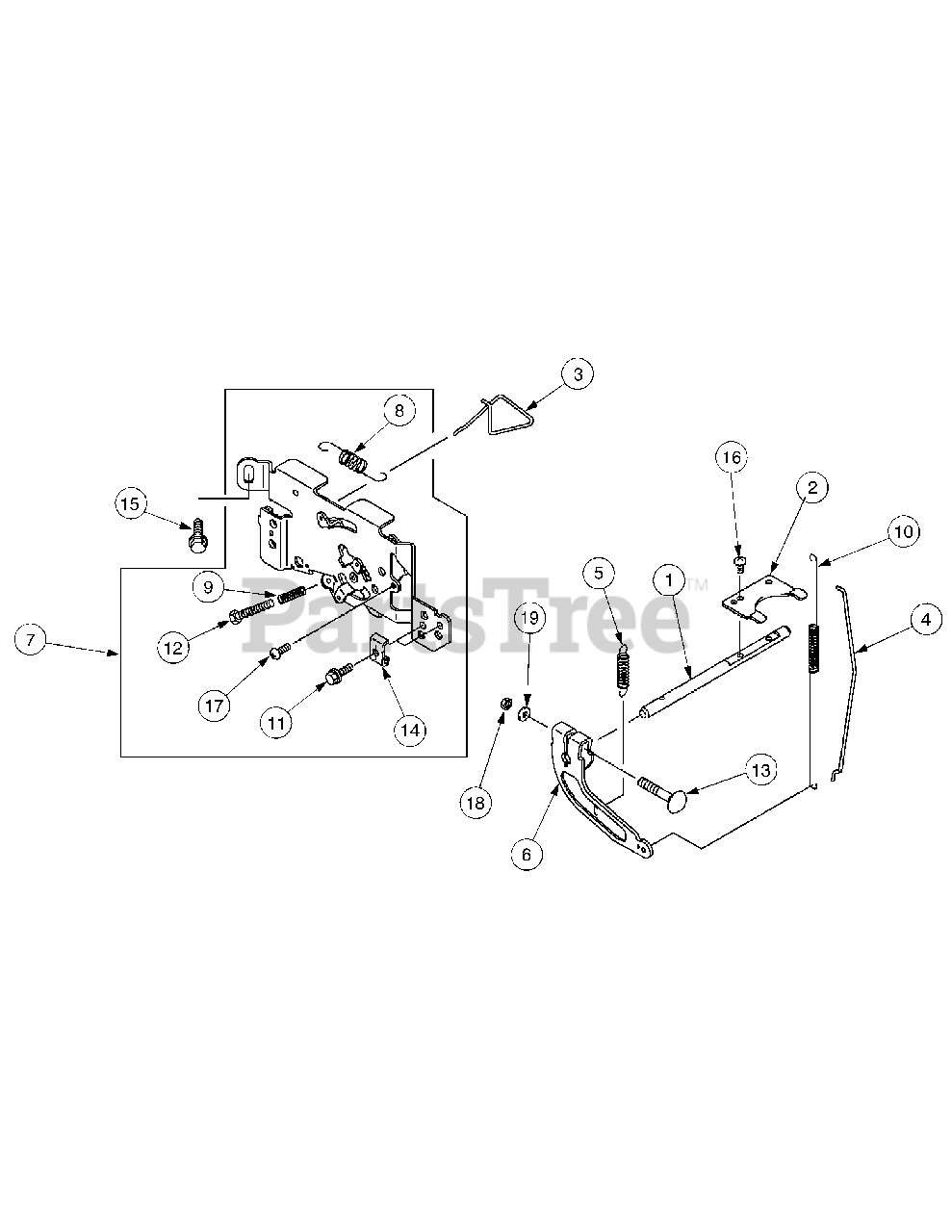

Engine Control Parts Diagram

  • Title

1

Cub Cadet KM-13107-7013

Shaft
(Superseded to KM-13107-0751)

$12.99

$

In Stock, Qty 6

0

2

Cub Cadet KM-13271-7018

Plate
(Superseded to KM-13271-7032)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-16169-7006

Link, Choke
(Superseded to KM-16169-0009)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-16171-7004

Link
(Superseded to KM-16171-0040)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KM-39129-7004

Spring, Governor

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-49103-7004

Arm, Governor

$7.99

$

In Stock, Qty 12

0

7

Cub Cadet KM-49113-7017

Panel, Control

$27.99

$

In Stock, Qty 10

0

8

Cub Cadet KM-92145-7004

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, Qty 12

0

10

Cub Cadet KM-92145-7034

Spring

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92150-2182

Bolt, 5 x 18

$0.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92151-7014

Bolt, 5 x 30

$1.49

$

In Stock, Qty 5

0

13

Cub Cadet KM-92153-7005

Bolt, 6 x 35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

14

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130G0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214B0408

Screw, Pan Hd.
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 15

0

17

Cub Cadet KM-214B0412

Screw, Pan Hd.
(Superseded to KM-220B0412)

$

$

Not available

18

Cub Cadet KM-311B0600

Nut, Hex
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-411B0600

Washer, Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 12

0
