RZT-54 (17AI2ACK010) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Engine Accessories 2008 Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

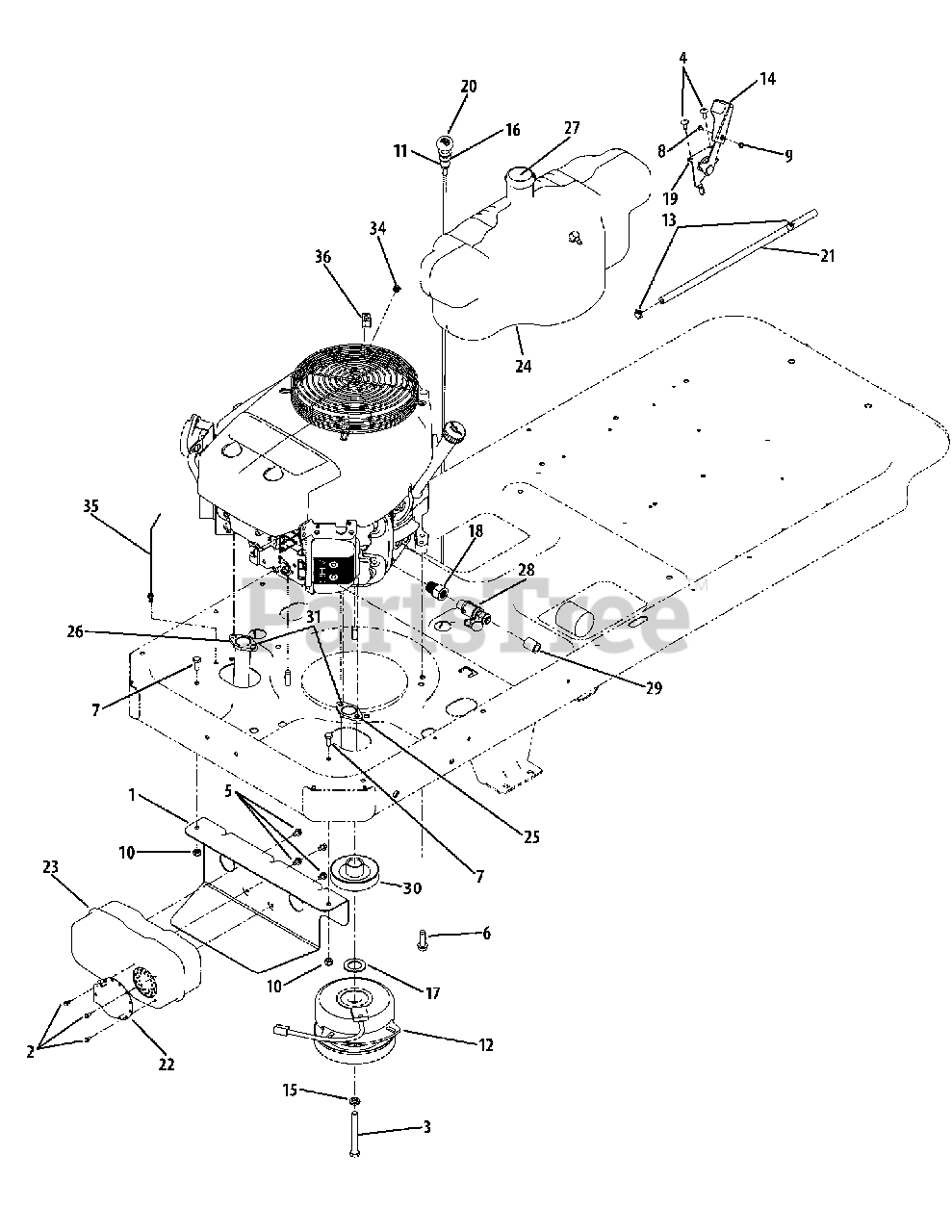

Engine Accessories 2008 Parts Diagram

  • Title

1

Cub Cadet 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet 710-0227

Hex Washer Head Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04379A

Hex Cap Lock Screw, 7/16-20 x 3.5

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04261

Hex Washer Hd. Screw, 1/4-14 x .625

$6.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

Hex Washer Hd. Screw, 3/8 -16 x 1.25

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3217

Truss Hd. Mach. Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

9

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 712-0429

Hex Insert Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3005

Hex Jam Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 717-1774C

Electric PTO Clutch Assembly
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

13

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

14

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0171

Lock Washer,7/16

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0277

Flat Washer, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 737-04138

Hex Fitting

$25.99

$

In Stock, only 3 left!

0

19

Cub Cadet 746-04066

Throttle Cable, 34.25 LG
(Superseded to 946-04066)

$34.99

$

In Stock, only 2 left!

0

20

Cub Cadet 746-04214

Choke Cable, 61 LG
(Superseded to 946-04214)

$47.99

$

In Stock, only 1 left!

0

21

Cub Cadet 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

23

Cub Cadet 751-0616A

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

24

Cub Cadet 751-10692

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

24

Cub Cadet 751-10442

Fuel Pickup Line

Note: (Not Shown)

$32.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 735-0149

Fuel Tank Bushing
(Superseded to 935-0149)

Note: (Not Shown)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet 751-10355

Exhaust Pipe, RH

$

$

Not available

26

Cub Cadet 751-10356

Exhaust Pipe, LH

$72.99

$

In Stock, Qty 7

0

27

Cub Cadet 753-05969

Fuel Cap
(Superseded to 951-12428)

Note: Replaces 751-10703, in this application only

$43.99

$

In Stock, Qty 15

0

28

Cub Cadet 751-10517

Oil Drain
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

30

Cub Cadet 756-04376

Drive Pulley

Note: Replaces 756-0978B, in this application only

$44.99

$

In Stock, only 1 left!

0

31

Cub Cadet KM-11060-7016

Muffler Gasket

$2.49

$

In Stock, Qty 20+

0

34

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

35

Cub Cadet 726-0154

Push Mount Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 726-0197

Clutch Cable Tie

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KM-317R0800

Hex Nut

Note: (Not Shown, used for 25 & 26)

$2.99

$

In Stock, Qty 16

0

Cub Cadet KM-461F0800

Lock Washer
(Superseded to KM-461DA0800)

Note: (Not Shown, used for 25 & 26)

$0.99

$

In Stock, Qty 20+

0

Cub Cadet 603-04290B-0637

PTO Clutch Torque Bracket, Bolt-on

Note: (Not shown)(Use engine mounting hardware)(Replaces welded-on frame PTO bracket)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05845-0637

Anti-rotation Bracket

Note: (Not shown)(Use with Ogura PTO clutch & 603-04290B-0637 PTO bracket)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0
