RZT-50 VT (17VK2ACP009) - Cub Cadet 50" RZT Zero-Turn Mower, Briggs & Stratton (2009) Operator's Platform Parts Diagram

50" RZT Zero-Turn Mower, Briggs & Stratton

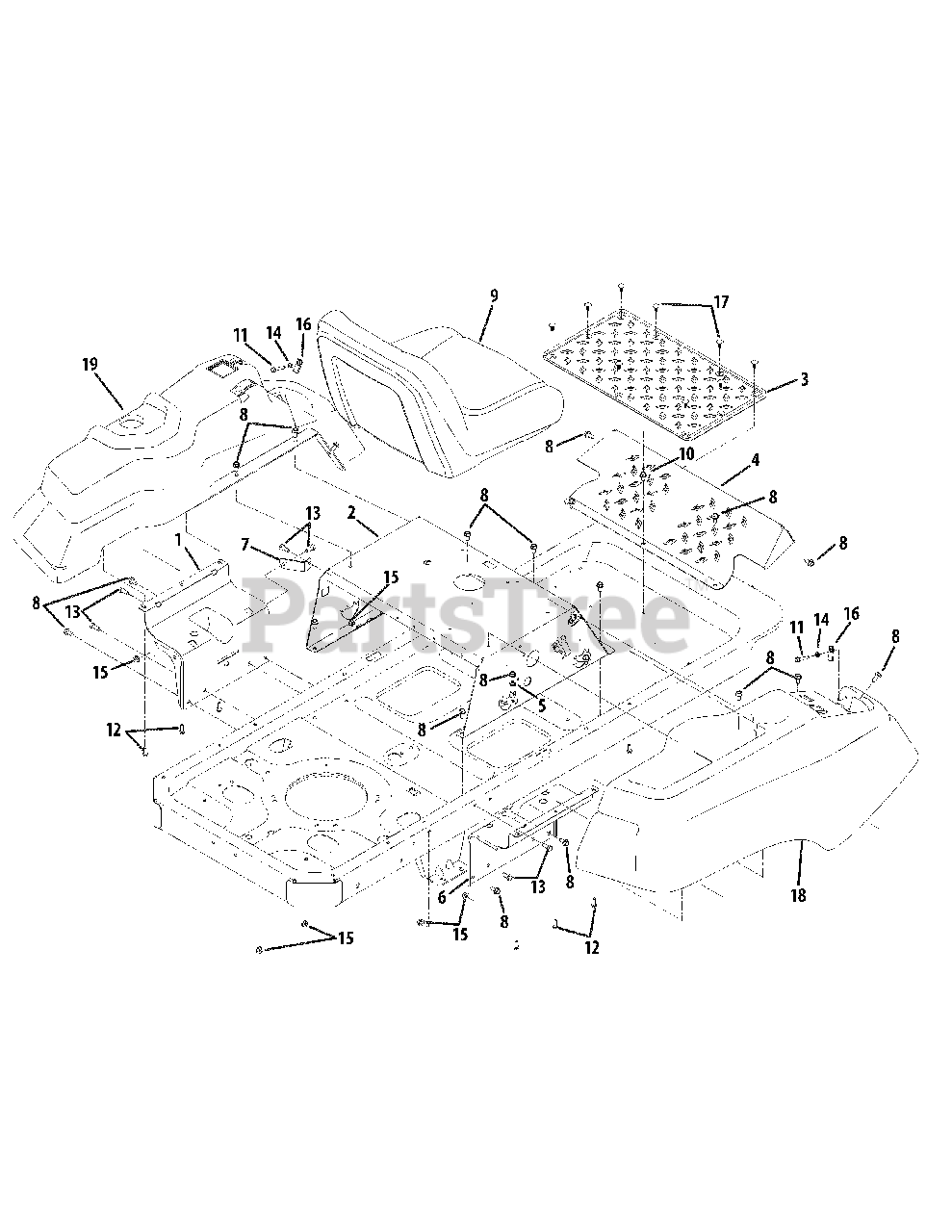

Operator's Platform Parts Diagram

  • Title

1

Cub Cadet 603-04564-4021

Console Mount Bracket

$

$

Not available

2

Cub Cadet 603-04663-4021

Seat Frame

$

$

Not available

3

Cub Cadet 735-04082B

Foot Pad
(Superseded to 735-04082C)

$50.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-05373B-4021

Foot Rest

$

$

Not available

5

Cub Cadet 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

6

Cub Cadet 703-06451-4021

Console Mount Bracket

$

$

Not available

7

Cub Cadet 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 757-04098

High-Back Seat
(Superseded to 757-05231)

$285.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .825

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

13

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04092

U-Type Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 731-06233

RH Console

$

$

Not available

19

Cub Cadet 731-06263

LH Console
(Superseded to 731-06263B)

$117.99

$

Usually ships in 3-6 days

0
