RZT-50 VT (17VK2ACP009) - Cub Cadet 50" RZT Zero-Turn Mower, Briggs & Stratton (2009) Engine Connection Parts Diagram

50" RZT Zero-Turn Mower, Briggs & Stratton

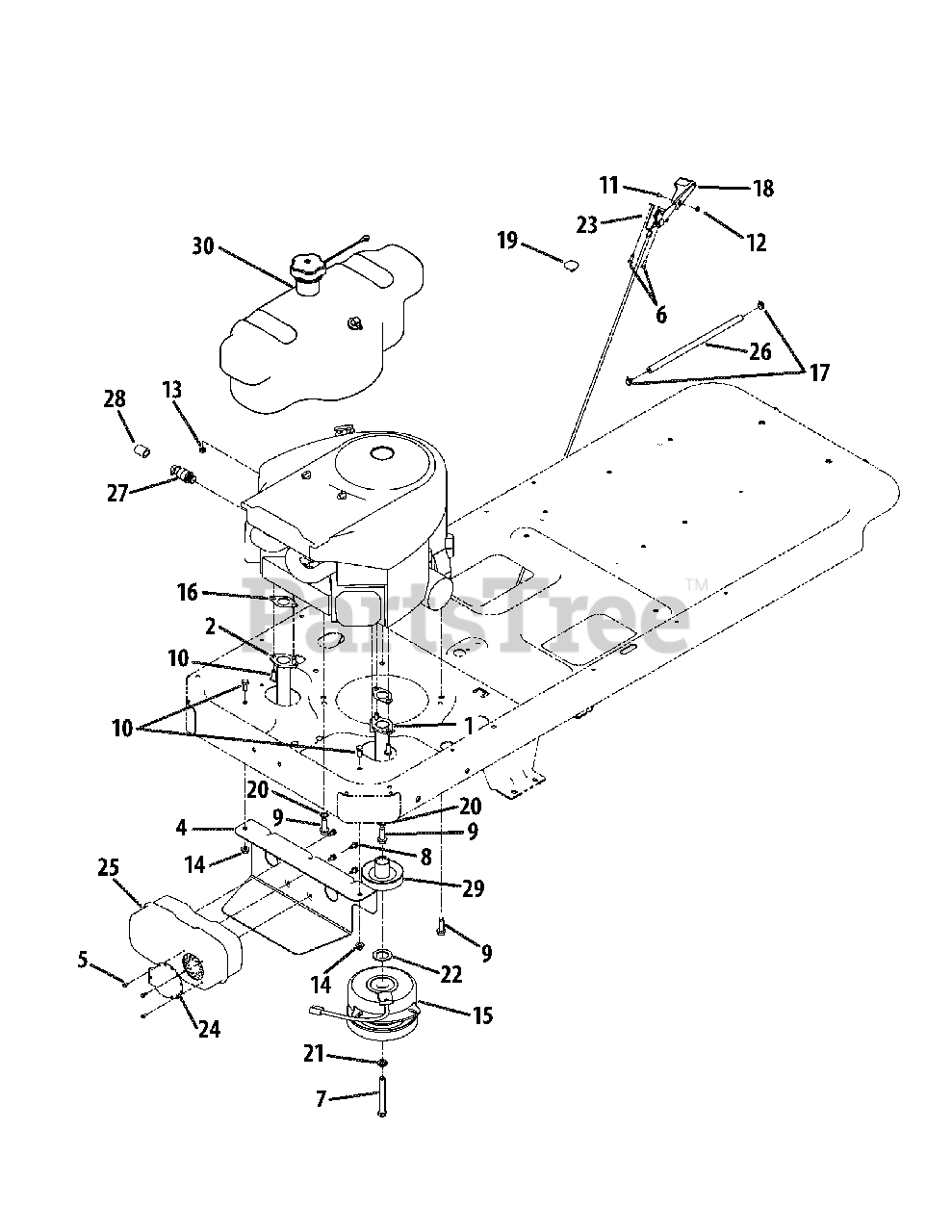

Engine Connection Parts Diagram

  • Title

1

Cub Cadet 603-04162

Muffler Exhaust Tube, RH

$89.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04163

Muffler Exhaust Tube, LH

$80.99

$

In Stock, only 1 left!

0

3

Cub Cadet 603-04303C-4021

Frame Assembly
(Superseded to 603-04680A-4021)

$

$

Not available

4

Cub Cadet 703-05441A

Muffler Mount Bracket

$52.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04261

Hex Washer Screw, #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-04379A

Hex Lock Screw, 7/16-20 x 3.50

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1315

Hex Washer Screw, 3/8-16 x 1.250

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3217

Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

12

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

13

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 917-04552

Electric PTO Clutch

$531.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

17

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 746-04539

Throttle/Choke Control Cable
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

24

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 4 left!

0

25

Cub Cadet 751-0616B

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

26

Cub Cadet 751-10349

Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-10517A

Oil Drain

$24.99

$

In Stock, only 2 left!

0

28

Cub Cadet 751-3141-14

Oil Drain Extension Hose

$11.99

$

In Stock, Qty 8

0

29

Cub Cadet 756-04376

PTO Pulley

$44.99

$

In Stock, only 1 left!

0

30

Cub Cadet 751-10692

Fuel Tank Assembly
(Superseded to 951-05137A)

$

$

Not available

30

Cub Cadet 935-0149

Fuel Tank Bushing

Note: Not Shown

$2.99

$

In Stock, Qty 20+

0

30

Cub Cadet 751-10442

Fuel Pick-Up Fitting

Note: Not Shown

$32.99

$

In Stock, Qty 20+

0

30

Cub Cadet 751-10692

Fuel Tank
(Superseded to 951-05137A)

Note: Not Shown

$

$

Not available

30

Cub Cadet 751-10703

Fuel Cap
(Superseded to 951-12428)

Note: Not Shown

$43.99

$

In Stock, Qty 15

0

Cub Cadet 726-0197

Cable Tie

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0
