RZT-50 VT (17BK2ACP009) - Cub Cadet 50" RZT Zero-Turn Mower, Briggs & Stratton (2010 & After) Rear Drive & Wheels Parts Diagram

50" RZT Zero-Turn Mower, Briggs & Stratton

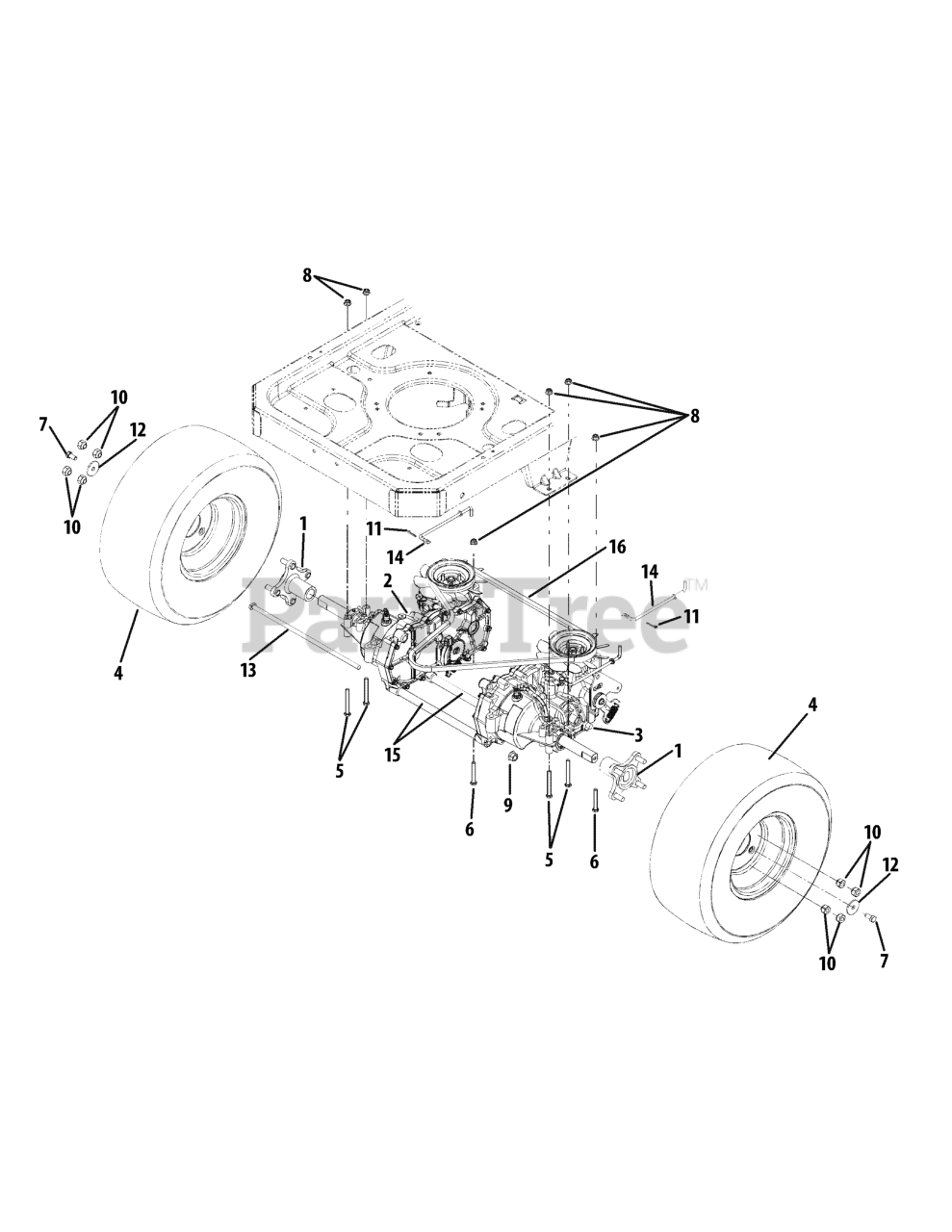

Rear Drive & Wheels Parts Diagram

  • Title

1

Cub Cadet 918-04317

Wheel Hub, 7/16-14 x 1.6

$116.99

$

In Stock, only 1 left!

0

2

Cub Cadet 918-04431A

Transmission Assembly, LH
(Superseded to 918-04431B)

$1719.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04432A

Transmission Assembly, RH
(Superseded to 918-04432B)

$1805.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-04128

Wheel Assembly, 18 x 9.5 x 8

Variations

Cub Cadet 634-04128-0961

WHEEL ASM COMPLETE - Carlisle Gray (0961)

$266.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04128-0966

WHEEL ASM COMPLETE - Kenda Gray (0966)

$266.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04128-0499

Wheel Assembly, Beige - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 634-04128-0931

Wheel Assembly, Beige - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 634-04128-0936

Wheel Assembly, Beige - Kenda Beige (0936)

$

$

Not available

Cub Cadet 634-04128-0662

Wheel Assembly, Gray - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 634-04128-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-04128-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$

$

Not available

$286.99

$

In Stock, only 2 left!

0

4

Cub Cadet 734-1729

Tire, 18 x 9.5 x 8

Variations

Cub Cadet 734-1729-0901

Turf Saver Tire, 18 X 9.5 X 8 - Carlisle (0901)

$

$

Not available

Cub Cadet 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04175-0499

Rim Assembly

$88.99

$

In Stock, only 2 left!

0

4

Cub Cadet 934-0255

Valve Assembly

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-04063

Hex Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0459

Hex Flange Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0227

Flat Washer, .39 x 1.5 .134
(Superseded to 736-0227)

$

$

Not available

13

Cub Cadet 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 747-04217C-0637

Bypass Rod

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

Cub Cadet 954-04043A

Type A Sec V-Belt, 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0
