RZT-50 KH (17YF2ACP009) - Cub Cadet 50" RZT Zero-Turn Mower, Kohler (2012) Operator's Platform Parts Diagram

50" RZT Zero-Turn Mower, Kohler

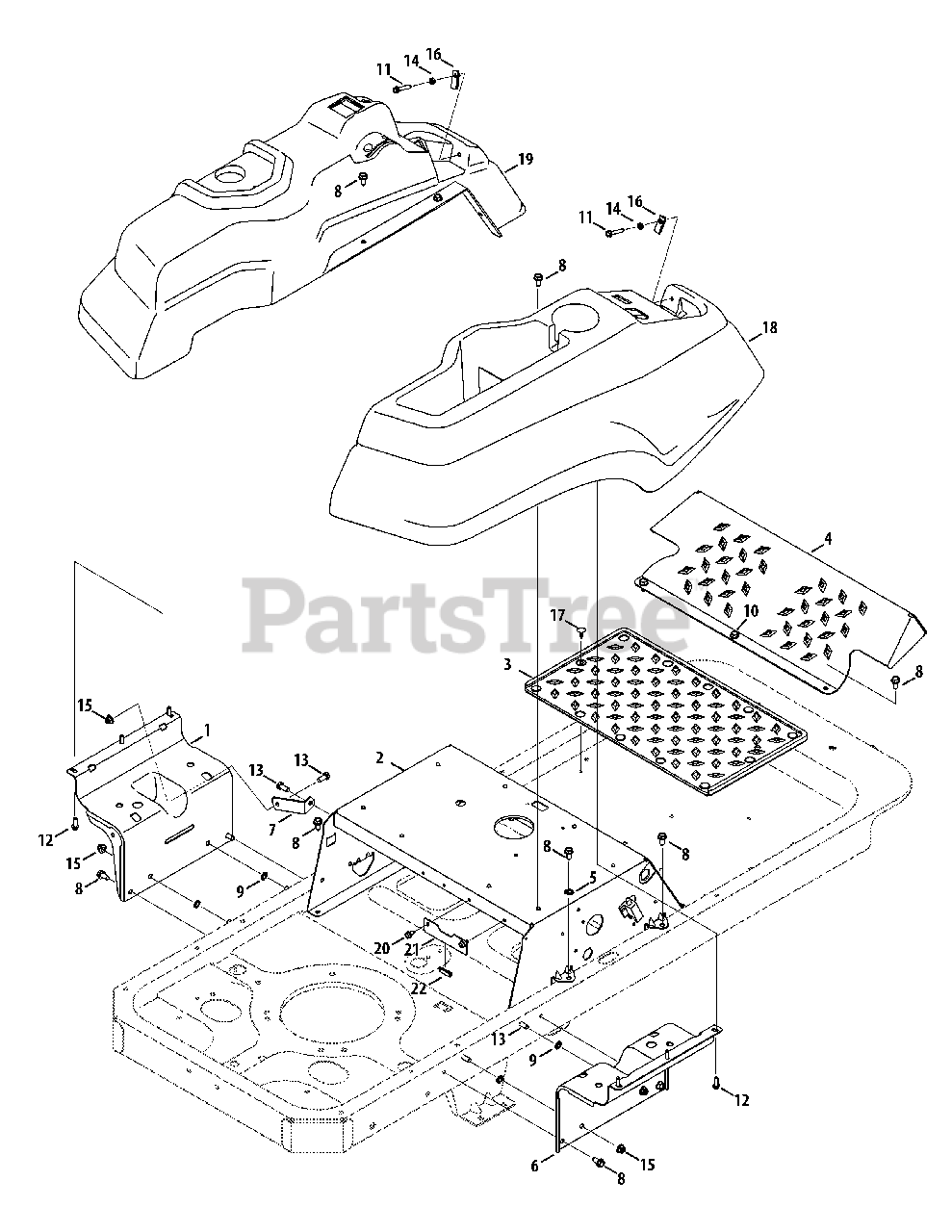

Operator's Platform Parts Diagram

  • Title

1

Cub Cadet 603-04564-4021

Console Mount Bracket

$

$

Not available

2

Cub Cadet 603-04663-4021

Seat Frame

Note: December 2011 & before

$

$

Not available

2

Cub Cadet 603-04946-4021

Seat Frame

Note: January 2012 & after

$

$

Not available

3

Cub Cadet 735-04082C

Foot Pad

$50.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-05373B

Foot Rest

Variations

Cub Cadet 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

Cub Cadet 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

5

Cub Cadet 736-0148

Lock Washer, 3/8"

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-06451-4021

Console Mount Bracket

$

$

Not available

7

Cub Cadet 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750"

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0201

Speed Nut, .3125"

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-0604A

Hex Washer Screw, 5/16-18 x .825"

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0778

Hex Washer Screw, 1/4-20 x 1.500"

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0895

Hex Washer Screw, 1/4-15 x .750"

$6.49

$

In Stock, only 4 left!

0

13

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 912-0298

Jam Nut, 1/4-20"

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18"

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04092

U-Type Nut, 1/4-20"

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet 726-3046

Ratchet Clip, .250"

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 731-06233

RH Console

$

$

Not available

19

Cub Cadet 731-06263B

LH Console

$117.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0599

Hex Screw, 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 703-05894-0637

Battery Hold-Down

$29.99

$

In Stock, only 2 left!

0

22

Cub Cadet 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0
