RZT-50 (17RI2ACP256) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Engine Accessories 2007 & Before Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

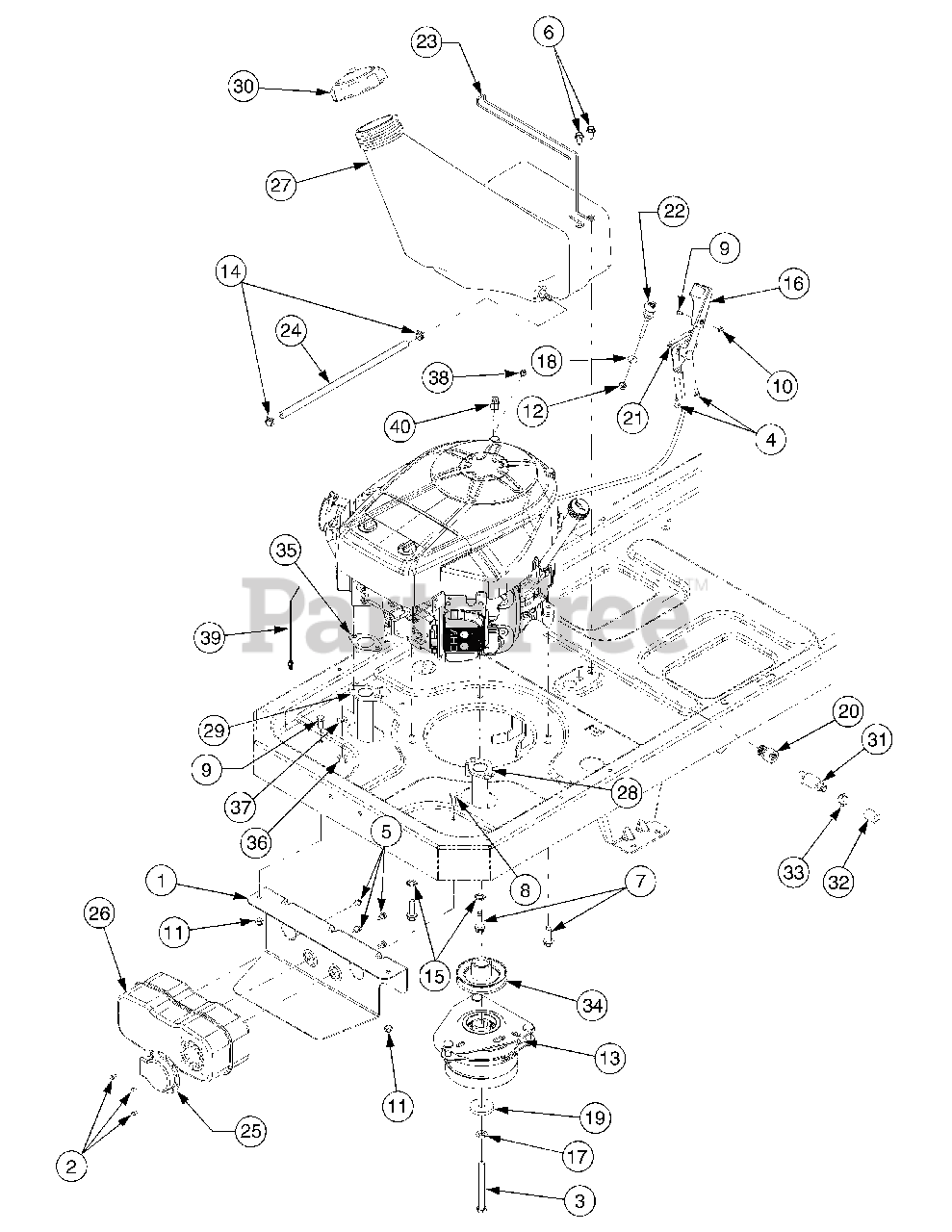

Engine Accessories 2007 & Before Parts Diagram

  • Title

1

Cub Cadet 703-05441A

Bracket, Muffler Mounting

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 15

0

3

Cub Cadet 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1315

Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 9

0

11

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3005

Nut, Hex Jam, 3/8-16 GR2

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 717-04183

Clutch Assembly, Electric PTO
(Superseded to 917-04622)

$600.99

$

In Stock, only 1 left!

0

13

Cub Cadet 726-0197

Tie, Clutch Cable

Note: (not shown)

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

15

Cub Cadet 736-0148

Washer, Ext. Tooth Lock, 3/8

$3.99

$

In Stock, only 3 left!

0

16

Cub Cadet 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

20

Cub Cadet 737-04138

Fitting, Hex

$25.99

$

In Stock, only 3 left!

0

21

Cub Cadet 746-04066

Cable, Throttle, 34.25 Lg
(Superseded to 946-04066)

$34.99

$

In Stock, only 2 left!

0

22

Cub Cadet 746-04214

Cable, Choke, 61Lg
(Superseded to 946-04214)

$47.99

$

In Stock, only 1 left!

0

23

Cub Cadet 747-04228A

Wire, Tank Mounting

$

$

Not available

24

Cub Cadet 751-10349-22

Hose, Fuel Line

Note: (22in)

$25.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

26

Cub Cadet 751-0616A

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

27

Cub Cadet 751-10057C

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 751-10355

Pipe, Exhaust RH

$

$

Not available

29

Cub Cadet 751-10356

Pipe, Exhaust LH

$72.99

$

In Stock, Qty 7

0

30

Cub Cadet 751-3124D

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 3 left!

0

31

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

33

Cub Cadet 751-3142

Cap,.Oil Drain

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 756-0978B

Pulley, Drive

$66.99

$

In Stock, Qty 14

0

35

Cub Cadet KM-11060-7016

Gasket, Muffler

$2.49

$

In Stock, Qty 20+

0

36

Cub Cadet KM-317R0800

Nut, Hex

$2.99

$

In Stock, Qty 18

0

37

Cub Cadet KM-461F0800

Washer, Lock
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

39

Cub Cadet 726-0154

Tie, Push Mount Cable
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet 603-04290B-0637

PTO Clutch Torque Bracket, Bolt-on

Note: (Not shown)(Use engine mounting hardware)(Replaces welded-on frame PTO bracket)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05845-0637

Anti-rotation Bracket

Note: (Not shown)(Use with Ogura PTO clutch & 603-04290B-0637 PTO bracket)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0
