RZT-50 (17BK2ACP597) - Columbia 50" Zero-Turn Mower (2008) Operators Platform Small Console Parts Diagram

50" Zero-Turn Mower

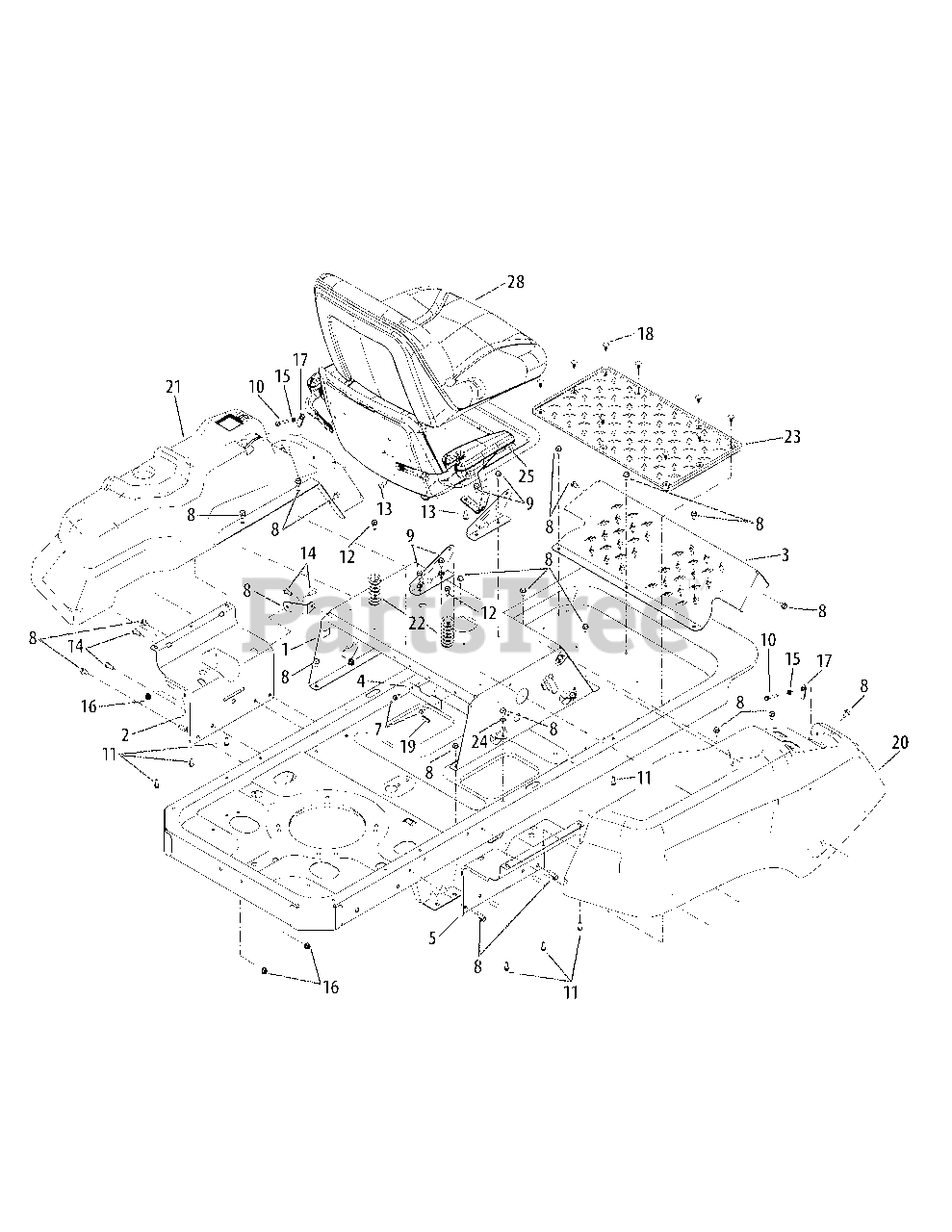

Operators Platform Small Console Parts Diagram

  • Title

1

MTD 603-04447A

Seat Frame

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04447A-0606

FRAME ASM-SEAT RZT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04447A-0638

FRAME ASM-SEAT RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04447A-0650

FRAME ASM-SEAT RZT - RED METALLIC (0650)

$

$

Not available

MTD 603-04447A-0691

FRAME ASM-SEAT RZT - BLACK JACK (0691)

$

$

Not available

MTD 603-04447A-4015

FRAME ASM-SEAT RZT - FIRE RED (4015)

$

$

Not available

MTD 603-04447A-4021

FRAME ASM-SEAT RZT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

2

MTD 603-04564

Console Bracket Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04564-0606

BRACKET-LH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04564-0637

BRACKET-LH CONSOLE - POWDER BLACK (0637)

$

$

Not available

MTD 603-04564-0638

BRACKET-LH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04564-0650

BRACKET-LH CONSOLE - RED METALLIC (0650)

$

$

Not available

MTD 603-04564-0691

BRACKET-LH CONSOLE - BLACK JACK (0691)

$

$

Not available

MTD 603-04564-4015

BRACKET-LH CONSOLE - FIRE RED (4015)

$

$

Not available

MTD 603-04564-4021

BRACKET-LH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04564-4033

BRACKET-LH CONSOLE - FLINT MICA (4033)

$

$

Not available

MTD 603-04564-4038

BRACKET-LH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

3

MTD 703-05373B

Foot Rest Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

MTD 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

MTD 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

MTD 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

MTD 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

MTD 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

MTD 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

MTD 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

4

MTD 703-05894-0637

Battery Hold Down Bracket

$29.99

$

In Stock, only 2 left!

0

5

MTD 703-06451

Console Mounting Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-06451-4021

BRACKET-RH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

MTD 703-06451-0606

BRACKET-RH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-06451-0637

BRACKET-RH CONSOLE - POWDER BLACK (0637)

$

$

Not available

MTD 703-06451-0638

BRACKET-RH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-06451-0650

BRACKET-RH CONSOLE - RED METALLIC (0650)

$

$

Not available

MTD 703-06451-0691

BRACKET-RH CONSOLE - BLACK JACK (0691)

$

$

Not available

MTD 703-06451-4015

BRACKET-RH CONSOLE - FIRE RED (4015)

$

$

Not available

MTD 703-06451-4033

BRACKET-RH CONSOLE - FLINT MICA (4033)

$

$

Not available

MTD 703-06451-4038

BRACKET-RH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

6

MTD 703-06623-0637

Fuel Tank Bracket Support

$

$

Not available

7

MTD 710-0599

Hex Washer Hd. Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0604A

Hex Washer Hd. Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0726

Hex Washer Hd. Screw, 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0778

Hex Wshr. Hd. Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 2 left!

0

11

MTD 710-0895

Hex Wshr. Hd. Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

12

MTD 710-1260A

Hex Washer Hd. Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

N/A

Screw, 5/16-18 x .750

$

$

Not available

14

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0298

Jam Nut, 1/4-20

$9.99

$

In Stock, only 2 left!

0

16

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04092

Speed Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

18

MTD 726-3046

Ratchet Clip, .250

$3.99

$

In Stock, Qty 16

0

19

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

20

MTD 731-06233

Console (RH)

$

$

Not available

21

MTD 731-06263B

Console (LH)

$117.99

$

Usually ships in 3-6 days

0

22

MTD 732-04035

Compression Spring, 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

23

MTD 735-04082

Foot Pad
(Superseded to 735-04082C)

$50.99

$

Usually ships in 3-6 days

0

24

MTD 736-0148

External Tooth Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

25

N/A

High Back Seat Arms

$

$

Not available

27

MTD 783-1489C

Seat Mounting Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

28

MTD 757-04041

Seat

$

$

Not available
