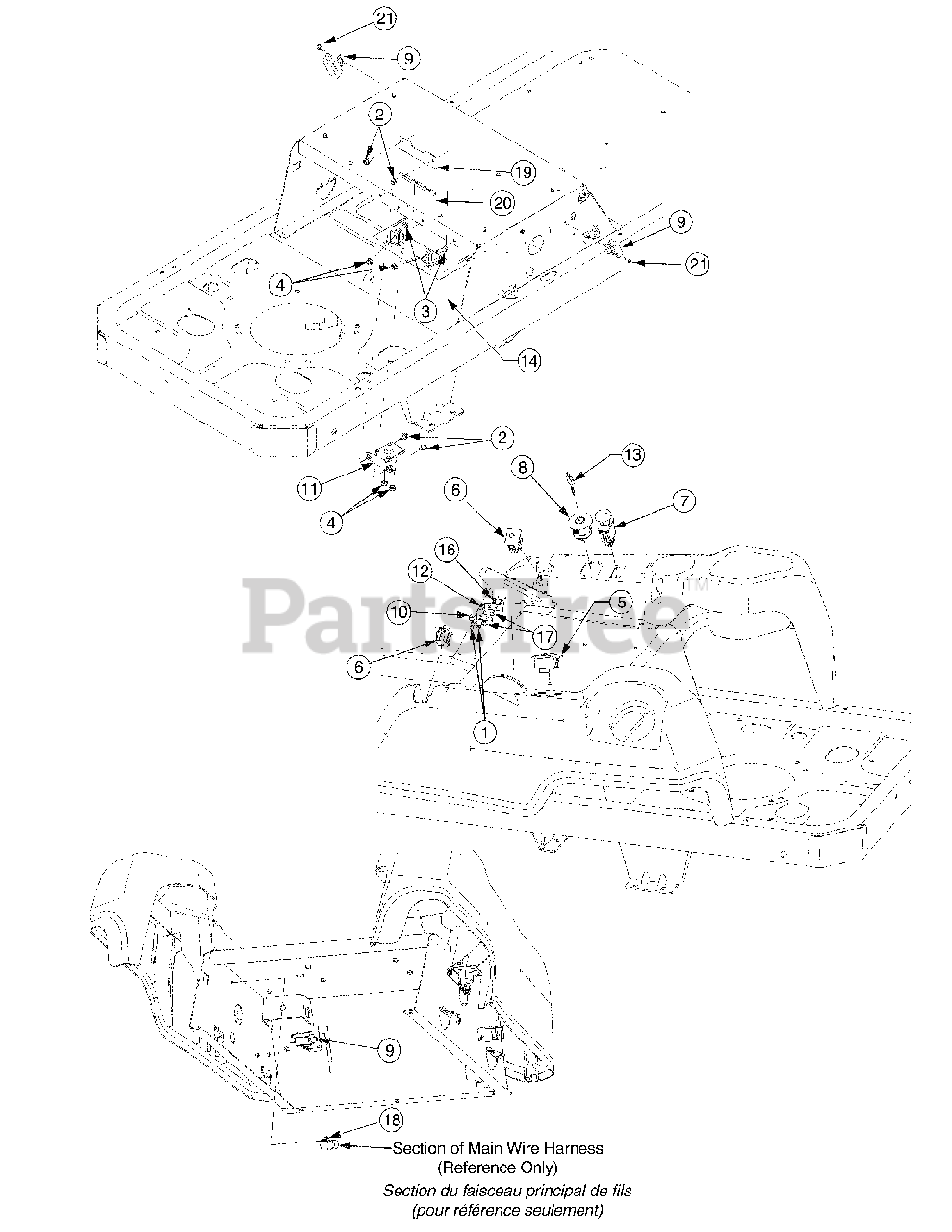

RZT-50 (17BK2ACP597) - Columbia 50" Zero-Turn Mower (2008) Electrical Parts Diagram

50" Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

3

MTD 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

MTD 925-04022B

Meter, Indicator/Service Monitor

$146.99

$

In Stock, Qty 5

0

6

MTD 925-04165

Switch, Dbl. Pole - Neutral

$32.99

$

In Stock, only 4 left!

0

7

MTD 925-04174

Switch, PTO
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

8

MTD 925-04228

Switch, Ignition

$39.99

$

In Stock, Qty 20+

0

9

MTD 725-04363

Switch, Interlock, (NO-NC)

$15.99

$

In Stock, Qty 14

0

10

MTD 925-1303

Spring Switch

$6.49

$

In Stock, Qty 7

0

11

MTD 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

12

MTD 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

13

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

14

MTD 925-1707D

Battery 245 CCA (Dry)

$

$

Not available

16

MTD 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

17

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

18

MTD 726-0470

Cable Tie 19 x 8.39"

$4.99

$

Usually ships in 3-6 days

0

19

MTD 703-05894-0637

Bracket, Battery Holddown

$29.99

$

In Stock, only 2 left!

0

20

MTD 731-0511-5

Trim Strip 5" Lg.

$13.99

$

Usually ships in 3-6 days

0

21

MTD 738-04237A

Shoulder Screw #10-32 x .5

$6.49

$

In Stock, Qty 7

0

MTD 925-04621A

Wire Harness Assembly

Note: (Not Shown)

$185.99

$

Usually ships in 3-6 days

0
