RZT-50 (17BA5A7P709) - Cub Cadet 50" RZT Zero-Turn Mower, Briggs & Stratton Intek Cylinder Head, Crankshaft, Camshaft And Valves Parts Diagram

50" RZT Zero-Turn Mower, Briggs & Stratton Intek

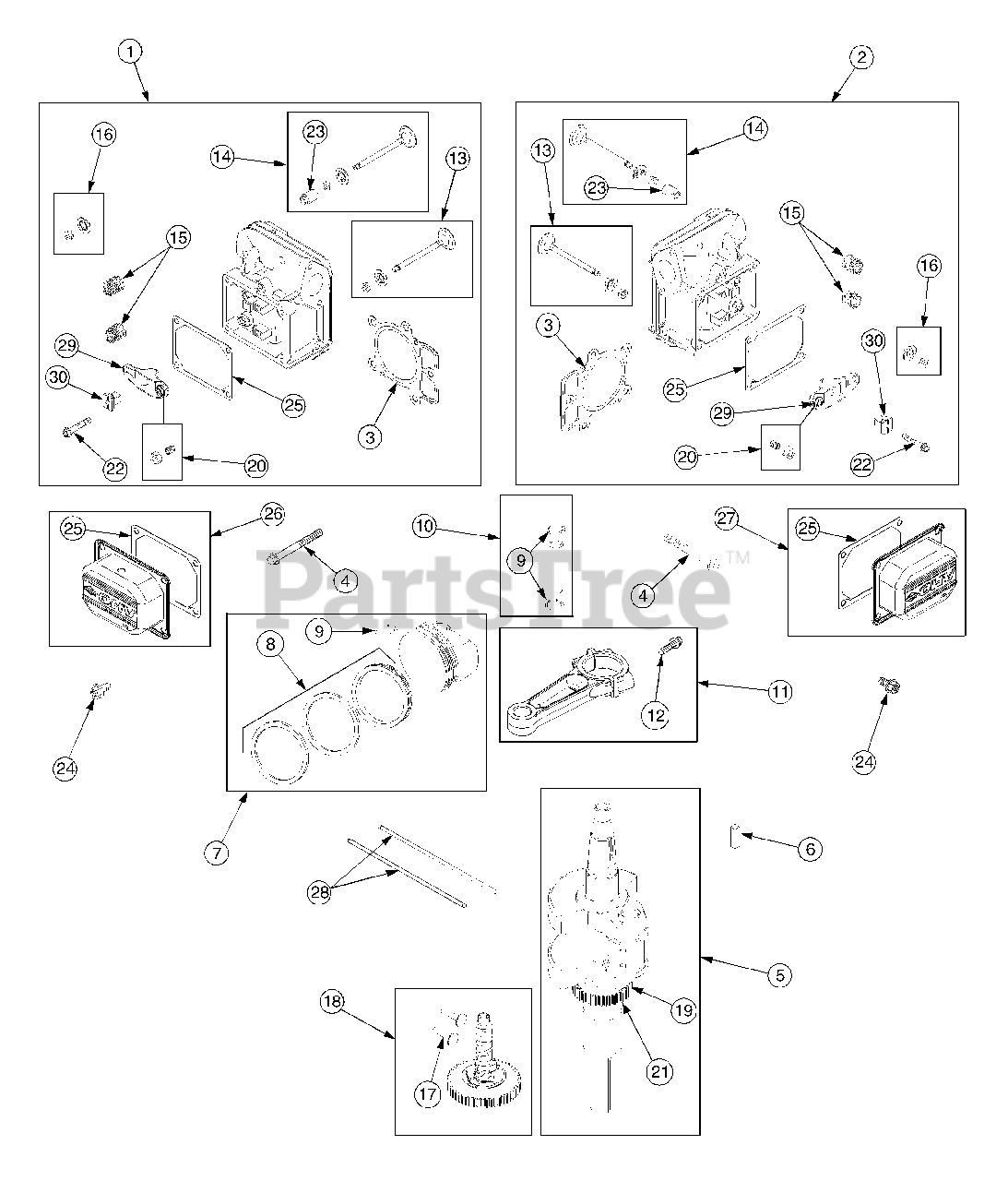

Cylinder Head, Crankshaft, Camshaft And Valves Parts Diagram

  • Title

1

Cub Cadet BS-693998

Head, Cylinder (Cylinder 1)
(Superseded to BS-84001918)

$235.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-693999

Head, Cylinder (Cylinder 2)
(Superseded to BS-796232)

$

$

Not available

3

Cub Cadet BS-690962

Gasket, Cylinder Head
(Superseded to BS-693997)

$24.99

$

In Stock, Qty 20+

0

4

Cub Cadet BS-690360

Screw, (Cylinder Head)
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet BS-790136

Crankshaft

$

$

Not available

6

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-499588

Piston Assembly (Standard)
(Superseded to BS-793647)

$137.99

$

In Stock, only 1 left!

0

Cub Cadet BS-499590

Piston Assembly, .020 Oversize
(Superseded to BS-793648)

$159.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-499604

Ring Set, Piston (Standard)

$69.99

$

In Stock, only 1 left!

0

Cub Cadet BS-499606

Ring Set, Piston .020 Oversize

$61.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-690975

Lock Ring, Piston Pin

$3.99

$

In Stock, Qty 10

0

10

Cub Cadet BS-690229

Pin, Piston

$17.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-699699

Rod, Connecting
(Superseded to BS-796209)

$59.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-690976

Screw (Connecting Rod)

$4.49

$

In Stock, Qty 17

0

13

Cub Cadet BS-499596

Valve, Exhaust
(Superseded to BS-697576)

$43.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-499597

Valve, Intake
(Superseded to BS-792200)

$25.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-690963

Spring, Valve

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet BS-499586

Keeper, Valve

$7.49

$

In Stock, Qty 18

0

17

Cub Cadet BS-690977

Tappet, Valve

$7.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-699748

Camshaft
(Superseded to BS-790562)

$

$

Not available

19

Cub Cadet BS-690979

Key, Timing

$3.49

$

In Stock, Qty 7

0

20

Cub Cadet BS-690083

Adjuster, Rocker Arm

$11.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-690980

Gear, Timing

$14.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-697890

Screw (Rocker Arm)

$3.49

$

In Stock, Qty 7

0

23

Cub Cadet BS-690968

Seal, Valve

$10.99

$

In Stock, Qty 20+

0

24

Cub Cadet BS-691127

Screw (Rocker Cover)

$4.49

$

In Stock, Qty 13

0

25

Cub Cadet BS-690971

Gasket, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-499599

Cover, Rocker (Cylinder 1)

$

$

Not available

27

Cub Cadet BS-499600

Cover, Rocker (Cylinder 2)

$15.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-690981

Rod, Push (Steel)
(Superseded to BS-597785)

$7.99

$

In Stock, Qty 20+

0

Cub Cadet BS-690982

Rod, Push (Aluminum)

$7.99

$

In Stock, Qty 20+

0

29

Cub Cadet BS-690972

Arm, Rocker

$12.99

$

In Stock, Qty 11

0

30

Cub Cadet BS-690973

Pivot, Rocker Arm

$

$

Not available
