RZT-50 (17AK2ACP897) - Columbia 50" Zero-Turn Mower (2010) Seat Adjustment Parts Diagram

50" Zero-Turn Mower

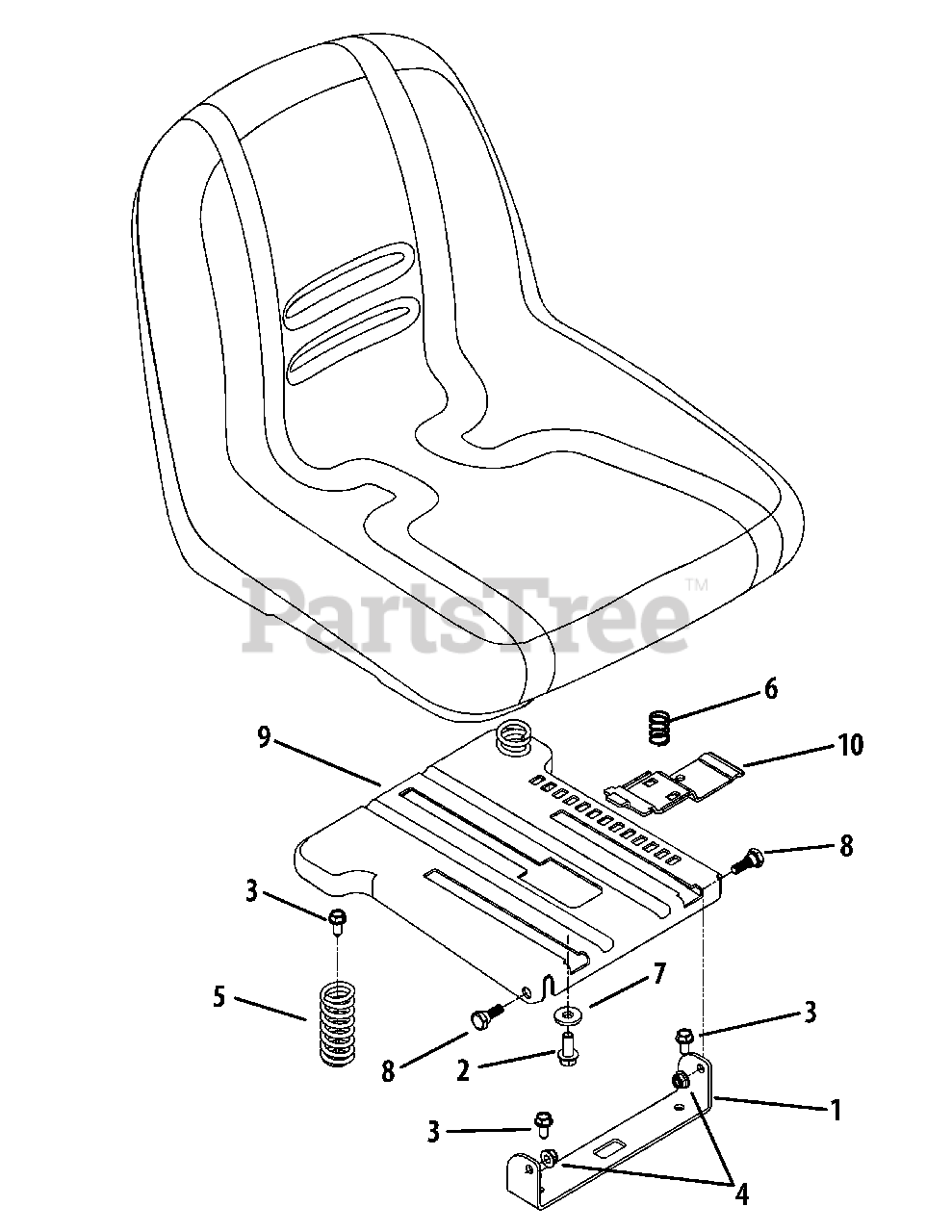

Seat Adjustment Parts Diagram

  • Title

$

$

Not available

2

White Outdoor 710-04482

Hex Flange Bolt 3/8-16 x .875

Note: Seat bolt stop, one used

$4.49

$

In Stock, Qty 16

0

3

White Outdoor 710-04484

Hex Washer Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 732-04035

Compression Spring

$10.99

$

In Stock, only 4 left!

0

6

White Outdoor 732-04563

Compression Spring

$5.49

$

In Stock, only 2 left!

0

7

White Outdoor 736-0258

Flat WAsher .385 x 1.0 x .135

$4.49

$

In Stock, only 3 left!

0

8

White Outdoor 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 783-06049-0606

Seat Mount Bracket

$68.99

$

Usually ships in 3-6 days

0

10

White Outdoor 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0
