RZT-50 (17AK2ACP897) - Columbia 50" Zero-Turn Mower (2010) Engine Connections Twin Parts Diagram

50" Zero-Turn Mower

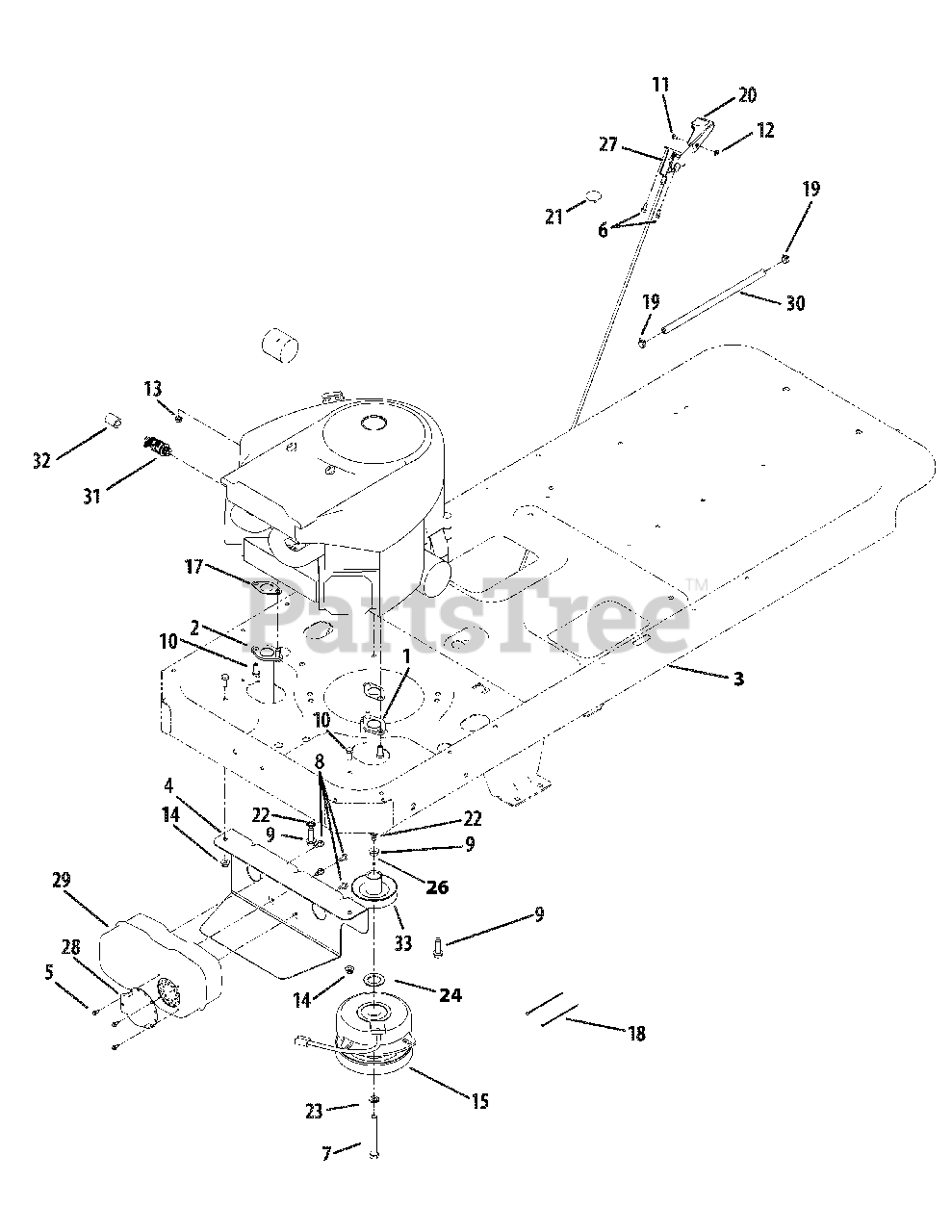

Engine Connections Twin Parts Diagram

  • Title

1

White Outdoor 603-04162

Exhaust Pipe RH

$89.99

$

In Stock, only 2 left!

0

2

White Outdoor 603-04163

Exhaust Pipe LH

$80.99

$

In Stock, only 1 left!

0

3

White Outdoor 603-04303C-0606

Frame Ass'y
(Superseded to 603-04680A-0606)

$

$

Not available

4

White Outdoor 703-05441A

Muffler Mtg. Bracket

$52.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

7

White Outdoor 710-04379A

Hex Cap Scr. 7/16-20 x 4.0

$6.49

$

In Stock, only 3 left!

0

8

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-04683

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

10

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

12

White Outdoor 712-0142

Hex Nut #8-32, 0.375

$4.49

$

In Stock, Qty 10

0

13

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

14

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 917-04552

Clutch Assembly, Electric PTO

$531.99

$

In Stock, only 3 left!

0

17

White Outdoor 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

18

White Outdoor 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

19

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

21

White Outdoor 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0148

L-Washer 3/8" ID (Ext. Tooth)

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

24

White Outdoor 736-0277

Flat Washer 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

26

737-0290

Grease

$

$

Not available

27

White Outdoor 746-04539

Throttle/Choke Cable 41.5" Lg.
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

28

White Outdoor 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

29

White Outdoor 751-0616B

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

30

White Outdoor 751-10349-13

Fuel Hose; Low Permeation, 8" Lg.

$17.99

$

In Stock, only 3 left!

0

31

White Outdoor 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

32

White Outdoor 751-3141-14

Extension Hose

$11.99

$

In Stock, Qty 7

0

33

White Outdoor 756-04376

Engine Pulley, Electric PTO

$44.99

$

In Stock, only 1 left!

0
