RZT-50 (17AK2ACP897) - Columbia 50" Zero-Turn Mower (2010) Controls & Deck Lift Parts Diagram

50" Zero-Turn Mower

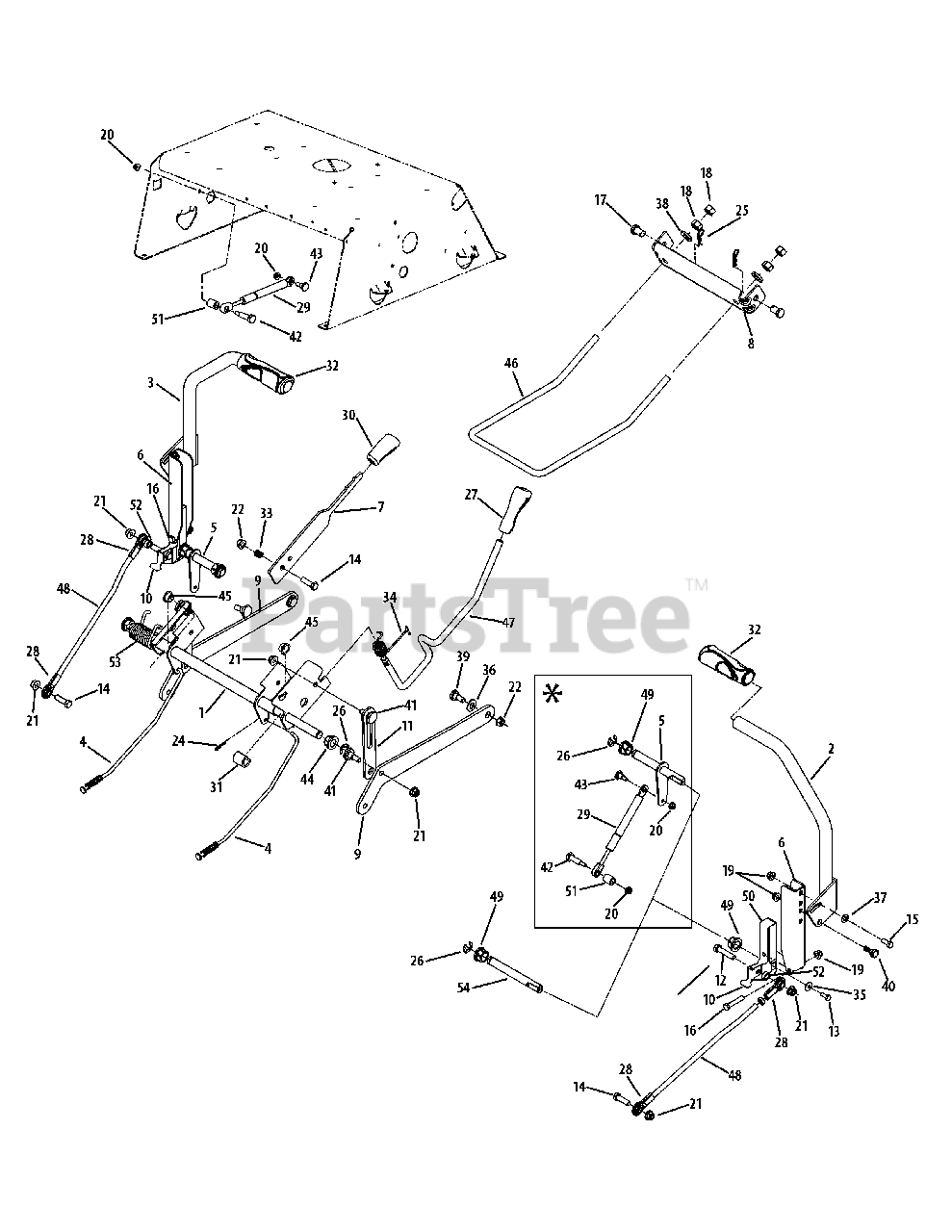

Controls & Deck Lift Parts Diagram

  • Title

1

White Outdoor 603-04160B

Shaft Assembly, Deck Lift
(Superseded to 603-04160C-0637)

Variations

White Outdoor 603-04160B-0637

DECK LIFT SHAFT ASSY BLACK - POWDER BLACK (0637)

$161.99

$

Usually ships in 3-6 days

0

$161.99

$

Usually ships in 3-6 days

0

2

White Outdoor 603-04322-0637

Lever, Lapbar, RH

$

$

Not available

3

White Outdoor 603-04324-0637

Lever, Lapbar, LH

$75.99

$

Usually ships in 3-6 days

0

4

White Outdoor 947-04065

Brake Rod

$39.99

$

In Stock, only 1 left!

0

5

White Outdoor 647-04099A

Control Shaft

$91.99

$

Usually ships in 3-6 days

0

6

White Outdoor 703-05387B

Lapbar Pivot Bracket

$28.99

$

In Stock, Qty 5

0

7

White Outdoor 703-05396A-0637

Brake Handle

$37.99

$

Usually ships in 3-6 days

0

8

White Outdoor 703-05414A-0606

Front Deck Hanger Bracket
(Superseded to 703-05414A-0637)

$66.99

$

Usually ships in 3-6 days

0

9

White Outdoor 703-05793A-0606

Deck Lift Arm
(Superseded to 703-05793A-0637)

$53.99

$

In Stock, Qty 7

0

10

White Outdoor 703-06096

Switch Actuator Bracket
(Superseded to 703-06096A)

$10.99

$

In Stock, only 2 left!

0

11

White Outdoor 703-06169-0637

Lift Link Plate

$16.99

$

In Stock, only 1 left!

0

12

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0433

Hex Bolt 1/4-20 x .625" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

17

White Outdoor 911-0332

Clevis Pin .50 x .78

$16.99

$

In Stock, Qty 14

0

18

White Outdoor 712-04243

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-04063

Hex. Flanged L-Nut 5/16-18 Gr. F,

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-04064

Hex. Flanged L-Nut Hex 1/4-20 Gr.

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-04065

Hex. Flanged L-Nut 3/8-16 Gr. F Ny

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 914-04023

Cotter Pin
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 716-0106

E-ring

$4.49

$

In Stock, Qty 12

0

27

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

28

White Outdoor 723-04035

Rod End

$36.99

$

In Stock, only 4 left!

0

29

White Outdoor 727-04141

Cylinder, Damper
(Superseded to 927-04141)

$104.99

$

In Stock, Qty 6

0

30

White Outdoor 731-04735

Handle Grip

$20.99

$

In Stock, only 1 left!

0

31

White Outdoor 731-05732

Spacer .62 x 1.0

$3.49

$

Usually ships in 3-6 days

0

32

731-0274

Hand Grip

$

$

Not available

33

White Outdoor 932-0334

Compression Spring
(Superseded to 732-0334)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

35

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 936-0272

Flat Washer .53 ID x 1.00 OD x .06
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

37

White Outdoor 936-0275

Flat Washer .34 ID x .688 OD x .065
(Superseded to 736-0275)

$

$

Not available

38

White Outdoor 736-3019

Flat Washer .531 ID x 1.0 OD

$5.99

$

In Stock, Qty 11

0

39

White Outdoor 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 938-0507B

Shoulder Screw .50 Dia.
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 938-0572

Shoulder Screw .375 x 1.16
(Superseded to 738-0572)

$

$

Not available

43

White Outdoor 938-0974

Shoulder Screw .375 x .38:1/4-20
(Superseded to 738-0974)

$

$

Not available

44

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 19

0

45

White Outdoor 741-3074

Flange Bearing .626 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 747-04401A

Deck Front Hanger Rod

$58.99

$

In Stock, only 1 left!

0

47

White Outdoor 747-04637

Deck Lift Handle Rod

$51.99

$

In Stock, only 1 left!

0

48

White Outdoor 747-05057

Lapbar Control Rod

$

$

Not available

49

White Outdoor 948-0227A

Hex Flange Bearing

$8.49

$

In Stock, Qty 12

0

50

White Outdoor 748-04169A

Control Hub

$47.99

$

Usually ships in 3-6 days

0

51

White Outdoor 750-04676

Spacer, .385 x .63 x .75

$20.99

$

In Stock, only 2 left!

0

52

White Outdoor 750-04776

Spacer, .380 x .625 x .265

$5.49

$

In Stock, only 3 left!

0

53

White Outdoor 732-04420

Torsion Spring (50" Deck Only)

$20.99

$

In Stock, only 1 left!

0

54

White Outdoor 747-04631

Control Shaft
(Superseded to 747-04226A)

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 731-04719A

Grip, Lapbar

Note: (Not Shown)

$24.99

$

In Stock, only 3 left!

0
