RZT-50 (17AK2ACP897) - Columbia 50" Zero-Turn Mower (2009) Mower Deck 50 Inch Parts Diagram

50" Zero-Turn Mower

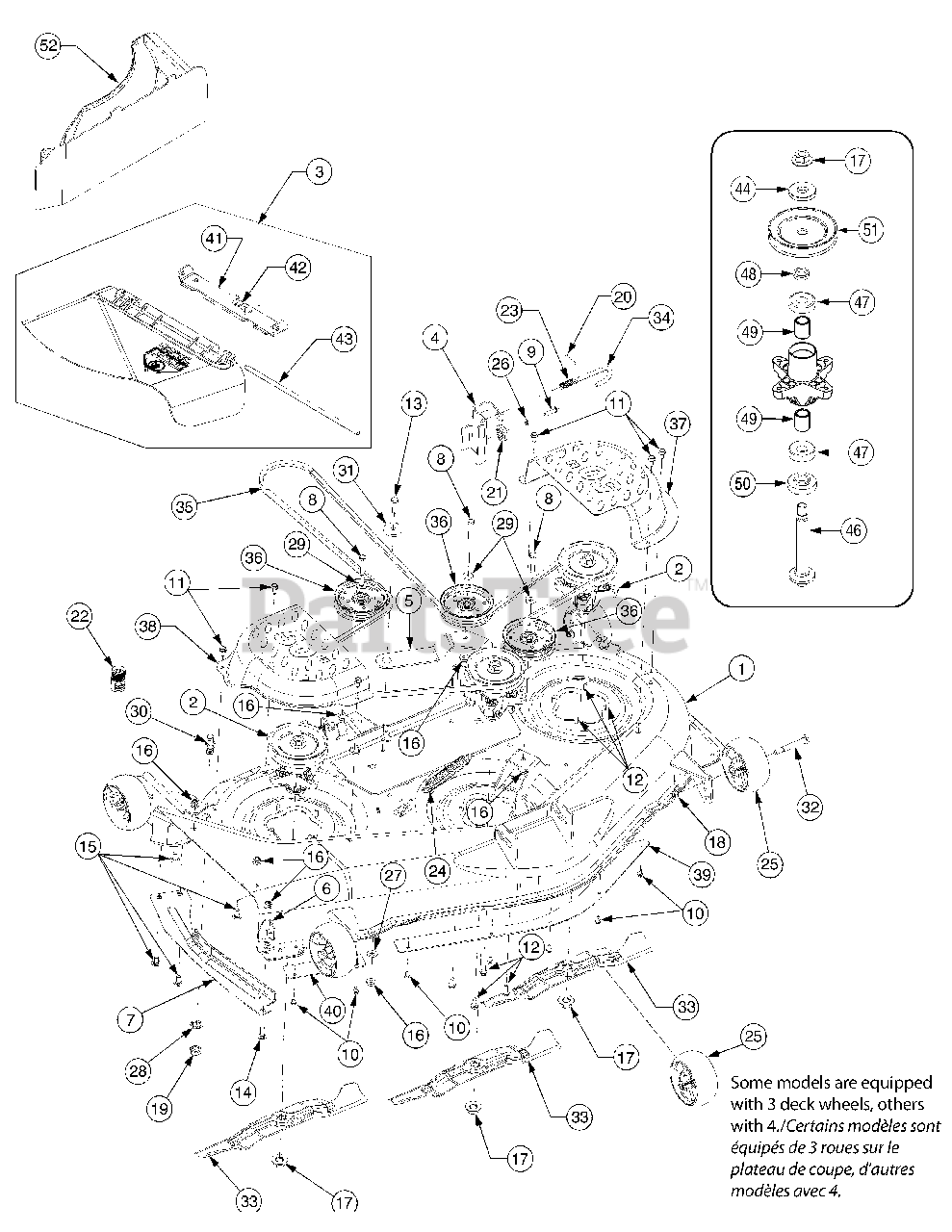

Mower Deck 50 Inch Parts Diagram

  • Title

1

White Outdoor 903-04328A-0606

Deck Housing
(Superseded to 903-04328C-0637)

$1128.99

$

Usually ships in 3-6 days

0

2

White Outdoor 918-04126A

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

White Outdoor 631-04070A

Discharge Chute Ass’y
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

4

White Outdoor 683-0254B-0606

Deck Adjustment Brack w/Weld Nut
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

5

White Outdoor 703-05825B-0637

Idler Arm
(Superseded to 703-05825C-0637)

$54.99

$

In Stock, only 3 left!

0

6

White Outdoor 703-3279-0606

Chute Stop Deflector
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

7

White Outdoor 703-3511A-0637

Guard, Finger
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0726

Hex Wash HD AB Scr 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

14

White Outdoor 710-3168

Carriage Bolt 3/8-16 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-3178

Short Neck Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

20

White Outdoor 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

22

White Outdoor 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

23

White Outdoor 932-0306A

Comp. Spring .531 OD x 1.75 Lg.

$8.49

$

In Stock, only 4 left!

0

24

White Outdoor 732-0459C

Extension Spring .94 OD x 6.74

$18.99

$

In Stock, only 3 left!

0

25

White Outdoor 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

26

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 736-0407

Cupped Washer .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

28

White Outdoor 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

29

White Outdoor 736-3072

Flat Washer .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

31

White Outdoor 738-04162A

Shoulder Spacer .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

32

White Outdoor 938-3056

Shoulder Screw, 1/2 Diameter x 2.5

$9.49

$

In Stock, Qty 20+

0

33

White Outdoor 942-04053C

Blade 17.9" Lg.

$28.99

$

In Stock, Qty 20+

0

34

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

35

White Outdoor 954-04044A

V-Belt Type A Sec x 134

$63.99

$

In Stock, Qty 20+

0

36

White Outdoor 756-04129

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

37

White Outdoor 783-04399-0606

LH Belt Cover
(Superseded to 783-04399-0637)

$95.99

$

In Stock, only 2 left!

0

38

White Outdoor 783-04400-0606

RH Belt Cover
(Superseded to 783-04400)

$95.99

$

Usually ships in 3-6 days

0

39

White Outdoor 783-04414A-0637

Deck Skirt Center
(Superseded to 783-04414A)

$35.99

$

Usually ships in 3-6 days

0

40

White Outdoor 783-04415-0637

Deck Shirt RH

$30.99

$

In Stock, only 3 left!

0

41

White Outdoor 783-05030

Chute Mounting Bracket

$29.99

$

In Stock, Qty 5

0

42

White Outdoor 732-04372

Tortion Spring

$10.99

$

In Stock, Qty 9

0

43

White Outdoor 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

44

White Outdoor 736-0315

Flat Washer .76 ID x 1.5 OD x .12

$6.99

$

In Stock, Qty 6

0

45

White Outdoor 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 738-1010A

Spindle Shaft 5.75 Lg.

$46.99

$

In Stock, only 2 left!

0

47

White Outdoor 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

48

White Outdoor 748-0160A

Spacer .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

49

White Outdoor 750-1000

Spacer .080 x 1.10 x 1.322" Lg.

$4.49

$

In Stock, Qty 7

0

50

White Outdoor 750-1349A

Spacer .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

51

White Outdoor 756-04216

V-Type Pulley, 5.29

$33.99

$

In Stock, only 1 left!

0

52

White Outdoor 731-04651

Mulching Plug

$78.99

$

In Stock, only 3 left!

0
