RZT-50 (17AK2ACP597) - Columbia 50" Zero-Turn Mower (2008) Mower Deck RZT50 Parts Diagram

50" Zero-Turn Mower

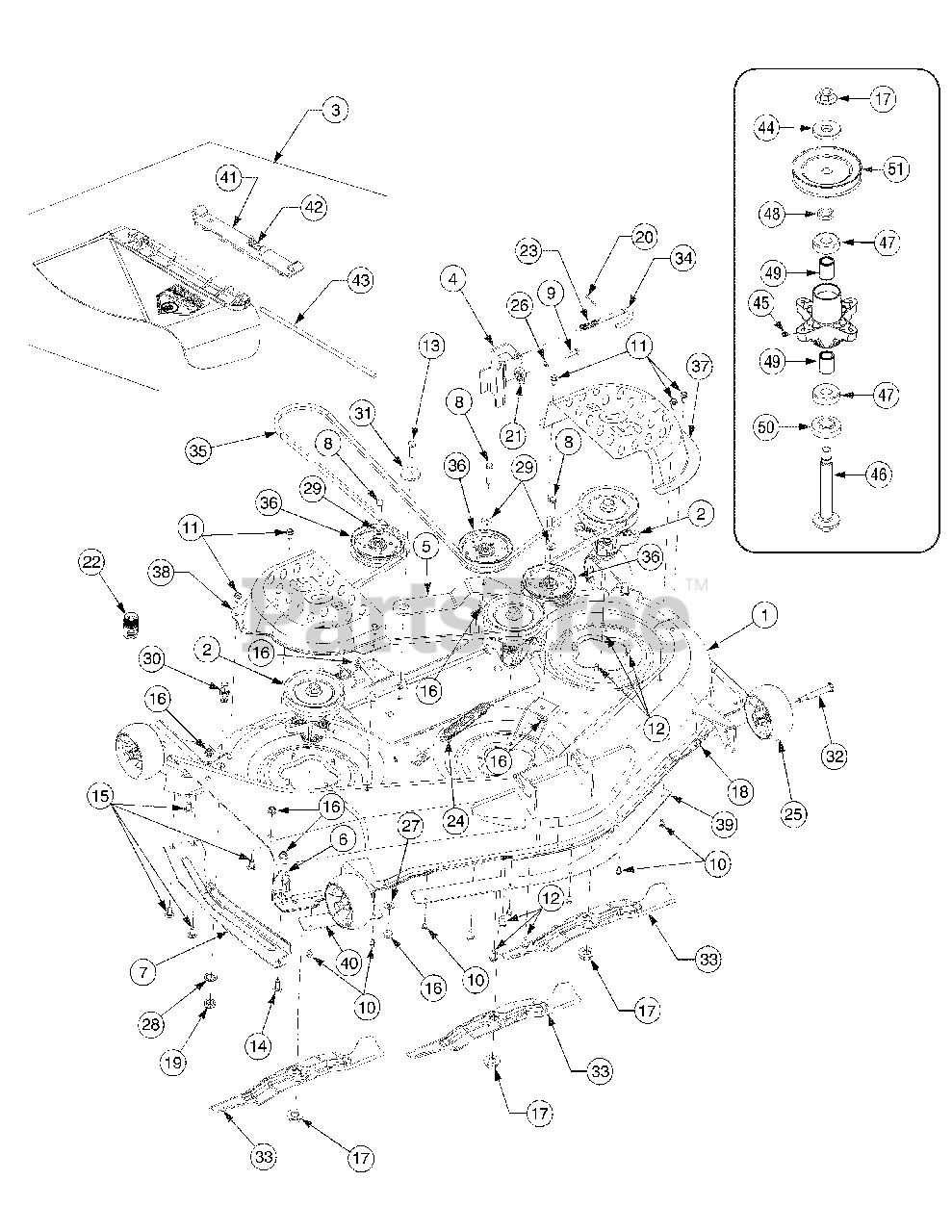

Mower Deck RZT50 Parts Diagram

  • Title
1

MTD 903-04328

Deck Housing
(Superseded to 903-04328C)

Variations

MTD 903-04328-0637

Mower Deck Shell, 42" - POWDER BLACK (0637)

$1128.99

$

Usually ships in 3-6 days

0

MTD 903-04328-0638

Mower Deck Shell, 42" - MTD/TROY-BILT RED (0638)

$1128.99

$

Usually ships in 3-6 days

0

MTD 903-04328-0650

Mower Deck Shell, 50" - RED METALLIC (0650)

$1128.99

$

Usually ships in 3-6 days

0

MTD 903-04328-0716

SHELL-50" DECK - CUB YELLOW-99 (0716)

$1128.99

$

Usually ships in 3-6 days

0

$913.99

$

Usually ships in 3-6 days

0

2

MTD 918-04125B

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

MTD 631-04070A

Discharge Chute Ass’y
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

4

MTD 683-0254B

Deck Adjustment Brack w/Weld Nut

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

5

MTD 703-05825B

Idler Arm

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-05825B-4021

Idler Arm Bracket - CUB YELLOW 2 (4021)

$54.99

$

In Stock, only 2 left!

0

MTD 703-05825B-0637

Idler Arm Bracket - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

MTD 703-05825B-0638

Idler Arm Bracket - MTD/TROY-BILT RED (0638)

$54.99

$

In Stock, only 2 left!

0

MTD 703-05825B-0691

BRACKET-IDLER ARM - BLACK JACK (0691)

$54.99

$

In Stock, only 2 left!

0

MTD 703-05825B-4033

Idler Arm Bracket - FLINT MICA (4033)

$54.99

$

In Stock, only 2 left!

0

MTD 703-05825B-0650

BRACKET-IDLER ARM - RED METALLIC (0650)

$

$

Not available

$43.99

$

Usually ships in 3-6 days

0

6

MTD 703-3279

Chute Stop Deflector

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

7

MTD 703-3511B-0637

Guard, Finger

$69.99

$

In Stock, Qty 20+

0

8

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

10

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0726

Hex Wash HD AB Scr 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-3168

Carriage Bolt 3/8-16 x 1" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-3178

Short Neck Car riage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

MTD 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

19

MTD 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

20

MTD 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

21

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

22

MTD 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

23

MTD 932-0306A

Comp. Spring .531 OD x 1.75 Lg.

$8.49

$

In Stock, only 2 left!

0

24

MTD 732-0459C

Extension Spring .94 OD x 6.74

$18.99

$

In Stock, only 3 left!

0

25

MTD 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

26

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

27

MTD 736-0407

Cupped Washer .45 x 1.0 x .062

$3.99

$

In Stock, Qty 11

0

28

MTD 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-3072

Flat Washer .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

30

MTD 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

31

MTD 738-04162C

Shoulder Spacer .884 x .190

$13.99

$

In Stock, Qty 20+

0

32

MTD 938-3056

Shoulder Screw, 1/2 Diameter x 2.5

$9.49

$

In Stock, Qty 20+

0

33

MTD 942-04053C

Blade 17.9" Lg.

$28.99

$

In Stock, Qty 20+

0

34

MTD 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

35

MTD 954-04044A

V-Belt Type A Sec x 134

$63.99

$

In Stock, Qty 20+

0

36

MTD 756-04129C

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

37

MTD 783-04399

LH Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04399-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-0606

Belt Cover, LH Orange - MAJESTIC ORANGE (0606)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-0650

Belt Cover, LH - RED METALLIC (0650)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-0691

Belt Cover, LH Black - BLACK JACK (0691)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-0716

Belt Cover, LH - CUB YELLOW-99 (0716)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-4008

COVER-BELT LH - WINE RED (4008)

$71.99

$

In Stock, only 1 left!

0

MTD 783-04399-4021

Belt Cover, LH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-4033

Belt Cover, LH Flint - FLINT MICA (4033)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-4044

COVER-BELT LH - CRAFTSMAN RED (4044)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$95.99

$

In Stock, only 2 left!

0

MTD 783-04399-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

$95.99

$

In Stock, only 2 left!

0

38

MTD 783-04400

RH Belt Cover

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04400-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$95.99

$

In Stock, only 4 left!

0

MTD 783-04400-0606

Belt Cover, RH Orange - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

MTD 783-04400-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$95.99

$

In Stock, only 4 left!

0

MTD 783-04400-0638

COVER-BELT RH - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 783-04400-0650

COVER-BELT RH - RED METALLIC (0650)

$88.99

$

Usually ships in 3-6 days

0

MTD 783-04400-4033

COVER-BELT RH - FLINT MICA (4033)

$95.99

$

Usually ships in 3-6 days

0

MTD 783-04400-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$95.99

$

Usually ships in 3-6 days

0

MTD 783-04400-4008

COVER-BELT RH - WINE RED (4008)

$95.99

$

Usually ships in 3-6 days

0

MTD 783-04400-0691

Belt Cover, RH Black - BLACK JACK (0691)

$

$

Not available

MTD 783-04400-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04400-4044

COVER-BELT RH - CRAFTSMAN RED (4044)

$

$

Not available

$95.99

$

Usually ships in 3-6 days

0

39

MTD 783-04414A

Deck Skirt Center

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$35.99

$

In Stock, only 1 left!

0

MTD 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$35.99

$

Usually ships in 3-6 days

0

MTD 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

40

MTD 783-04415

Deck Shirt RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$30.99

$

In Stock, only 1 left!

0

MTD 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$30.99

$

In Stock, Qty 5

0

MTD 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$30.99

$

In Stock, only 1 left!

0

MTD 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$30.99

$

Usually ships in 3-6 days

0

MTD 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$30.99

$

In Stock, only 3 left!

0

MTD 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

41

MTD 783-05030

Chute Mounting Bracket

$29.99

$

In Stock, Qty 5

0

42

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

43

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

44

MTD 736-0315

Flat Washer .76 ID x 1.5 OD x .12

$6.99

$

In Stock, Qty 6

0

45

MTD 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

46

MTD 738-1010A

Spindle Shaft 5.75 Lg.

$46.99

$

In Stock, only 2 left!

0

47

MTD 941-0919A

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

48

MTD 748-0160A

Spacer .79 x 1.25 x .175

$6.99

$

In Stock, only 3 left!

0

49

MTD 750-1000

Spacer .080 x 1.10 x 1.322" Lg.

$4.49

$

In Stock, Qty 7

0

50

MTD 750-1349A

Spacer .79 x 1.82 x .55

$13.99

$

In Stock, only 3 left!

0

51

MTD 731-04651

Spindle Pulley

$78.99

$

In Stock, only 4 left!

0
